Modular Systems 404092 Modular System Dishwasher Basket Trolley 6 Tray

Modular Systems 404092 Dishwasher Basket Trolley 6 Tray

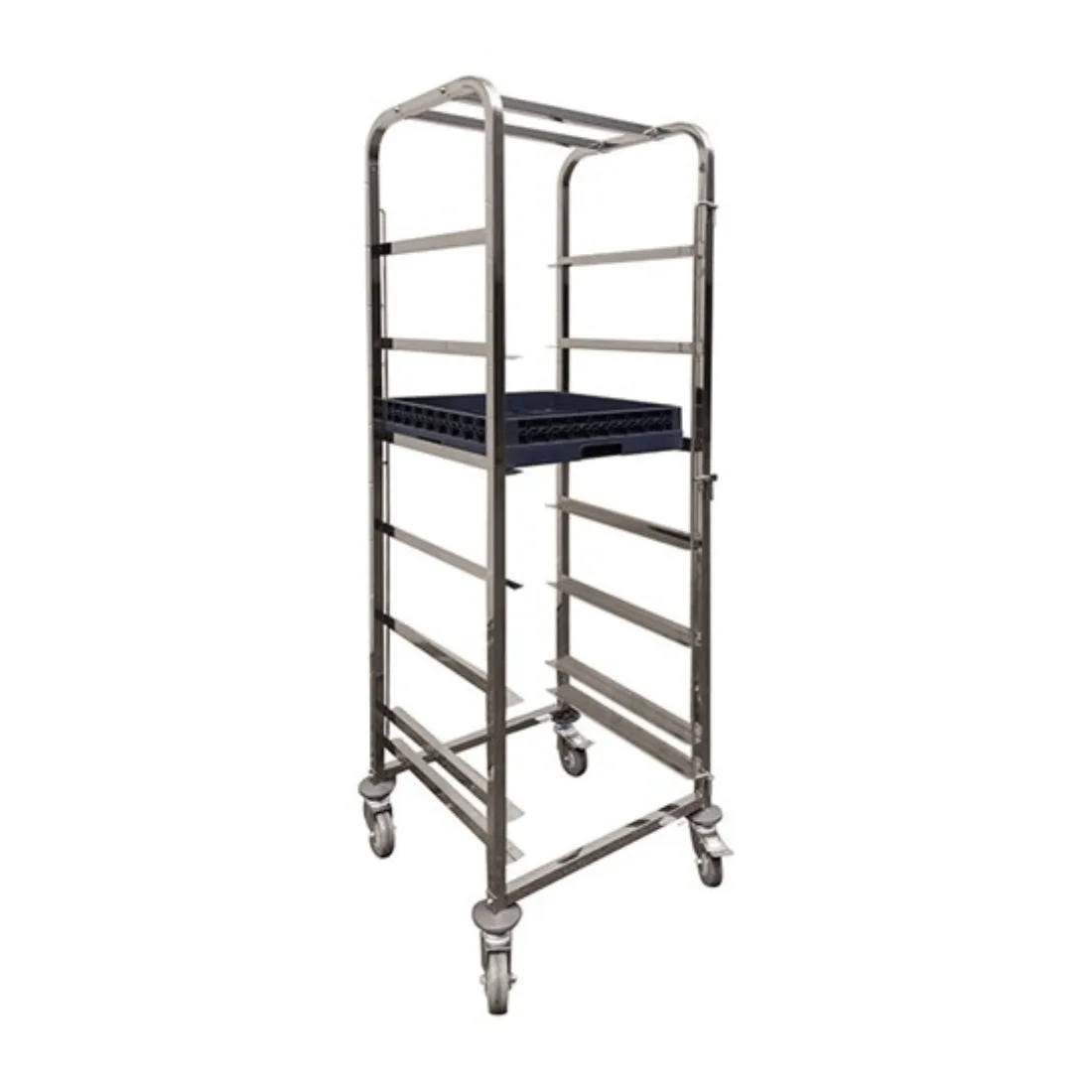

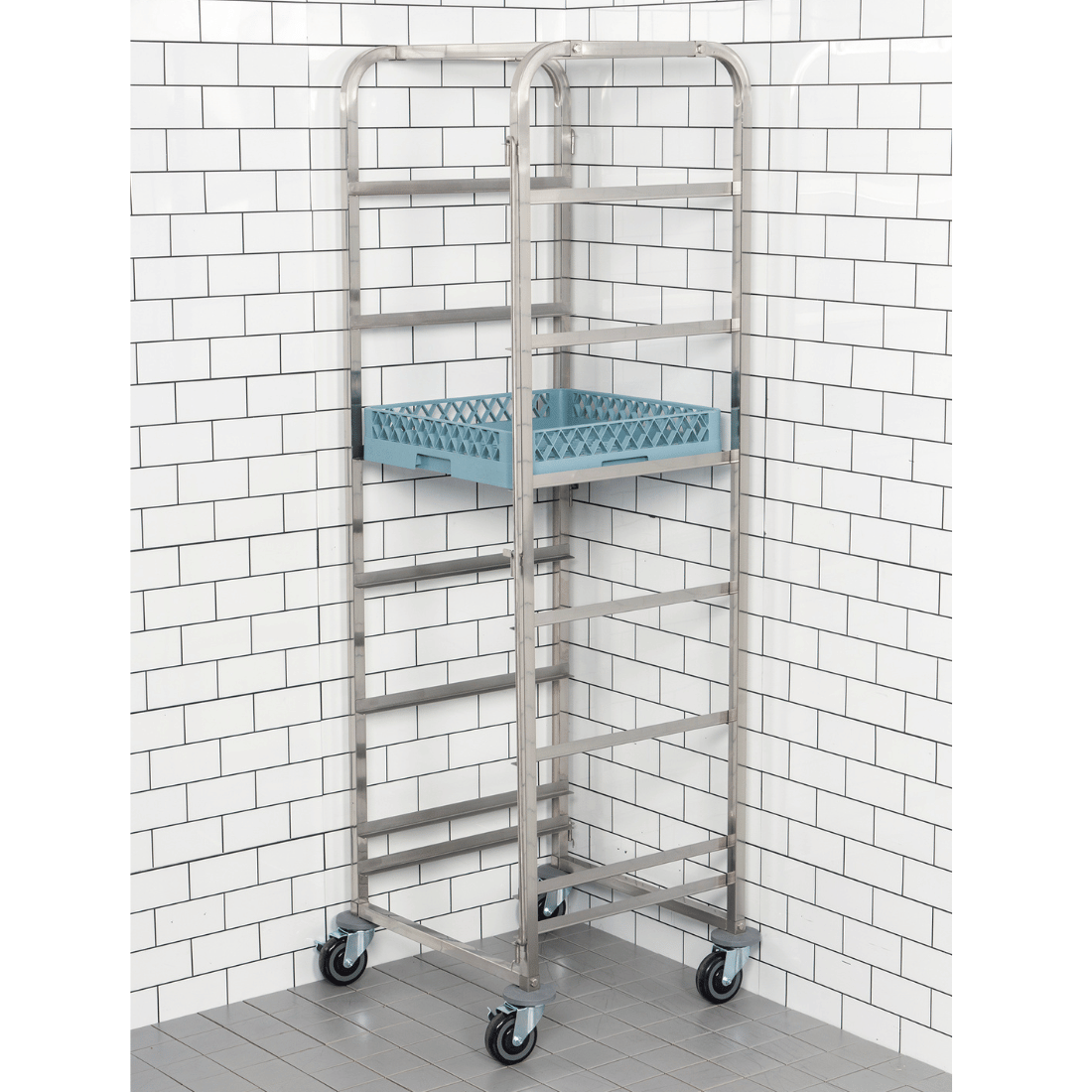

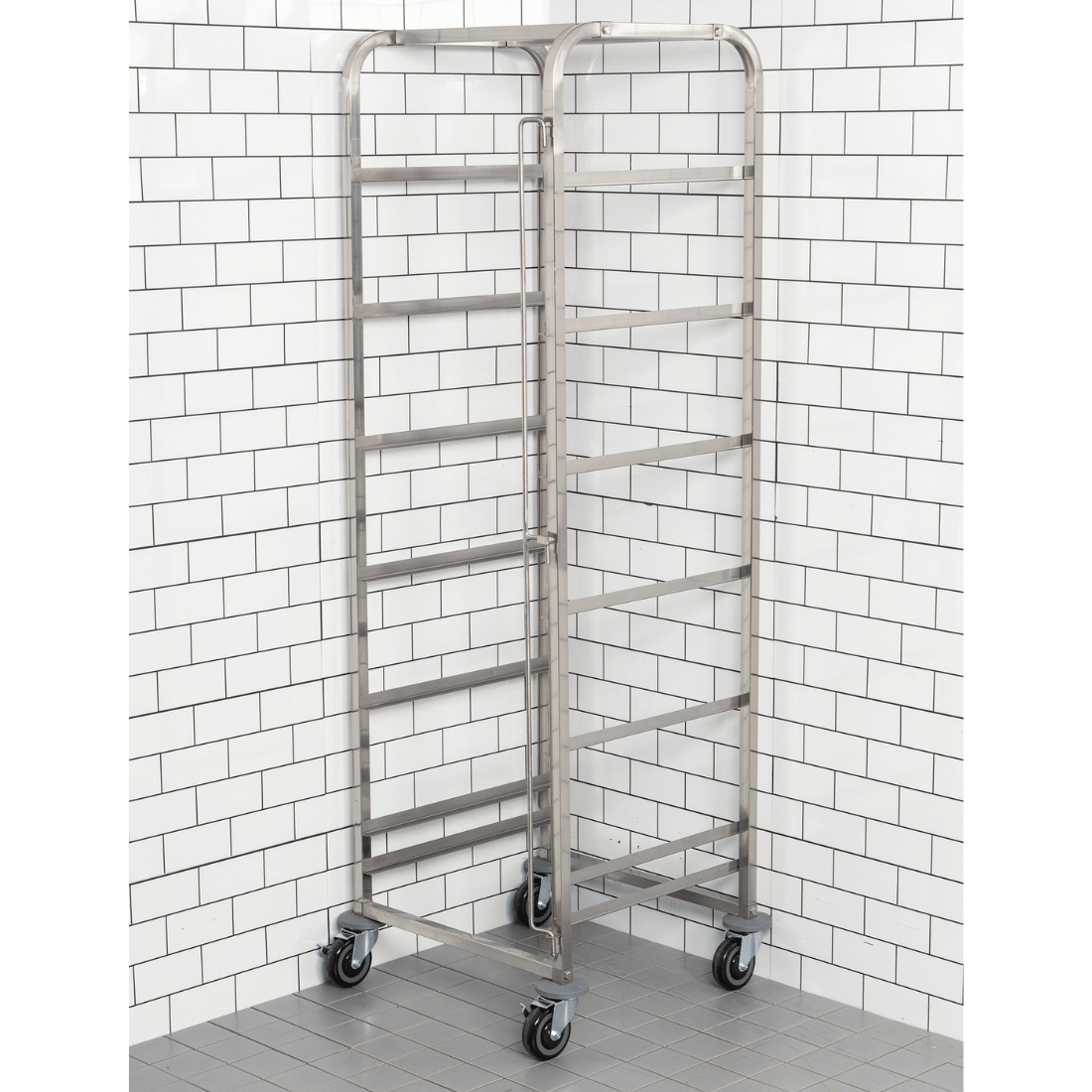

The Modular Systems 404092 is a commercial dishwasher basket trolley designed to streamline the movement and storage of dishwasher baskets in busy kitchens, cafeterias, and food service operations. Constructed from stainless steel tubing and rail, this trolley holds up to six trays and arrives flat packed for straightforward assembly and easy freight handling.

Built to withstand the demands of high-volume warewashing environments, the trolley features 100mm castors for smooth mobility across kitchen floors, with two castors fitted with brakes to keep it stationary when loading or unloading. Castor bumpers protect surrounding cabinetry and walls, while safety rods ensure baskets remain securely in place during transit between the wash area and service stations.

Key Benefits

• Holds six dishwasher baskets at once, reducing the number of trips between the dishwash area and service stations to improve workflow efficiency.
• Two brake castors allow the trolley to be locked in position during loading and unloading, improving safety and stability in fast-paced environments.
• 100mm castors provide smooth, effortless movement across kitchen floors even when the trolley is fully loaded.
• Castor bumpers protect walls, cabinetry and equipment from impact damage during transit through tight kitchen spaces.
• Safety rods keep dishwasher baskets securely contained on the trolley, preventing accidental falls and breakage of glassware or crockery.
• Stainless steel construction resists corrosion and withstands the wet, high-temperature conditions typical of commercial dishwashing areas.
• Flat-packed delivery reduces freight costs and makes the unit easy to store prior to assembly.
• 24-month parts-only warranty provides confidence in long-term reliability for commercial kitchen operators.

Key Features

• 6 tray capacity to accommodate a full complement of dishwasher baskets in a single load.
• Frame constructed from 1.0mm stainless steel tubing in a 25x25mm profile for a lightweight yet sturdy structure.
• 1.2mm stainless steel rail for added rigidity and basket support.
• Safety rods included to retain baskets securely on the trolley during movement.
• Four 100mm castors for easy manoeuvrability, with two fitted with brakes for secure stationary positioning.
• Castor bumpers included to protect surrounding surfaces and equipment.
• Arrives flat packed for cost-effective freight and compact pre-assembly storage.
• Overall dimensions: 550mm wide x 520mm deep x 1800mm high.
• Unit weight: 18kg.
• 24 months parts-only warranty.

Specifications

• Width (mm): 550
• Depth (mm): 520
• Height (mm): 1800
• Weight (kg): 18
• Packed Width (mm): 580
• Packed Depth (mm): 1715
• Packed Height (mm): 80
• Warranty (months): 24 Months Parts Only Warranty
