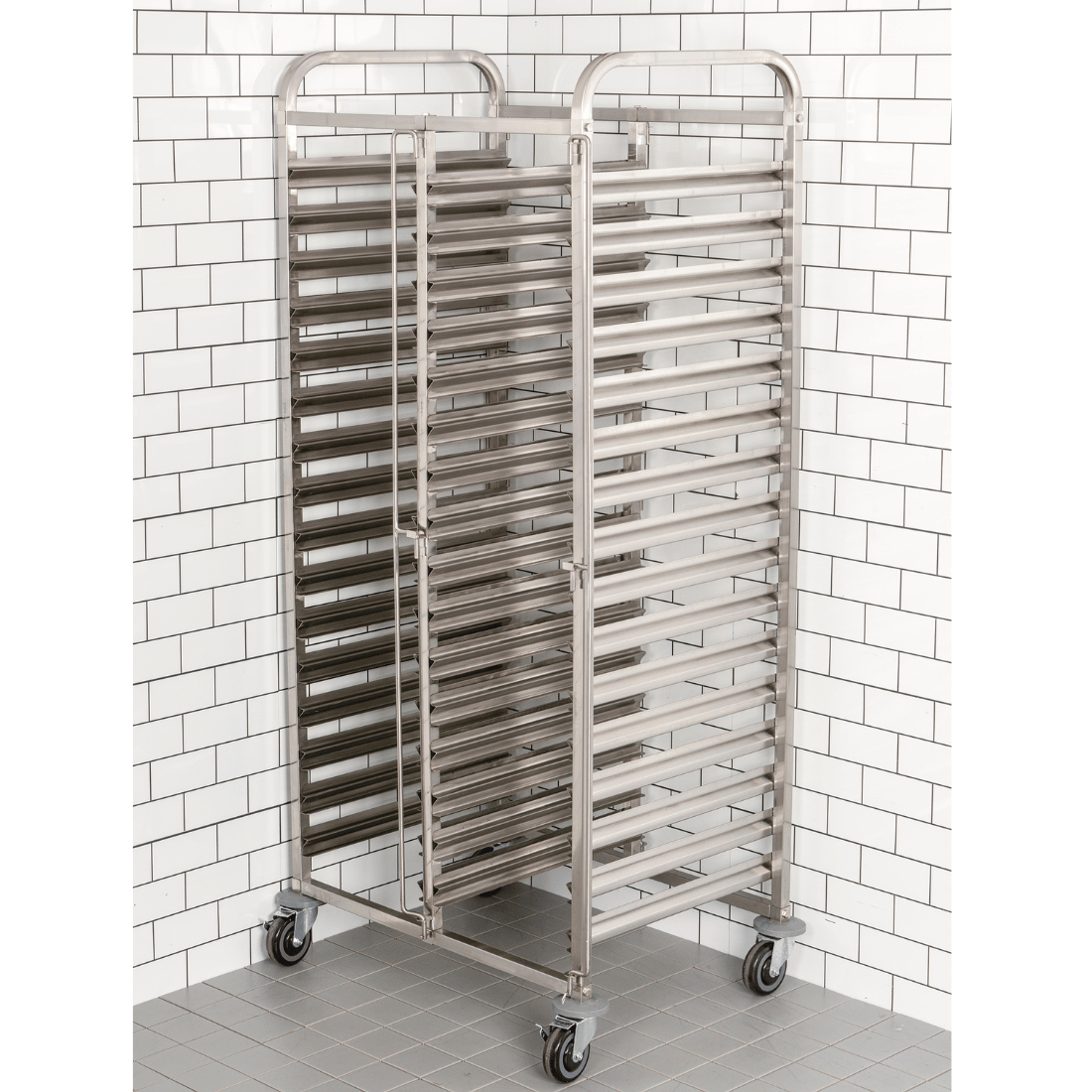

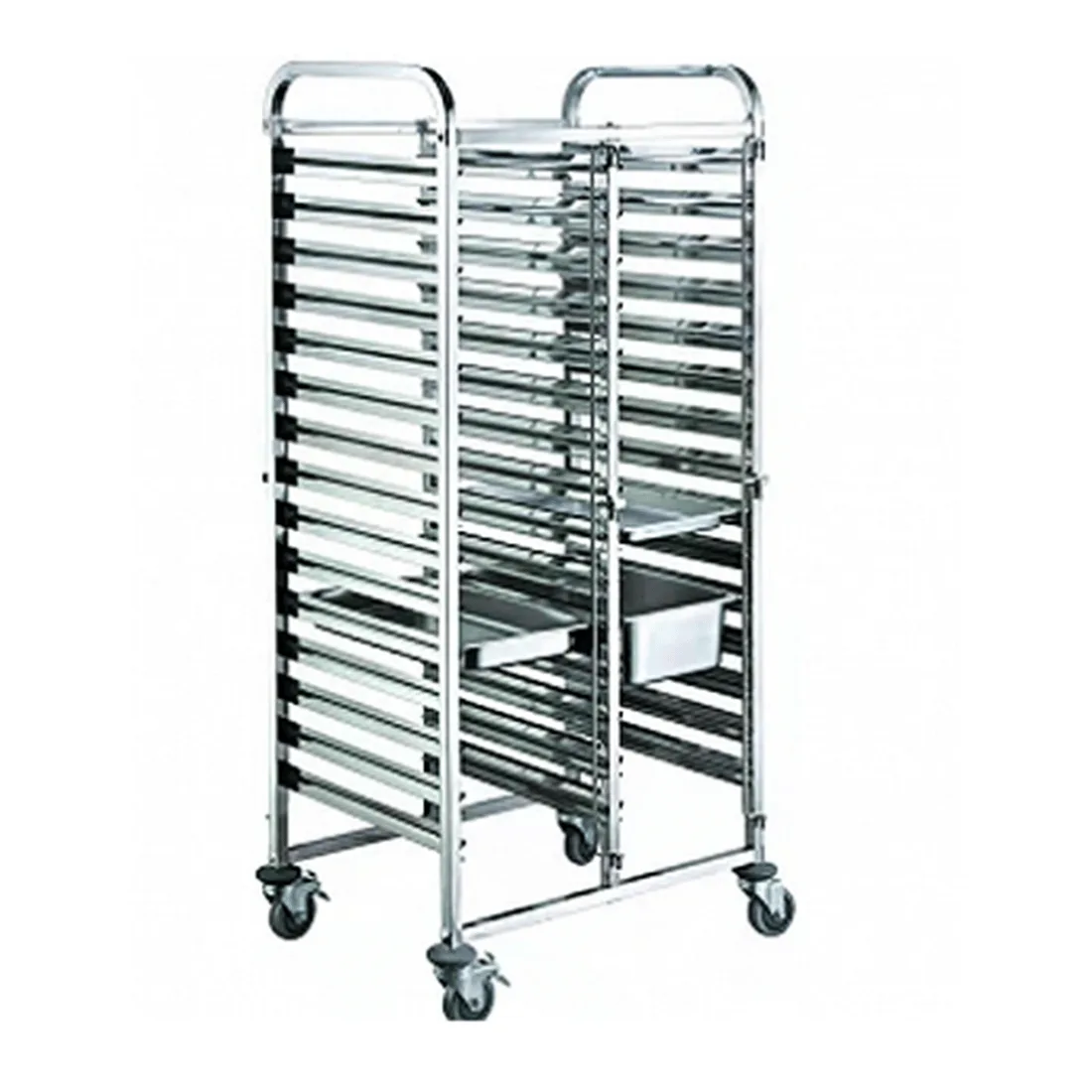

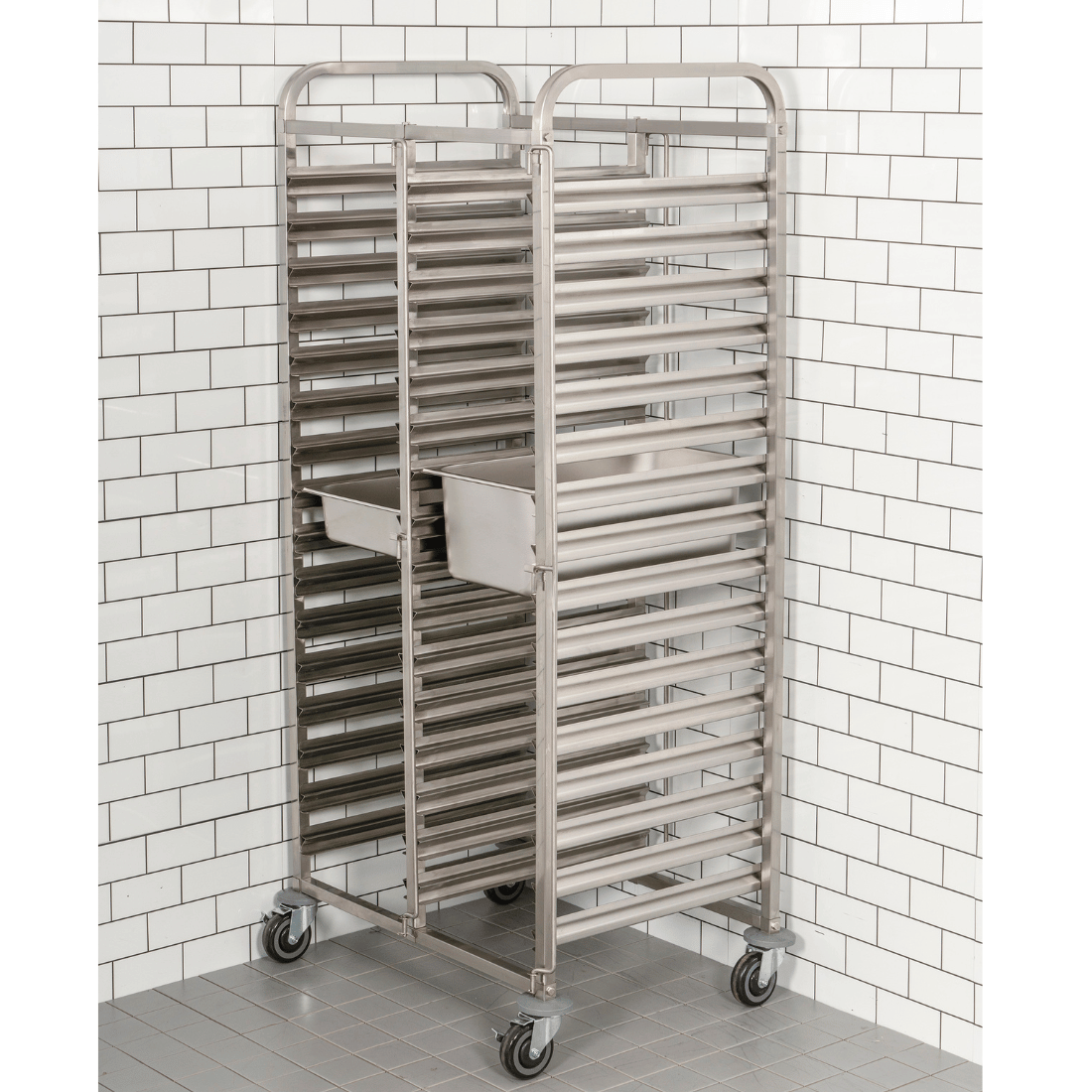

Modular Systems 404090 Modular System Gastronorm pan trolley 32 Pan

Modular Systems 404090 Gastronorm Pan Trolley 32 Pan Capacity

The Modular Systems 404090 is a heavy-duty gastronorm pan trolley designed to store and transport up to 32 full-size gastronorm pans in a busy commercial kitchen environment. Configured as 16 rows of 2 pans, the trolley is constructed from 201-grade stainless steel tubing and rail for food-safe durability, and arrives flat-packed for straightforward assembly and easy delivery.

Fitted with 100mm outer diameter castors, two of which feature brakes for secure stationary positioning, this trolley moves freely across kitchen floors and locks in place when needed. Castor bumpers protect surrounding cabinetry and equipment, while safety rods keep pans securely seated during transit, making this an efficient and safe solution for high-volume food preparation and service operations.

Key Benefits

• Holds 32 gastronorm pans in a 16 x 2 configuration, maximising pan storage within a compact footprint for high-volume kitchens
• Safety rods retain pans securely during movement, reducing the risk of spills or accidents when transporting loaded pans across the kitchen
• Two brake castors allow the trolley to be locked in position during loading and unloading, improving safety and workflow stability
• Castor bumpers protect nearby benches, fridges and equipment from impact damage during everyday use
• 201 stainless steel construction throughout ensures food-safe, corrosion-resistant performance in wet and humid kitchen environments
• 100mm OD castors provide smooth, easy rolling across commercial kitchen floor surfaces even when the trolley is fully loaded
• Flat-packed delivery simplifies freight, storage of the unit prior to assembly, and on-site setup
• Backed by a 24-month parts-only warranty for added peace of mind in commercial operations

Key Features

• 32 pan total capacity arranged as 16 rows of 2 gastronorm pans
• Frame constructed from 1.0mm 201-grade stainless steel tubing
• 25 x 25mm rails constructed from 1.2mm 201-grade stainless steel
• Safety rods included to secure pans during movement
• Four 100mm outer diameter castors, two fitted with brakes
• Castor bumpers included to protect surrounding equipment and cabinetry
• Flat-packed for simplified delivery and on-site assembly
• Overall dimensions: 740mm wide x 550mm deep x 1735mm high
• Weight: 48kg
• 24-month parts-only warranty

Specifications

• Width (mm): 740
• Depth (mm): 550
• Height (mm): 1735
• Weight (kg): 48
• Packed Width (mm): 610
• Packed Depth (mm): 1650
• Packed Height (mm): 160
• Warranty (months): 24 Months Parts Only Warranty
