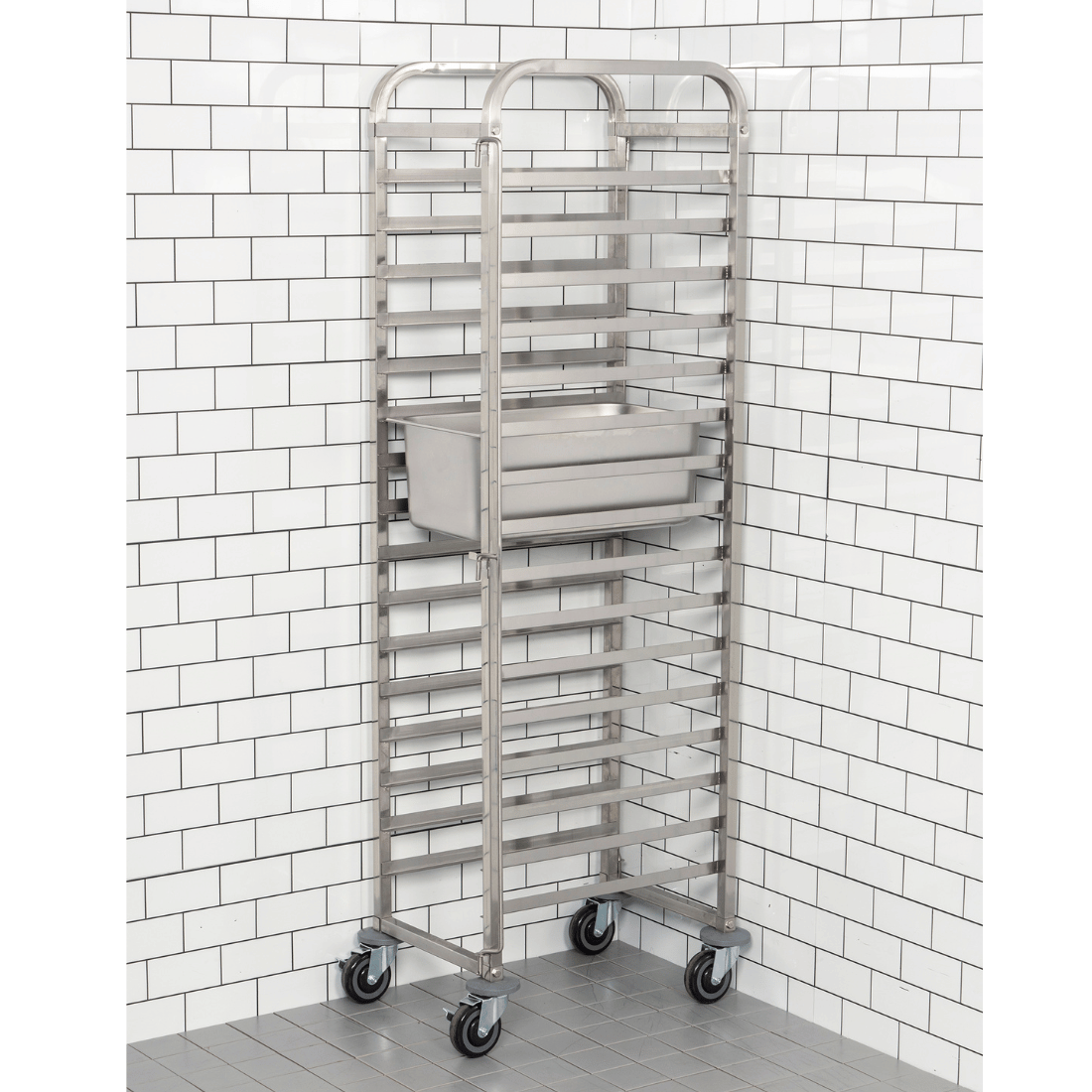

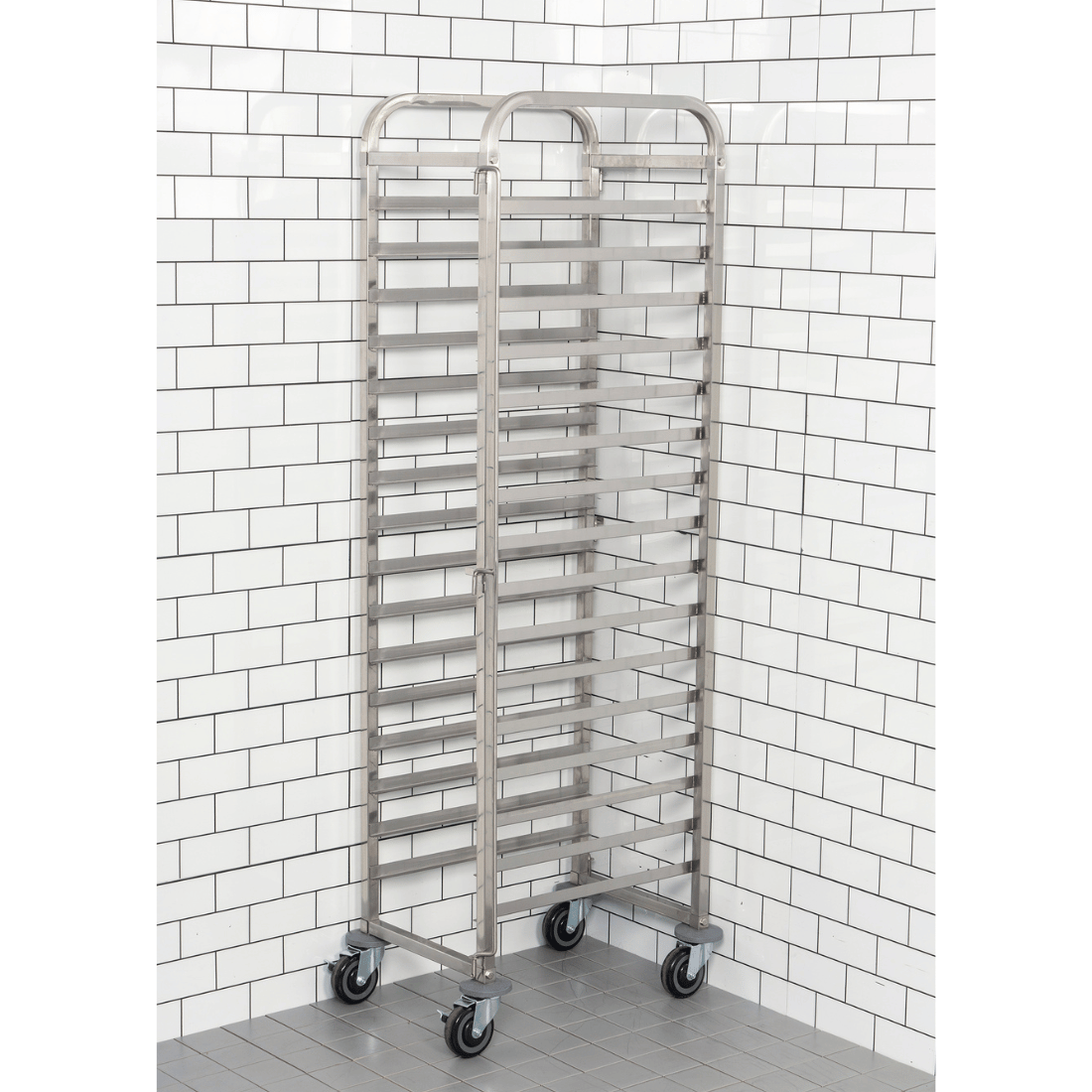

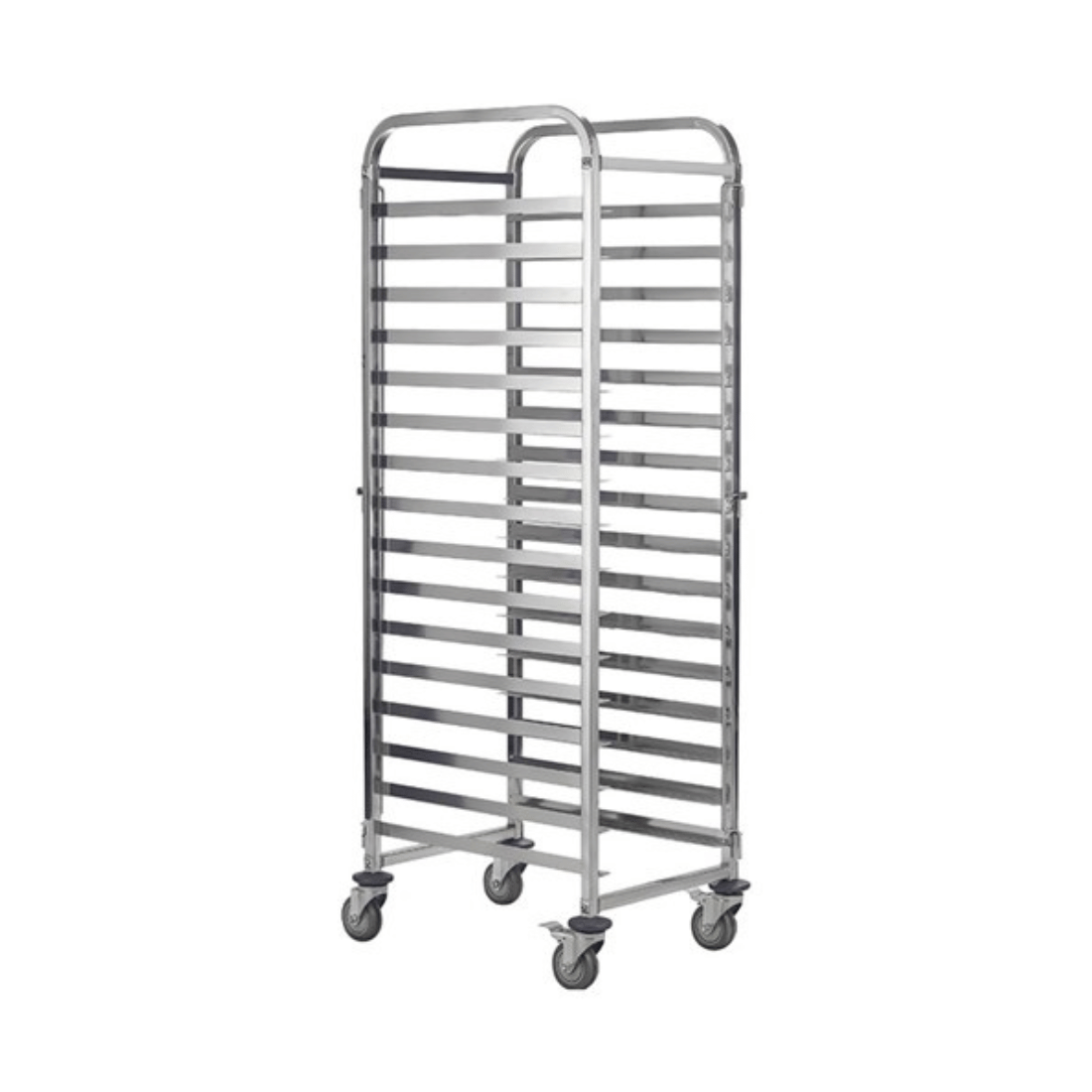

Modular Systems 393577 Modular System Gastronorm pan trolley 16 Pan

Modular Systems 393577 Gastronorm Pan Trolley 16 Pan

The Modular Systems 393577 is a 16-pan gastronorm trolley designed to streamline the storage, transport and organisation of GN pans in busy commercial kitchens, catering operations and food service venues. Built from 201 stainless steel throughout, it offers a robust and food-safe solution that stands up to the rigours of daily professional use.

Supplied flat-packed for easy freight and on-site assembly, the trolley arrives with all key safety and protection components included. Its compact footprint of 380 x 550mm and tall 1735mm height make efficient use of floor space while keeping a large number of pans readily accessible and neatly organised.

Key Benefits

• Holds up to 16 gastronorm pans, reducing clutter and keeping pans organised and immediately accessible during service.
• Stainless steel construction throughout ensures the trolley is food-safe, corrosion-resistant and easy to clean.
• 100mm diameter castors allow smooth movement across kitchen floors, with two locking castors providing secure positioning when stationary.
• Caster bumpers protect walls, equipment and cabinetry from impact damage during transport.
• Safety rods prevent pans from sliding out accidentally, reducing the risk of spills and breakages.
• Flat-packed delivery keeps freight costs down and makes storage of the unassembled unit straightforward before installation.
• Compact 380mm width fits neatly into tight kitchen corridors and storage areas without obstructing workflow.
• Compatible with standard gastronorm sizing, making it suitable for use alongside GN benches, bain maries, blast chillers and cool rooms.

Key Features

• 16 gastronorm pan capacity
• Unit dimensions: 380mm wide x 550mm deep x 1735mm high
• Frame tubing: 1.0mm thick 201 stainless steel, 25 x 25mm profile
• Pan rails: 1.2mm thick 201 stainless steel
• Safety rods included to retain pans securely in the trolley
• 100mm outer diameter castors, with two castors fitted with brakes for secure stationary positioning
• Caster bumpers included to protect surrounding surfaces
• Supplied flat-packed for cost-effective shipping and easy on-site assembly
• 24 months parts only warranty

Specifications

• Width (mm): 380
• Depth (mm): 550
• Height (mm): 1735
• Weight (kg): 21.5
• Packed Width (mm): 610
• Packed Depth (mm): 1650
• Packed Height (mm): 80
• Warranty (months): 24 Months Parts Only Warranty
