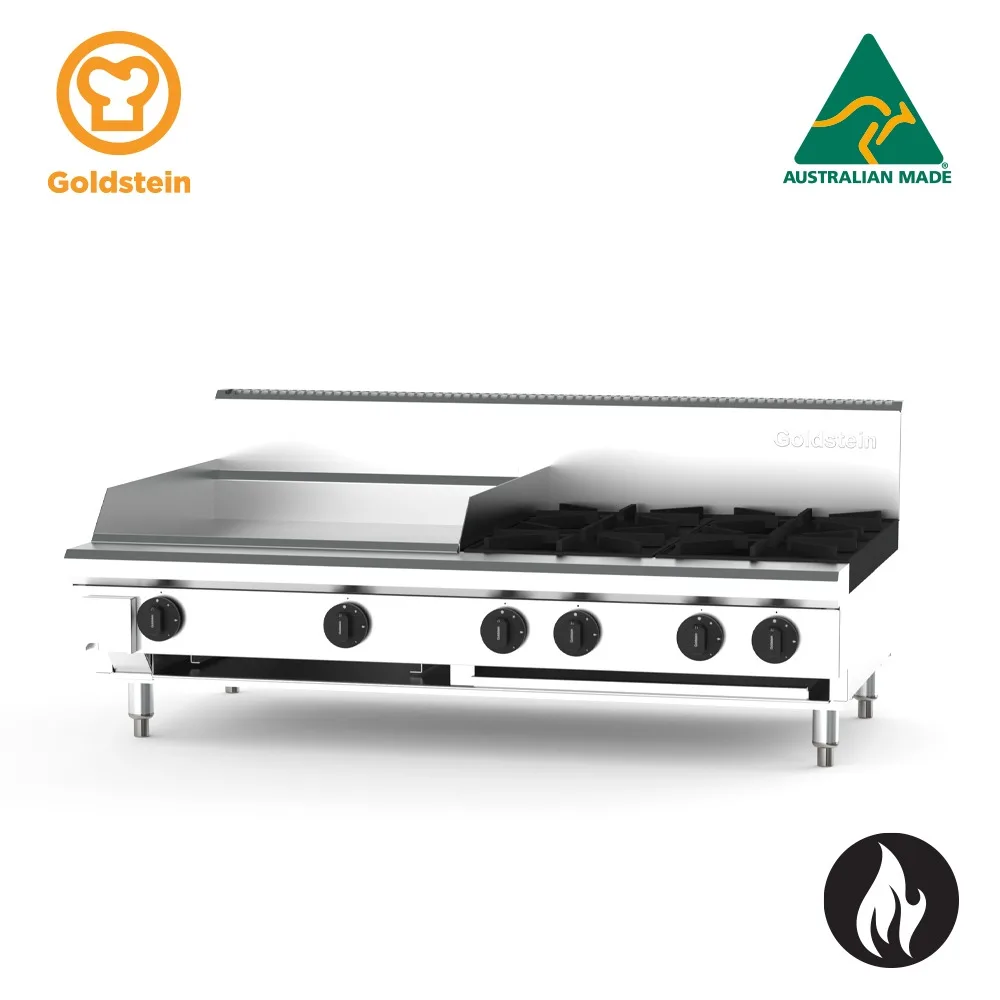

Goldstein PFB24G4-X 800 X-Series Gas Cooktop

Goldstein PFB24G4-X 800 X-Series 4 Burner and 610mm Griddle Gas Cooktop

The Goldstein PFB24G4-X is an Australian-made commercial gas cooktop from the 800 X-Series range, combining four high-performance 33 MJ open burners with a heavy-duty 610 x 520 x 20mm mild steel griddle plate positioned on the left-hand side. Built around a fully welded stainless steel body, it is engineered to withstand the rigours of busy commercial kitchens while delivering consistent, even heat across every cooking zone.

Designed with flexibility in mind, the modular X-Series platform supports various configurations of burners, griddle plates and chargrill sections in 305mm, 610mm, 914mm and 1219mm widths, allowing kitchens to tailor their cooktop layout as needs evolve. Practical details such as spill zones, drip trays, removable cast iron trivets and adjustable legs make day-to-day operation and cleaning straightforward, while an optional stand with undershelf adds further versatility for countertop or floor installation.

Key Benefits

• Four 33 MJ open burners deliver responsive, even heat for high-volume cooking, with 40% of flame ports concentrated in the centre cross of each burner for optimal heat distribution.
• A constant pilot flame maximises operating and energy efficiency, eliminating the need for repeated ignition during service.
• Pilot flame failure safety system on all open burners automatically cuts gas supply if a flame is extinguished, protecting staff and equipment.
• The heavy-duty 20mm mild steel griddle plate retains and distributes heat evenly, providing a versatile cooking surface suited to a wide range of menu items.
• Removable cast iron star trivets simplify cleaning and contribute to the long service life of the cooktop.
• Stainless steel fascia, sides and spill zones, combined with drip trays, keep maintenance quick and hygienic during and after service.
• Large, heat-resistant reinforced control knobs with clearly visible markings allow precise high-to-low flame adjustment even in a fast-paced kitchen environment.
• Adjustable legs (140–170mm range) and a fully welded steel body ensure stable, level installation on varied floor surfaces.
• Modular design allows the cooktop to be combined with additional burner, griddle or chargrill sections in multiple widths, supporting future kitchen reconfigurations.

Key Features

• Four removable 33 MJ high-performance open burners with 40% of flame ports in the centre cross for even heat distribution
• 610 x 520 x 20mm heavy-duty mild steel griddle plate, positioned on the left-hand side
• 20 MJ griddle burner output per every 305mm griddle section
• Piezo ignition with constant pilot flame on open burners
• Pilot flame failure safety device on all open burners automatically shuts off gas if the flame goes out
• Fully welded heavy-duty stainless steel body for rigidity and long-term durability
• Stainless steel fascia and sides with integrated spill zones and removable drip trays for ease of cleaning
• Removable cast iron star trivets for simple removal and cleaning
• Large, heat-resistant reinforced control knobs with easy-to-read settings and full high-to-low flame control
• Adjustable legs ranging 140–170mm for level installation on uneven surfaces
• Modular X-Series design compatible with burner, griddle and chargrill configurations in 305mm, 610mm, 914mm and 1219mm widths
• Compatible with optional stand with undershelf for floor-standing installation
• Accepts both Natural Gas and LPG with a total gas input rating of 172 MJ for each fuel type
• Gas connection via 3/4 BSP fitting
• Countertop/benchtop mounting as standard
• Made in Australia
• 2 years parts and labour warranty

Specifications

• Width (mm): 1219
• Depth (mm): 800
• Height (mm): 545
• Weight (kg): 115
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4 BSP
• Ignition Type: Piezo with Flame Failure
• Burner Output (MJ/h): 96
• Shipping Weight: 200
• Packed Width (mm): 1280.0
• Packed Height (mm): 870.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 1.002240000m3
• Power / Gas Input: 172/172 MJ
• Power Rating: 136 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: N/A (Open flame)
• Installation Type: Countertop
• Control Type: Manual
• Mounting Type: Benchtop
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Cast Iron Trivets
