Goldstein PFB12Q4-X 800 X-Series Gas Cooktop

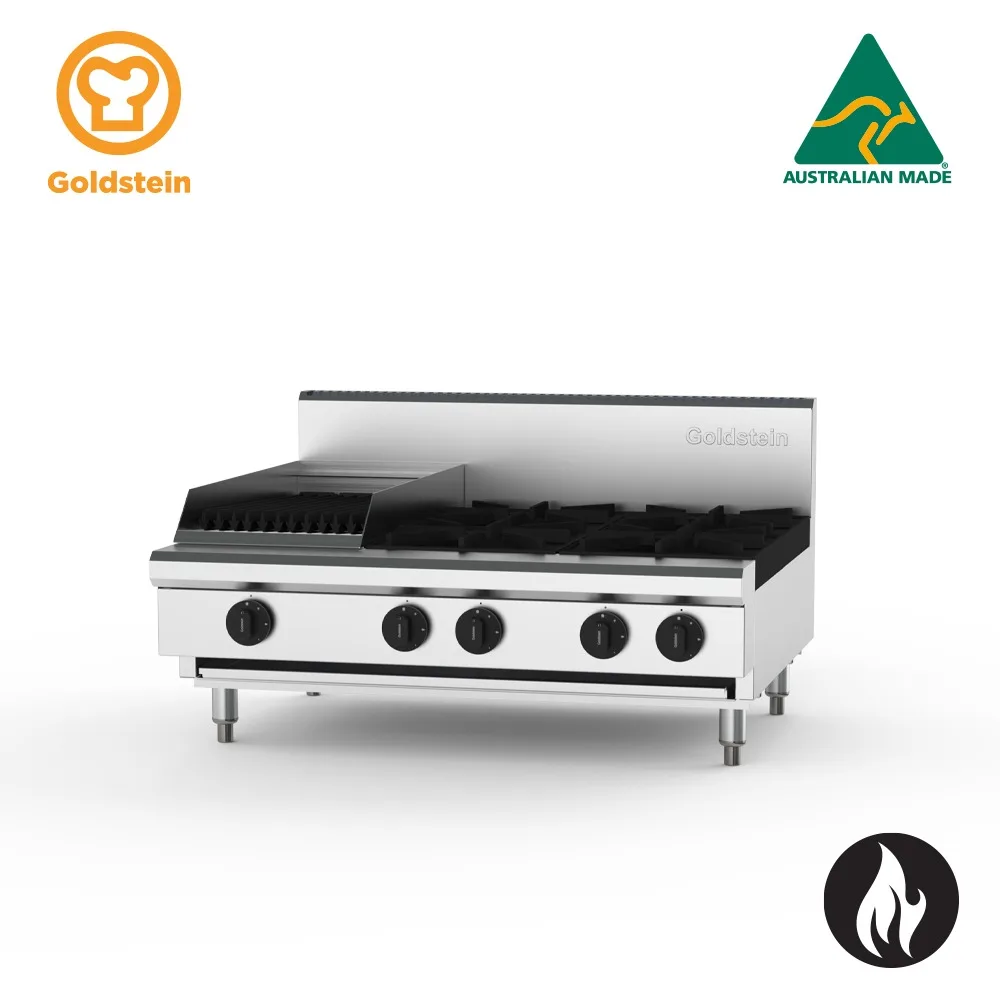

Goldstein PFB12Q4-X 800 X-Series Gas Cooktop – 4 Burner with 305mm Char Grill

The Goldstein PFB12Q4-X is a commercial gas cooktop from the 800 X-Series range, featuring four high-performance 33 MJ open burners alongside a 305mm char grill section, delivering a combined gas input of 172 MJ. Designed and made in Australia, the unit is built around a heavy-duty fully welded stainless steel body that provides long-term rigidity and durability in demanding commercial kitchen environments.

The cooktop's modular design philosophy allows operators to configure various combinations of open burners, griddle plates, and char grill sections in widths of 305, 610, 914, and 1219mm, making it a genuinely flexible solution as kitchen needs evolve. Practical details such as adjustable legs, large heat-resistant control knobs, stainless steel fascia and sides, spill zones, drip trays, and a front grease trough with generous chute and catcher ensure the unit is straightforward to operate, clean, and service day to day.

Key Benefits

• Four 33 MJ open burners with 40% of flame ports concentrated in the centre cross deliver even, responsive heat for consistent cooking results across the entire cooking surface.
• Heavy-duty cast iron reversible char grill grates offer two distinct char pattern options and two levelling positions – flat or gradient – giving chefs greater control over cooking style and heat exposure.
• Pilot flame failure safety system on all open burners automatically cuts gas flow if a flame is extinguished, protecting staff and complying with commercial kitchen safety requirements.
• Constant pilot flame ignition maximises operating efficiency and eliminates the need for separate ignition tools, reducing downtime during a busy service.
• Fully welded stainless steel body with welded griddle and char grill surrounds resists warping and structural fatigue under continuous heavy use.
• Adjustable legs (140–170mm) allow the unit to be levelled precisely on uneven floors, ensuring stable operation and correct heat distribution across grill surfaces.
• Removable cast iron star trivets and reversible char grill grates simplify cleaning and extend the working life of key components.
• Front grease trough with a generous chute and catcher on the char grill section channels fat away efficiently, reducing flare-ups and keeping the cooking area cleaner during service.
• Optional ceramic rocks for the char grill section increase heat retention and impart additional flavour, while a stand with undershelf is also available to suit different kitchen configurations.

Key Features

• Four removable 33 MJ high-performance open burners with even heat distribution
• 40% of flame ports located in the centre cross of each burner for concentrated, consistent heat
• 305mm char grill section with heavy-duty cast iron reversible grates positioned on the left-hand side
• Two char grill levelling options: flat or gradient
• 2 x 20 MJ inline radiant burners per every 305mm of char grill section
• Pilot flame failure safety system on all open burners
• Constant pilot flame for maximised operating and energy efficiency
• Fully welded heavy-duty stainless steel body for rigidity and long-term durability
• Fully welded surrounds for griddle and char grill sections
• Stainless steel fascia and sides with spill zones and drip trays for easy cleaning
• Front grease trough with generous chute and grease catcher on char grill section
• Cast iron star trivets that are removable for straightforward cleaning
• Large heat-resistant reinforced control knobs with clearly visible settings and high-to-low flame adjustment
• Adjustable legs from 140mm to 170mm for precise levelling
• Flexible modular design accommodating burner, griddle, and char grill combinations in 305, 610, 914, and 1219mm widths
• Ceramic rocks option available for the char grill to increase heat retention and enhance flavour
• Optional stand with undershelf available
• Total gas input: 172 MJ
• Made in Australia

Specifications

• Width (mm): 914
• Depth (mm): 800
• Height (mm): 545
• Weight (kg): 130
• Power / Gas Input: 172/170 MJ
• Country of Origin: Australia (Made)
• Fuel Type: Gas
• Number of Burners: 6
