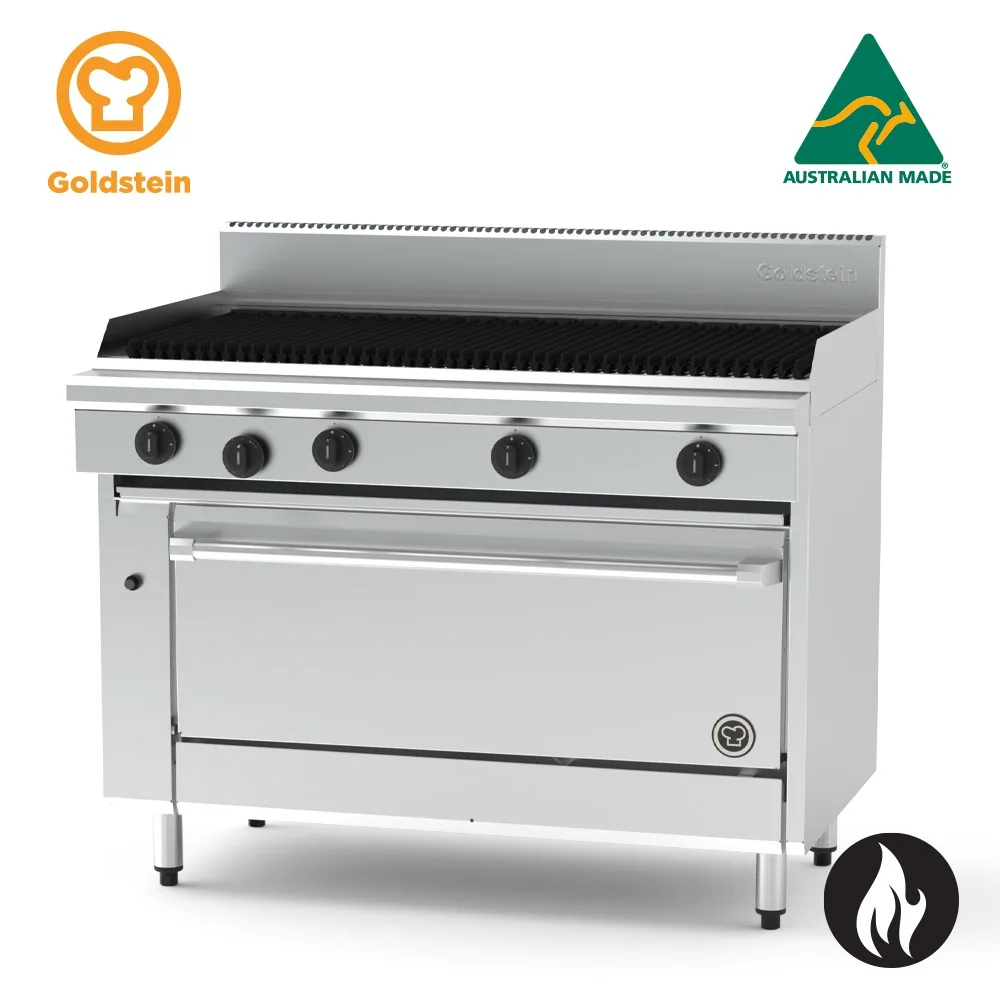

Goldstein PF48Q40-X 800 X-Series 1005mm (40in) Oven Range

Goldstein PF48Q40-X 800 X-Series 1005mm (40in) Gas Oven Range with BBQ Chargrill

The Goldstein PF48Q40-X is a heavy-duty commercial gas oven range from the 800 X-Series, spanning 1219mm wide and featuring a 510mm BBQ chargrill section alongside a 40-inch static gas oven. Designed and manufactured in Australia, it is built to handle the sustained demands of busy professional kitchens with a fully welded stainless steel body, modular cooktop flexibility, and a gastronorm-compatible oven cavity.

The X-Series platform offers exceptional configurability, allowing operators to combine open burners, griddle plates, and chargrill sections in 305mm and 610mm increments to suit their menu requirements. The oven is fully insulated and vitreous enamel-lined for even heat distribution and straightforward cleaning, while thoughtful details like ergonomic door handles, angled corners, and large heat-resistant control knobs deliver a practical, professional finish.

Key Benefits

• Australian-made construction ensures build quality suited to demanding commercial environments and local service support.
• Modular cooktop design lets operators configure burners, griddle plates, and chargrill sections to match evolving menu needs without replacing the whole unit.
• Fully insulated, vitreous enamel-lined oven and door deliver consistent, even heat for reliable baking and roasting with minimal cleaning effort.
• Constant pilot flame with pilot flame failure protection on open burners and flame failure to the oven burner maximises both energy efficiency and operational safety.
• Gastronorm-compatible oven cavity with GN 1/1 capacity and three-position racking accommodates standard commercial cookware and maximises throughput.
• Thermostatic oven control from 100°C to 280°C with Piezo ignition gives precise temperature management across a wide range of cooking applications.
• Stainless steel fascia and sides, spill zones, and removable drip trays reduce cleaning time and help maintain food safety standards during busy service periods.
• Adjustable legs (140–170mm) allow the unit to be levelled on uneven floors, ensuring stable operation and correct cooking performance.
• Heavy-duty cast iron reversible chargrill grates with two levelling options (flat or gradient) provide versatility for different protein and produce requirements.

Key Features

• 800 X-Series platform, 1219mm wide overall with a 510mm BBQ chargrill section and 1005mm (40in) static gas oven
• Total gas input: 195/188 MJ; oven power: 188 MJ
• Dimensions: W1220 x D800 x H1120mm; weight: 355kg
• Oven cavity dimensions: W1005 x D560 x H355mm
• Made in Australia
• Heavy-duty fully welded stainless steel body for structural rigidity and long-term durability
• Fully welded surrounds for griddle and chargrill sections
• Flexible modular cooktop accepts combinations of open burners, griddle plates, and chargrill options in 305mm and 610mm increments
• Oven options available: gas fan-forced, electric fan-forced, and static electric, all in gastronorm-compatible sizes
• Removable high-performance 33 MJ open cooktop burners; 40% of flame ports located in the centre cross of the burner for even heat
• Cast iron star trivets for open burner sections
• Constant pilot flame for maximised operating and energy efficiency
• Pilot flame failure protection on open burners; flame failure protection to oven burner
• 100°C to 280°C thermostatic oven control with Piezo ignition
• GN 1/1 oven capacity with three-position racking
• Heavy-duty chrome wire rack supports
• Oven and door fully insulated and finished in vitreous enamel for even heat distribution and easy cleaning
• Heavy-duty cast iron reversible chargrill grates with two levelling options: flat or gradient
• 2 x 20 MJ inline radiant burners per every 305mm chargrill section
• Ceramic rocks option available to increase heat retention and enhance flavour on chargrill
• Griddle and BBQ section positioned on the left-hand side
• Stainless steel fascia and sides with spill zone and removable drip trays
• Large heat-resistant reinforced control knobs with clear high-to-low flame markings
• Ergonomic door handle and angled corners for a modern, professional aesthetic
• Adjustable legs from 140mm to 170mm for levelling on uneven floors
• Designed for ease of servicing

Specifications

• Width (mm): 1219
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 355
• Power / Gas Input: 195/188 MJ
• Power (kW): 188
• Country of Origin: Australia (Made)
• Fuel Type: Gas
• Number of Burners: 8
