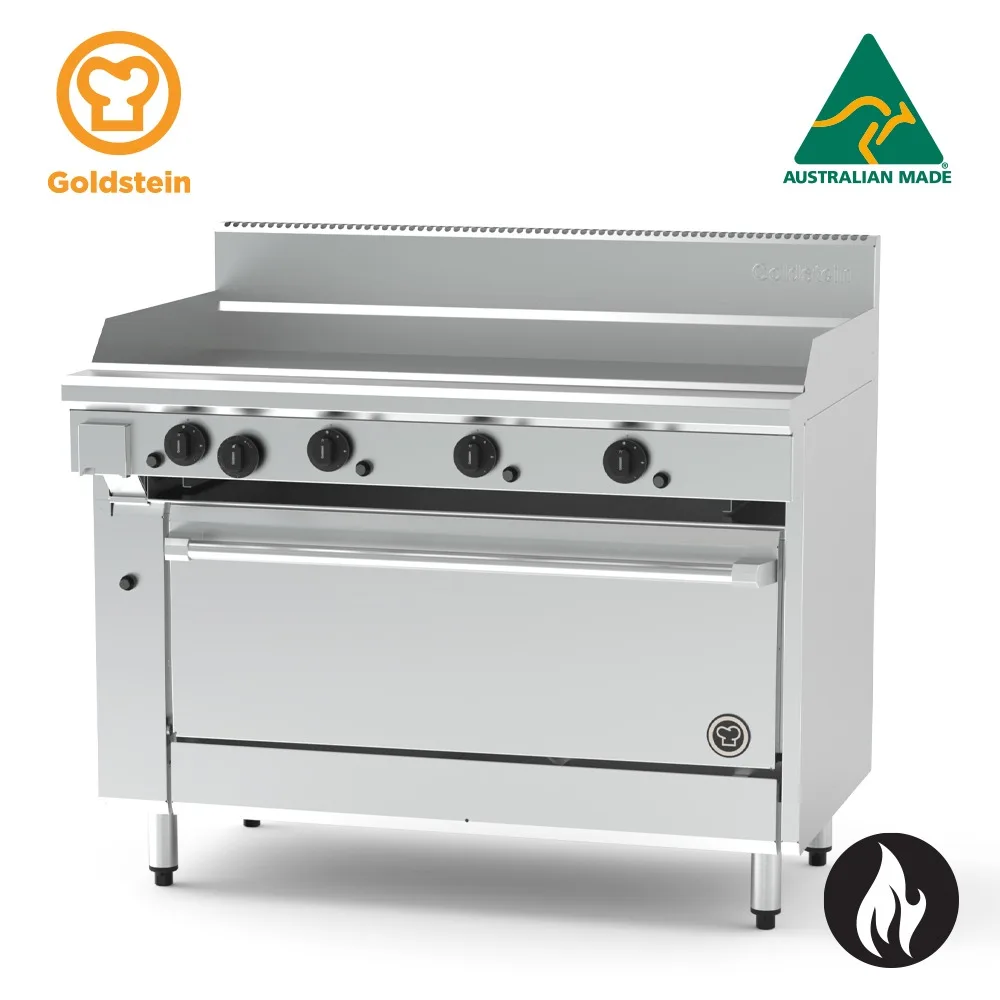

Goldstein PF48G40-X 800 X-Series 1005mm (40in) Oven Range

Goldstein PF48G40-X 800 X-Series 1005mm (40in) Gas Griddle & Static Oven Range 1219mm

The Goldstein PF48G40-X is a heavy-duty commercial gas range from the 800 X-Series, offering a 1219mm wide, 20mm thick smooth mild steel griddle plate paired with a 1005mm (40in) static gas oven. Manufactured in Australia from welded stainless steel, it is built to withstand the demands of high-volume professional kitchens, delivering consistent performance across both the griddle surface and the fully insulated oven cavity.

Designed with a flexible modular cooktop layout, the PF48G40-X supports various configurations of griddle plates, open burners, and chargrill options in 305mm, 610mm, and 914mm sections. The oven features vitreous enamel lining, GN 1/1 compatible racking, and 100°C to 280°C thermostatic control, making it equally suited to baking, roasting, and extended cooking runs in busy commercial environments.

Key Benefits

• Thick 20mm mild steel griddle plate retains and distributes heat evenly across the entire cooking surface, reducing hot spots and improving cook consistency.
• Fully insulated oven cavity with vitreous enamel coating maintains stable temperatures between 100°C and 280°C, supporting reliable baking and roasting results.
• Modular cooktop design allows the kitchen to configure burners, griddle plates, and chargrills in 305mm, 610mm, and 914mm increments to match changing menu requirements.
• Constant pilot flame combined with pilot flame failure protection on open burners and flame failure on the oven burner maximises both energy efficiency and kitchen safety.
• GN 1/1 compatible oven interior with three-position racking and heavy-duty chrome wire rack supports accommodates standard gastronorm trays for streamlined food service workflows.
• Piezo ignition on both the griddle and oven provides fast, reliable lighting without the need for external ignition tools.
• Stainless steel fascia and sides, removable spill zones, and drip trays simplify daily cleaning and reduce downtime between services.
• Adjustable legs (140mm to 170mm) allow levelling on uneven floors, while the ergonomic door handle and angled corners contribute to a clean, professional appearance.
• Australian-made construction with a heavy-duty fully welded stainless steel body ensures long-term rigidity and durability in high-use commercial kitchen environments.

Key Features

• 1219mm wide 20mm thick smooth mild steel griddle plate
• 1005mm (40in) static gas oven with W1005 x D560 x H355mm internal cavity
• Overall dimensions: W1220 x D800 x H1120mm
• Total power input: 116 MJ/h; oven output: 108 MJ/h
• Gas connection: 3/4 BSP; compatible with natural gas and LPG
• Heavy-duty fully welded stainless steel body, fascia, and sides
• Fully welded surrounds for griddle and chargrill sections
• Flexible modular cooktop supporting burners, griddle plates, and chargrill options in 305mm, 610mm, and 914mm configurations
• Griddle and BBQ section positioned on the left-hand side
• 20 MJ griddle burners per every 305mm griddle section
• Removable high-performance 33 MJ open cooktop burners with 40% of flame ports in the centre cross
• Cast iron star trivets for open burner sections
• Constant pilot flame on open burners for maximised operating efficiency
• Pilot flame failure protection on open burners; flame failure device on oven burner
• 100°C to 280°C thermostatic oven control
• Piezo ignition with flame failure on both griddle and oven
• Oven and oven door fully insulated and lined with vitreous enamel for even heat distribution and easy cleaning
• GN 1/1 oven capacity with three-position racking
• Heavy-duty chrome wire rack supports designed for easy removal
• Oven options available (not included as standard): gas fan-forced, electric fan-forced, and static electric, all in gastronorm-compatible sizes
• Large heat-resistant reinforced control knobs with clearly visible high-to-low flame settings
• Removable spill zones and drip trays for straightforward cleaning
• Ergonomic door handle and angled corners for a modern, professional appearance
• Adjustable legs from 140mm to 170mm for levelling on uneven surfaces
• Freestanding installation; designed for easy servicing
• Made in Australia

Specifications

• Width (mm): 1219
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 280
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4 BSP
• Ignition Type: Piezo with Flame Failure
• Burner Output (MJ/h): 96
• Power / Gas Input: 115/116 MJ
• Power Rating: 108 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 116
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 100°C - 280°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
