Goldstein PF36Q28-X 800 X-Series 700mm (28in) Oven Range

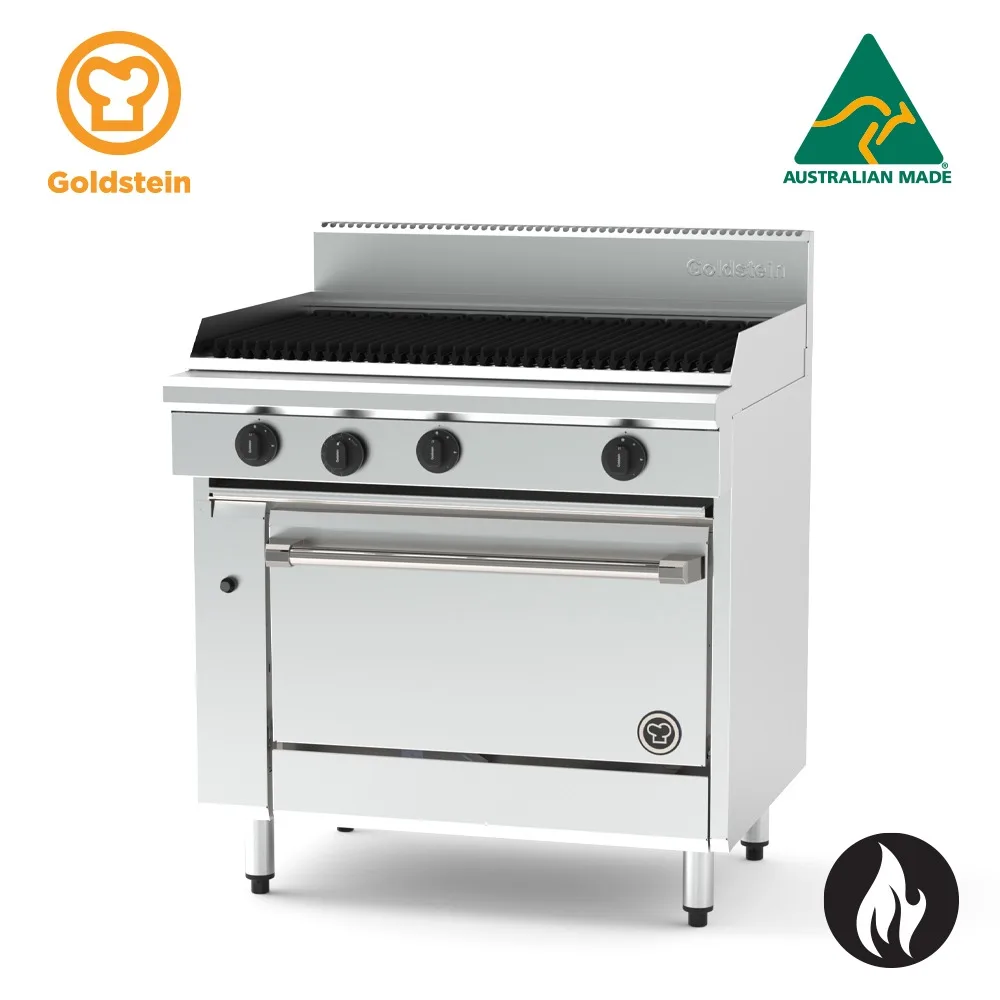

Goldstein PF36Q28-X 800 X-Series 914mm Gas Range with BBQ & Static Oven

The Goldstein PF36Q28-X is an Australian-made commercial gas range from the 800 X-Series, featuring a 914mm wide chargrill/BBQ section paired with a 700mm (28-inch) gas static oven. Designed for demanding professional kitchens, it combines a heavy-duty welded stainless steel body with a flexible modular cooktop that accommodates various configurations of open burners, griddle plates, and chargrill sections in 305mm and 610mm increments.

The oven cavity is fully insulated with vitreous enamel on both the oven and door, delivering even heat distribution and straightforward cleaning. With gastronorm-compatible oven dimensions, thermostatic control from 100°C to 280°C, and safety features including pilot flame failure protection, this range is built to support consistent, high-volume output across a broad range of cooking applications.

Key Benefits

• Modular cooktop design allows the flexibility to configure burners, griddle plates, and chargrill sections to suit changing menu demands
• High-output 33MJ open cooktop burners with 40% of flame ports centred in the burner cross ensure even, powerful heat across the cooking surface
• Vitreous enamel-lined oven and door retain and distribute heat evenly, reducing hot spots and simplifying end-of-service cleaning
• Pilot flame failure on open burners and flame failure safety on the oven burner protect staff and comply with commercial kitchen safety requirements
• Constant pilot flame maximises ignition reliability and energy efficiency during busy service periods
• GN 1/1 compatible oven cavity with three-position racking accommodates full gastronorm trays, streamlining preparation and service workflows
• Adjustable legs (140–170mm) allow the unit to be levelled on uneven kitchen floors, ensuring stable operation
• Stainless steel fascia, sides, spill zones, and removable drip trays make routine cleaning fast and hygienic
• Australian-made construction with heavy-duty welded stainless steel body ensures long-term durability in high-frequency commercial use

Key Features

• 914mm wide chargrill/BBQ section positioned on the left-hand side
• 700mm (28-inch) gas static oven as standard; optional gas fan-forced, electric fan-forced, and static electric oven configurations available in gastronorm-compatible sizes
• Oven dimensions: 700mm (W) x 560mm (D) x 355mm (H)
• Overall dimensions: 914mm (W) x 800mm (D) x 1120mm (H)
• Total gas input: 148 MJ
• Heavy-duty welded stainless steel body with fully welded surrounds for griddle and chargrill sections
• Flexible modular cooktop supports combinations of open burners, griddle plates, and chargrill options in 305mm and 610mm sections
• Removable 33MJ open cooktop burners with 40% of flame ports in the centre cross for even heat output
• Cast iron star trivets for stable cookware support
• Chargrill features heavy-duty cast iron reversible grates with two levelling options: flat or gradient
• 2 x 20MJ inline radiant burners per 305mm chargrill section
• Ceramic rocks option available for the chargrill to increase heat retention and enhance flavour
• 100°C to 280°C thermostatic oven control with Piezo ignition
• Oven and door fully insulated with vitreous enamel for heat retention and easy cleaning
• GN 1/1 oven capacity with 3-position racking and heavy-duty chrome wire rack supports
• Constant pilot flame for reliable ignition and improved energy efficiency
• Pilot flame failure protection on open burners; flame failure safety device on oven burner
• Stainless steel fascia and sides with spill zones and removable drip trays
• Large, heat-resistant reinforced control knobs with clearly visible high-to-low flame settings
• Ergonomic door handle and angled corners for a refined, practical finish
• Adjustable legs from 140mm to 170mm for levelling on uneven surfaces
• Designed for ease of servicing
• Country of origin: Australia

Specifications

• Width (mm): 914
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 267
• Power / Gas Input: 148/144 MJ
• Power (kW): 148
• Country of Origin: Australia (Made)
• Fuel Type: Gas
• Number of Burners: 6
