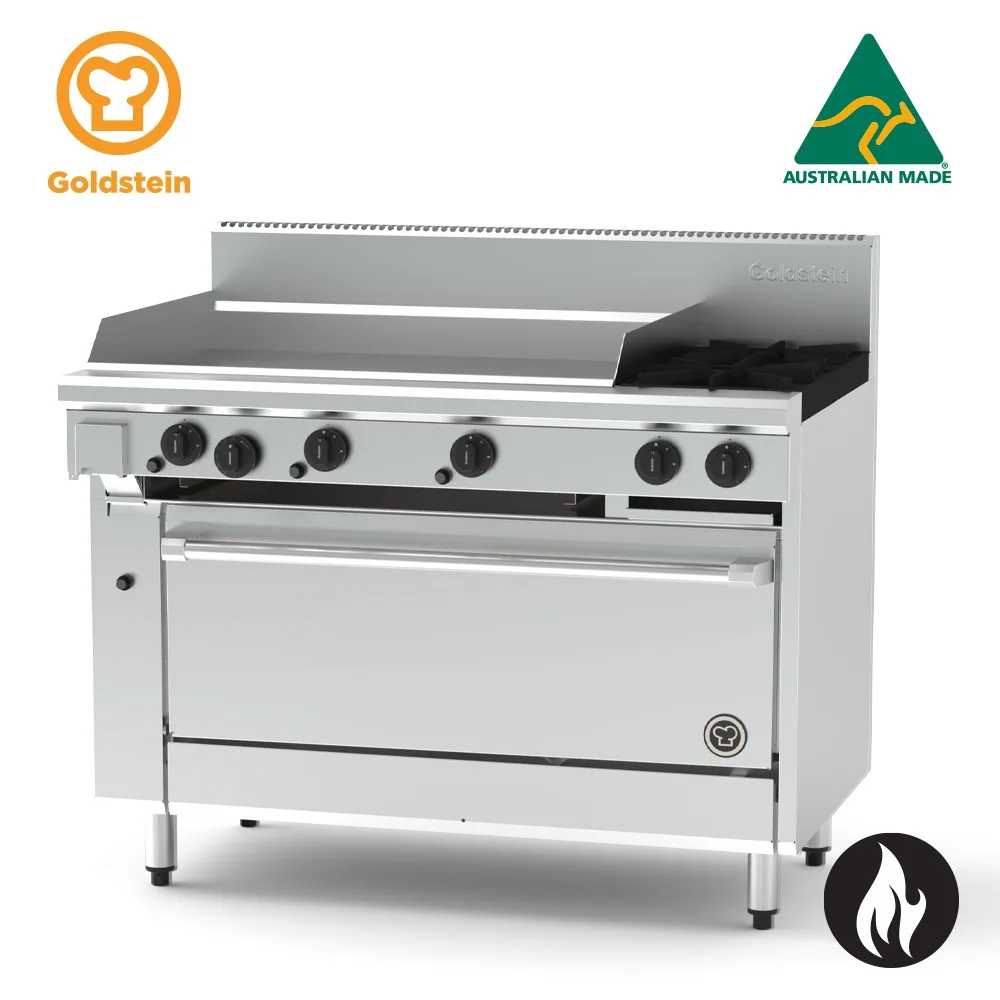

Goldstein PF36G240-X 800 X-Series 1005mm (40in) Oven Range

Goldstein PF36G240-X 800 X-Series 1005mm Gas 2 Burner & 914mm Griddle with Gas Static Oven

The Goldstein PF36G240-X is an Australian-made commercial oven range from the 800 X-Series, combining two 33 MJ open cooktop burners and a 914mm mild steel griddle plate with a 1005mm gas static oven on a 1219mm-wide freestanding unit. Built from heavy-duty welded stainless steel, it is engineered for the rigorous demands of professional kitchens, delivering consistent performance across high-volume cooking sessions.

The modular cooktop design supports a range of configurations including burners, griddle plates and chargrill options across 305mm, 610mm and 914mm sections, while multiple oven variants are available to suit different operational requirements. Every detail, from the vitreous enamel-lined oven cavity to the ergonomic door handle and adjustable legs, is designed to simplify cleaning, improve energy efficiency and keep the unit performing reliably day after day.

Key Benefits

• Consistent, even heat across the cooktop and oven ensures reliable baking, roasting and griddling results during peak service periods.
• The constant pilot flame with pilot flame failure protection on open burners and the oven burner maximises energy efficiency while keeping operations safe.
• GN 1/1 compatible oven cavity with three-position racking provides flexible, gastronorm-friendly capacity for a wide variety of dishes.
• Vitreous enamel lining on the fully insulated oven and door makes cleaning fast and reduces heat loss for more consistent cooking temperatures.
• Stainless steel fascia and sides, along with spill zones and drip trays, allow quick clean-down between services and reduce kitchen downtime.
• Adjustable legs from 140mm to 170mm allow the unit to be levelled precisely on uneven commercial kitchen floors.
• The flexible modular cooktop accepts multiple configurations of burners, griddle plates and chargrills, letting kitchens adapt the layout to their menu needs.
• Multiple oven options, including gas fan forced, electric fan forced, electric static and electric convection, allow the same footprint to be specified for different cooking methods.
• Removable cooktop burners and chrome wire rack supports designed for easy removal simplify routine maintenance and deep cleaning.

Key Features

• Heavy-duty welded stainless steel body construction for rigidity and long-term durability in commercial use.
• Fully welded surrounds for griddle and chargrill sections provide a seamless, hygienic finish.
• Two removable, high-performance 33 MJ open cooktop burners with 40% of flame ports concentrated in the centre cross for even heat distribution.
• Cast iron star trivets for stable pot support on open burners.
• 914 x 520 x 20mm mild steel griddle plate with 20 MJ burners per every 305mm section.
• Griddle and BBQ section positioned on the left-hand side.
• Piezo ignition with flame failure safety on open burners and oven burner.
• Constant pilot flame system to maximise operating efficiency.
• 1005mm gas static oven with 100°C to 280°C thermostatic control.
• Oven and door fully insulated and lined with vitreous enamel for even heat distribution and easy cleaning.
• GN 1/1 compatible oven cavity with three-position racking system.
• Heavy-duty chrome wire rack supports designed for straightforward removal and cleaning.
• Oven interior dimensions: 1005mm wide x 560mm deep x 355mm high.
• Modular cooktop design compatible with configurations in 305mm, 610mm and 914mm sections.
• Available oven variants: PF36G240FF-X (gas fan forced), PF36G240EFF-X (electric fan forced), PFC36G240E-X (electric convection), PF36G240E-X (electric static).
• Stainless steel fascia and sides with spill zone and drip trays for straightforward cleaning.
• Large, heat-resistant reinforced control knobs with clearly visible settings and high-to-low flame adjustment.
• Ergonomic door handle and angled corners for a professional, modern appearance.
• Adjustable legs from 140mm to 170mm for precise levelling.
• Natural gas or LPG compatible with 3/4 BSP gas connection.
• Freestanding installation, Australian made.
• Total power input: 162 MJ; cooktop burner output: 126 MJ/h.

Specifications

• Width (mm): 1219
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 260
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4 BSP
• Ignition Type: Piezo with Flame Failure
• Burner Output (MJ/h): 126
• Power / Gas Input: 161/162 MJ
• Power Rating: 126 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 162
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 100°C - 280°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Cast Iron Trivets
