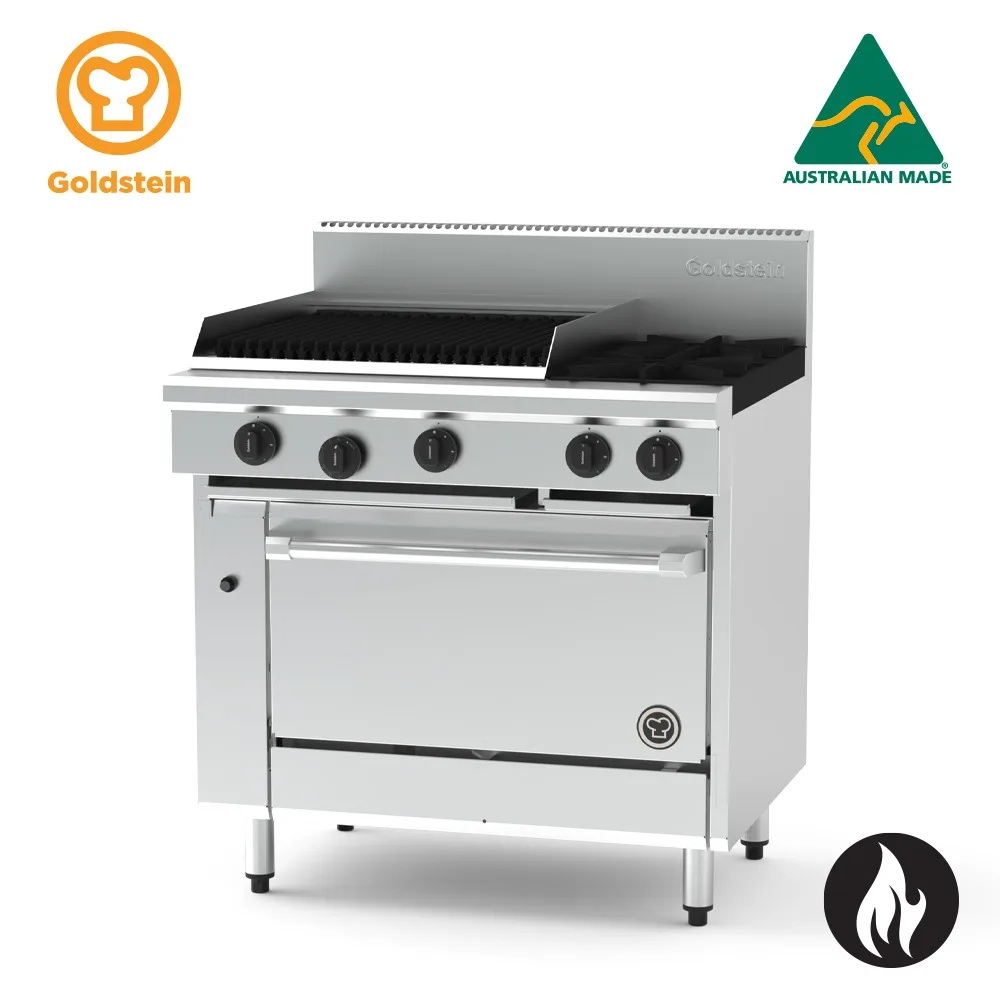

Goldstein PF24Q228-X 800 X-Series 700mm (28in) Oven Range

Goldstein PF24Q228-X 800 X-Series 700mm Gas 2 Burner & 610mm Chargrill with Gas Static Oven

The Goldstein PF24Q228-X is an Australian-made 800 X-Series commercial oven range combining two high-output open burners and a 610mm chargrill (BBQ) section on a single 914mm-wide platform, paired with a 700mm gas static oven below. Designed for the rigours of professional kitchen service, the unit features a heavy-duty fully welded stainless steel body, vitreous enamel oven interior, and a flexible modular cooktop layout that accommodates a wide range of cooking configurations.

The X-Series platform supports multiple oven configurations including gas static, gas fan-forced, electric fan-forced, and convection options, all in gastronorm-compatible sizes. With a total power input of 174 MJ, thermostatic oven control from 100°C to 280°C, constant pilot flame technology, and comprehensive safety features including flame failure protection, this range is engineered for consistent, energy-efficient output across high-volume commercial operations.

Key Benefits

• Flexible modular cooktop layout allows the combination of open burners, griddle plates, and 305mm or 610mm chargrill sections to suit changing menu demands.
• Removable 33 MJ open burners with 40% of flame ports in the centre cross deliver fast, even heat across the cooktop for consistent cooking results.
• Constant pilot flame design maximises energy efficiency and ensures rapid ignition during busy service periods.
• Pilot flame failure protection on open burners and flame failure safeguard on the oven burner provide an important layer of operational safety.
• Vitreous enamel oven interior and door insulation promote even heat distribution and make cleaning significantly faster between services.
• GN 1/1 compatible oven cavity with three-position racking and heavy-duty chrome wire rack supports maximises usable oven space for batch cooking.
• Stainless steel fascia and sides, along with removable spill zones and drip trays, simplify daily cleaning and reduce downtime.
• Adjustable legs ranging from 140mm to 170mm allow precise levelling on uneven kitchen floors, improving both safety and cooking performance.
• Made in Australia to commercial kitchen standards, with an easy-to-service design that helps reduce maintenance costs over the long term.

Key Features

• 2 x removable 33 MJ high-performance open cooktop burners with 40% of flame ports concentrated in the centre cross for even heat distribution.
• Cast iron star trivets provide a stable, durable cooking surface for pots and pans of various sizes.
• 610mm chargrill (BBQ) section with heavy-duty cast iron reversible grates, positioned on the left-hand side of the cooktop.
• Chargrill features 2 x 20 MJ inline radiant burners per 305mm section and two levelling options: flat or gradient grate orientation.
• Ceramic rocks option available on the chargrill to increase heat retention and enhance flavour transfer.
• 700mm gas static oven with thermostatic control from 100°C to 280°C and Piezo ignition.
• Oven cavity dimensions: 700mm wide x 560mm deep x 355mm high; gastronorm GN 1/1 compatible.
• Oven and door are fully insulated with vitreous enamel lining for even heat distribution and easy cleaning.
• Three-position racking system with heavy-duty chrome wire rack supports inside the oven.
• Multiple oven configuration options available: gas static, gas fan-forced, electric fan-forced, and convection, all in gastronorm-compatible sizes.
• Heavy-duty fully welded stainless steel body construction for long-term rigidity and durability.
• Fully welded surrounds on griddle and chargrill sections for a robust, sealed finish.
• Stainless steel fascia and sides with removable spill zones and drip trays for straightforward daily cleaning.
• Large heat-resistant reinforced control knobs with clearly visible high-to-low flame settings for precise control during service.
• Ergonomic door handle and angled corners provide a contemporary, practical aesthetic.
• Adjustable legs from 140mm to 170mm for levelling on uneven floors.
• Total power input: 174 MJ.
• Overall dimensions: 914mm wide x 800mm deep x 1120mm high; weight 267 kg.
• Designed for ease of servicing to minimise downtime.
• Made in Australia.

Specifications

• Width (mm): 914
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 267
• Power / Gas Input: 174/172 MJ
• Power (kW): 174
• Country of Origin: Australia (Made)
• Fuel Type: Gas
• Number of Burners: 6
