Goldstein PF24Q20-X 800 X-Series 500mm (20in) Gas Oven Range

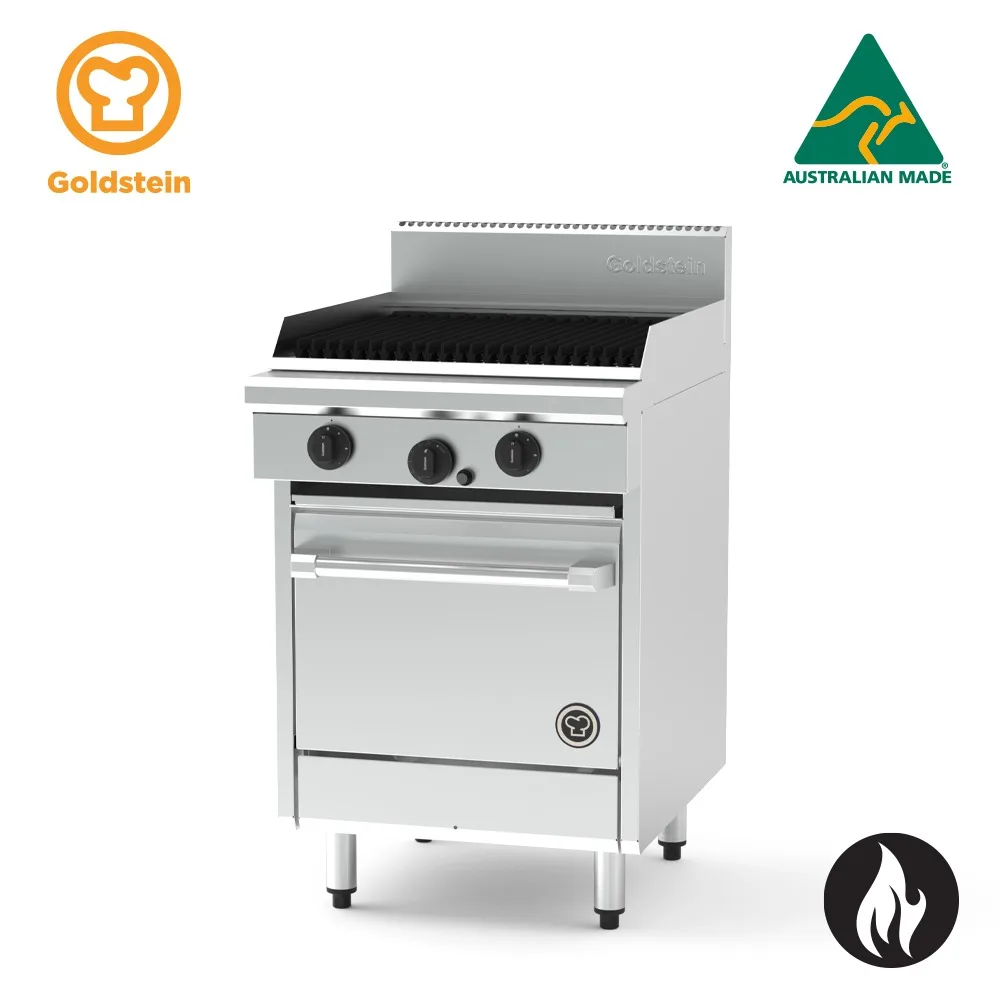

Goldstein PF24Q20-X 800 X-Series 610mm Gas Chargrill with 500mm Static Gas Oven

The Goldstein PF24Q20-X is a heavy-duty commercial gas range from the 800 X-Series, combining a 610mm wide gas chargrill with a 500mm static gas oven in a single modular unit. Australian-made and built for the rigours of professional kitchens, it features a fully welded stainless steel body, cast iron reversible chargrill grates, and a vitreous enamel-lined oven cavity designed to deliver consistent, reliable results across high-volume service periods.

The flexible modular cooktop design supports various configurations of burners, griddle plates, and chargrills in 305mm and 610mm sections, making this range adaptable to a wide range of commercial kitchen requirements. The oven is available in multiple formats including gas static, gas fan forced, electric fan forced, and static electric, all in gastronorm-compatible sizes, giving operators the freedom to match the unit to their specific cooking programme.

Key Benefits

• Modular cooktop layout allows the range to be configured with burners, griddle plates, or chargrills in 305mm or 610mm sections to suit changing menu demands.
• Cast iron reversible chargrill grates offer two char pattern options and excellent heat retention, giving chefs greater control over cooking results and energy use.
• Constant pilot flame and thermostatic oven control between 100°C and 280°C support consistent cooking temperatures and reduce energy waste during service.
• Pilot flame failure protection on open burners and an oven burner flame failure device improve operational safety in busy kitchen environments.
• Vitreous enamel lining on the oven cavity and door promotes even heat distribution while making post-service cleaning quick and straightforward.
• Gastronorm-compatible oven interior with GN 1/1 capacity and three-position racking maximises usable space and supports standardised cookware across the kitchen.
• Fully welded stainless steel body with stainless fascia, sides, spill zones, and removable drip trays provides long-term structural integrity and simplifies daily cleaning.
• Adjustable legs (140–170mm) allow the unit to be levelled on uneven floors, while the ergonomic door handle and angled corners contribute to a practical, professional finish.
• Australian-made construction supports local quality standards and simplifies access to parts and servicing.

Key Features

• 610mm wide gas chargrill (BBQ) section with 500mm static gas oven below
• 800 X-Series modular platform; cooktop configurable with burners, griddle plates, and chargrills in 305mm or 610mm sections
• Heavy duty welded stainless steel body for structural rigidity and long-term durability
• Fully welded surrounds for griddle and chargrill sections
• Stainless steel fascia and sides throughout
• Chargrill features heavy duty cast iron reversible grates with two char pattern options
• Two levelling options for the chargrill grates: flat or gradient
• 2 x 20 MJ inline radiant burners per 305mm chargrill section
• Ceramic rocks option available on the chargrill to increase heat retention and enhance flavour
• Griddle and chargrill section positioned on the left-hand side
• 33 MJ removable cooktop burners (where open burner configuration is selected) with 40% of flame ports in the centre cross for even heat distribution
• Cast iron star trivets for open burner sections
• Constant pilot flame for improved operating and energy efficiency
• Pilot flame failure safety device on open burners; flame failure protection on oven burner
• Static gas oven with 100°C to 280°C thermostatic control and Piezo ignition
• Oven cavity and door fully insulated and lined with vitreous enamel for even heat distribution and easy cleaning
• GN 1/1 oven capacity with three-position racking
• Heavy duty chrome wire rack supports designed for easy removal and cleaning
• Alternative oven options available: gas fan forced, electric fan forced, static electric, all in gastronorm-compatible sizes
• Oven interior dimensions: W500 x D560 x H355mm
• Large heat-resistant reinforced control knobs with clearly visible settings and high-to-low flame adjustment
• Ergonomic door handle and angled corners for a clean, professional aesthetic
• Removable spill zone and drip trays for simplified maintenance
• Adjustable legs from 140mm to 170mm for levelling on uneven floors
• Total gas input: 100 MJ
• Overall dimensions: W610 x D800 x H1120mm
• Weight: 178 kg
• Country of origin: Australia

Specifications

• Width (mm): 610
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 178
• Power / Gas Input: 100/96 MJ
• Power (kW): 100
• Country of Origin: Australia (Made)
• Fuel Type: Gas
• Number of Burners: 4
