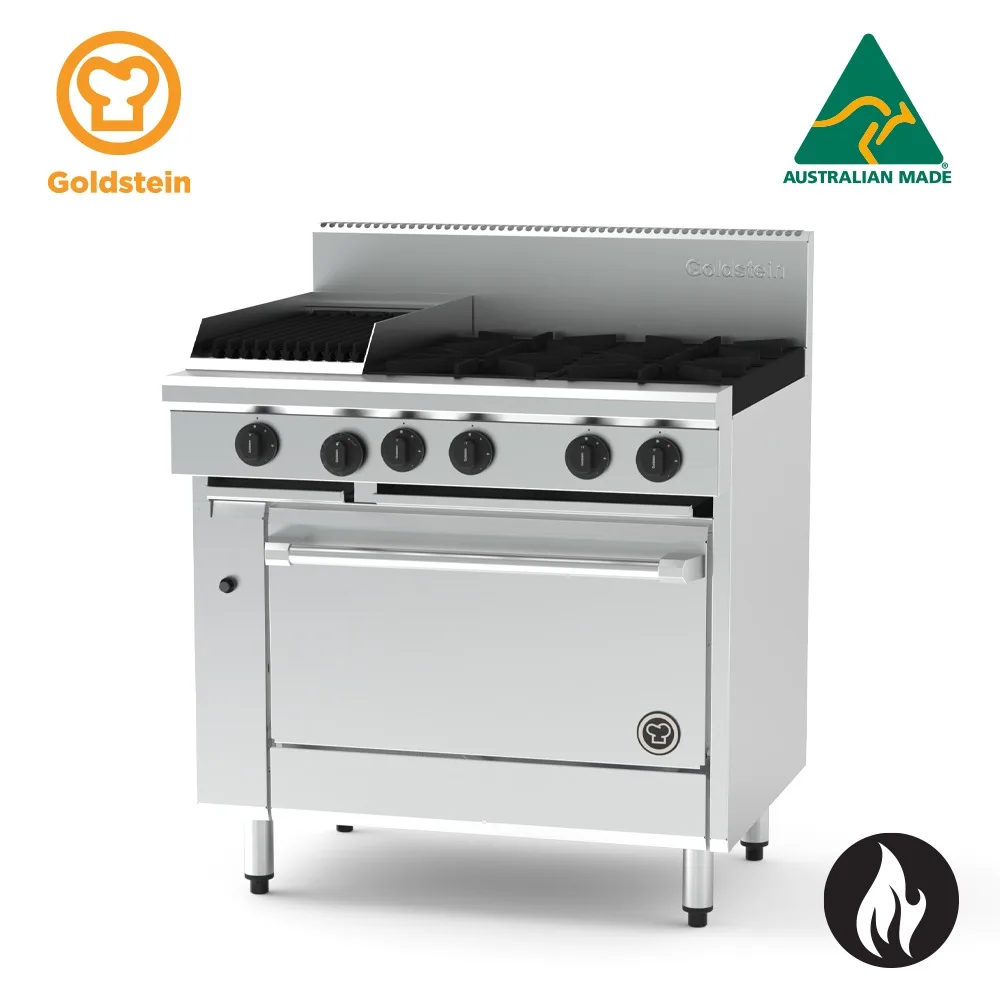

Goldstein PF12Q428-X 800 X-Series 700mm (28in) Oven Range

Goldstein PF12Q428-X 800 X-Series 4 Burner & 305mm Chargrill with 700mm Gas Static Oven

The Goldstein PF12Q428-X is an Australian-made 800 X-Series commercial oven range delivering a practical combination of four open cooktop burners, a 305mm chargrill/BBQ section, and a 700mm gas static oven in a single 914mm-wide unit. Built on a heavy-duty welded stainless steel body, it is engineered for the rigours of high-volume professional kitchens where reliability and versatility are non-negotiable.

The modular cooktop design supports flexible configurations across burners, griddle plates, and chargrill options (305mm and 610mm sections), while multiple oven formats are available including gas fan-forced, electric fan-forced, and static electric variants, all in gastronorm-compatible sizes. With a total power input of 200MJ, vitreous enamel-lined oven cavity, and a suite of safety and efficiency features, the PF12Q428-X is a comprehensive cooking solution for demanding foodservice operations.

Key Benefits

• Four 33MJ removable open burners deliver high-output, even heat across the cooktop for rapid and consistent cooking results.
• The 305mm chargrill section with cast iron reversible grates and inline radiant burners provides versatile char-cooking capability directly on the line.
• The gas static oven with 100°C to 280°C thermostatic control and Piezo ignition allows precise, reliable baking and roasting with easy start-up.
• GN 1/1-compatible oven cavity with three-position racking maximises usable capacity and accommodates standard gastronorm trays without adapters.
• Constant pilot flame technology maximises energy efficiency and operational readiness during service, while pilot flame failure and oven burner flame failure devices provide essential safety protection.
• Vitreous enamel lining on both the oven cavity and door simplifies cleaning and supports even heat distribution, reducing downtime between services.
• Stainless steel fascia and sides, combined with removable spill zones and drip trays, make daily cleaning fast and thorough.
• Adjustable legs (140mm to 170mm) allow the unit to be levelled accurately on uneven kitchen floors, contributing to stable and safe operation.
• Australian-made construction with a fully welded stainless steel body ensures long-term structural rigidity suited to continuous commercial use.

Key Features

• 4 x 33MJ removable open cooktop burners with 40% of flame ports concentrated in the centre cross for even heat distribution
• Cast iron star trivets on each burner position
• 305mm chargrill/BBQ section positioned on the left-hand side of the cooktop
• Heavy-duty cast iron reversible chargrill grates with two levelling options: flat or gradient
• 2 x 20MJ inline radiant burners per every 305mm chargrill section
• Ceramic rocks option available on chargrill to increase heat retention and enhance flavour
• 700mm gas static oven with 100°C to 280°C thermostatic control and Piezo ignition
• Oven cavity dimensions: 700mm (W) x 560mm (D) x 355mm (H)
• GN 1/1 gastronorm-compatible oven capacity with 3-position racking
• Heavy-duty chrome wire rack supports inside oven
• Oven and door fully insulated and lined with vitreous enamel for even heat and easy cleaning
• Alternative oven options available: gas fan-forced, electric fan-forced, and static electric, all in gastronorm-compatible sizes
• Cast iron sole plates available on gas and electric oven options for optimal heat distribution
• Constant pilot flame for improved energy efficiency and operational readiness
• Pilot flame failure safety device on open burners; flame failure device on oven burner
• Flexible modular cooktop design accommodates various combinations of burners, griddle plates, and 305mm or 610mm chargrill sections
• Fully welded surrounds for griddle and chargrill sections
• Heavy-duty welded stainless steel body for structural rigidity and long-term durability
• Stainless steel fascia and sides throughout
• Removable spill zone and drip trays for straightforward cleaning
• Large heat-resistant reinforced control knobs with clearly visible settings and high-to-low flame adjustment
• Ergonomic door handle and angled corners for a streamlined, professional appearance
• Adjustable legs ranging from 140mm to 170mm for accurate levelling on site
• Total power input: 200MJ
• Overall dimensions: 914mm (W) x 800mm (D) x 1120mm (H)
• Weight: 267kg
• Manufactured in Australia

Specifications

• Width (mm): 914
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 267
• Power / Gas Input: 200/200 MJ
• Power (kW): 200
• Country of Origin: Australia (Made)
• Fuel Type: Gas
• Number of Burners: 6
