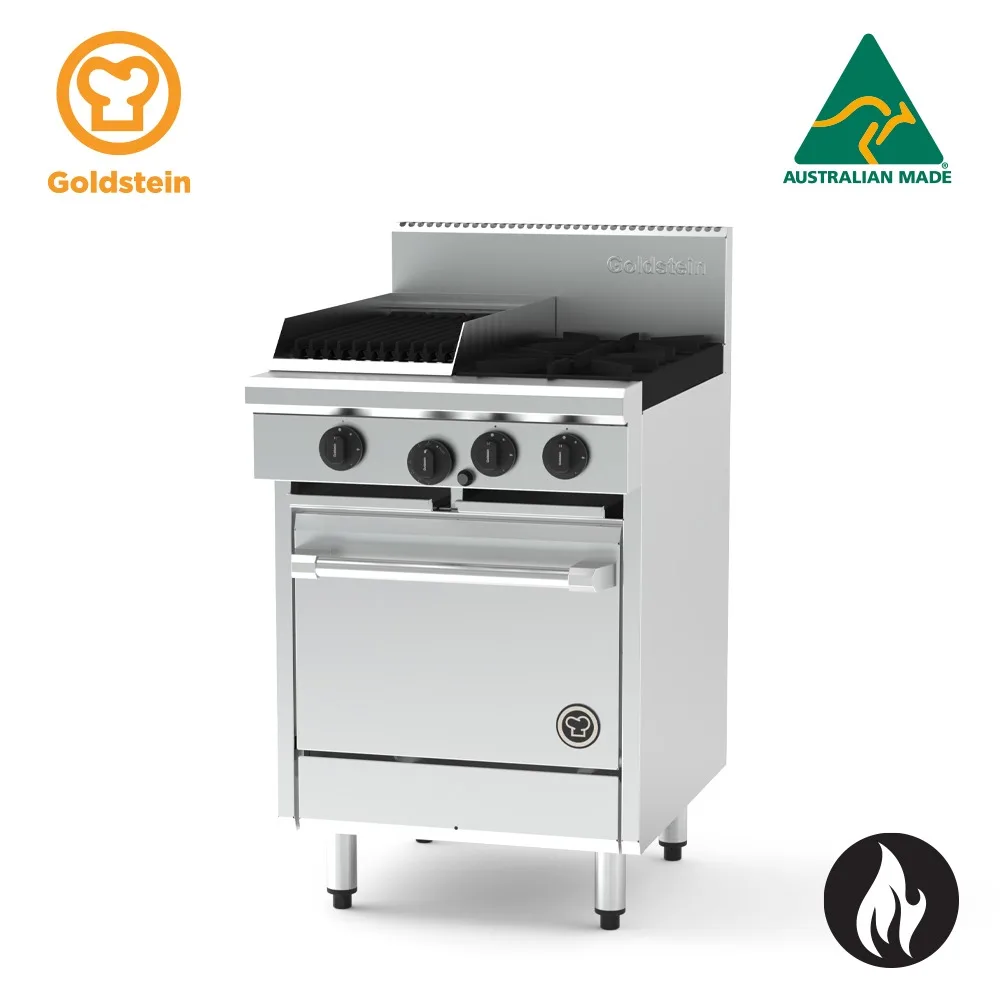

Goldstein PF12Q220-X 800 X-Series 500mm (20in) Gas Oven Range

Goldstein PF12Q220-X 800 X-Series 500mm Gas Oven Range with 2 Burners and Chargrill

The Goldstein PF12Q220-X is an Australian-made commercial gas oven range from the 800 X-Series, combining two 33 MJ open cooktop burners and a 305 x 510 mm chargrill section with a 500 mm gas static oven on a heavy-duty welded stainless steel chassis. Designed for the demands of professional kitchens, it delivers precise heat control across every cooking zone, from high-output burners to a fully insulated oven with thermostatic control between 100°C and 280°C.

The modular cooktop design supports flexible configurations, allowing operators to integrate burners, griddle plates, and chargrill sections to suit their menu. With Gastronorm-compatible oven dimensions, cast iron star trivets and reversible cast iron chargrill grates, constant pilot flame ignition, and a vitreous enamel oven interior for straightforward cleaning, the PF12Q220-X is built for sustained daily output in busy commercial environments.

Key Benefits

• Two high-output 33 MJ removable cooktop burners deliver consistent, even heat for rapid and reliable cooking across a range of tasks.
• The 305 x 510 mm chargrill with heavy-duty cast iron reversible grates offers two char pattern options and flat or gradient levelling for greater cooking control.
• A 100°C to 280°C thermostatic oven with Piezo ignition and GN 1/1 capacity allows precise baking and roasting with standard Gastronorm trays.
• Constant pilot flame technology maximises energy efficiency and ensures fast, reliable ignition every time the range is operated.
• Pilot flame failure protection on open burners and the oven burner provides an important safety safeguard for busy kitchen environments.
• Fully insulated oven and door with vitreous enamel lining retains heat evenly and makes cleaning the oven cavity quick and simple.
• Stainless steel fascia and sides, combined with spill zones and removable drip trays, keep the cooktop area easy to clean during and after service.
• Adjustable legs from 140 to 170 mm allow the range to be levelled precisely on uneven kitchen floors.
• Modular design enables the cooktop to be configured with various combinations of burners, griddle plates, and 305 mm or 610 mm chargrill sections to match changing menu requirements.

Key Features

• Australian-made commercial gas range from the Goldstein 800 X-Series
• Two removable 33 MJ open cooktop burners with 40% of flame ports concentrated in the centre cross for even heat distribution
• Cast iron star trivets for stable pot and pan support
• 305 x 510 mm chargrill section positioned on the left-hand side of the cooktop
• Heavy-duty cast iron reversible chargrill grates with two char pattern options
• Two levelling options for the chargrill: flat or gradient
• 2 x 20 MJ inline radiant burners per 305 mm chargrill section
• Ceramic rocks option available on the chargrill to increase heat retention and add flavour
• 500 mm gas static oven with thermostatic control from 100°C to 280°C
• Piezo ignition on the oven
• Oven interior and door fully insulated with vitreous enamel for even heat retention and easy cleaning
• GN 1/1 compatible oven cavity with three-position racking
• Heavy-duty chrome wire rack supports designed for easy removal
• Oven dimensions: 500 mm wide x 560 mm deep x 355 mm high
• Constant pilot flame for maximised operating efficiency and immediate ignition
• Pilot flame failure safety device on open burners and oven burner
• Heavy-duty fully welded stainless steel body for rigidity and long-term durability
• Fully welded surrounds for the griddle and chargrill sections
• Stainless steel fascia and sides with spill zones and removable drip trays
• Large heat-resistant reinforced control knobs with clearly visible high-to-low flame settings
• Ergonomic door handle and angled corners for a streamlined appearance
• Adjustable legs from 140 mm to 170 mm for precise levelling
• Flexible modular cooktop design compatible with burner, griddle plate, and 305 mm or 610 mm chargrill configurations
• Gas or electric static oven, fan-forced oven, and convection oven options available in Gastronorm-compatible sizes
• Total gas input: 126 MJ
• Overall dimensions: 610 mm wide x 800 mm deep x 1120 mm high
• Weight: 178 kg
• Designed for ease of servicing

Specifications

• Width (mm): 610
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 178
• Power / Gas Input: 126/124 MJ
• Power (kW): 126
• Country of Origin: Australia (Made)
• Fuel Type: Gas
• Number of Burners: 4
