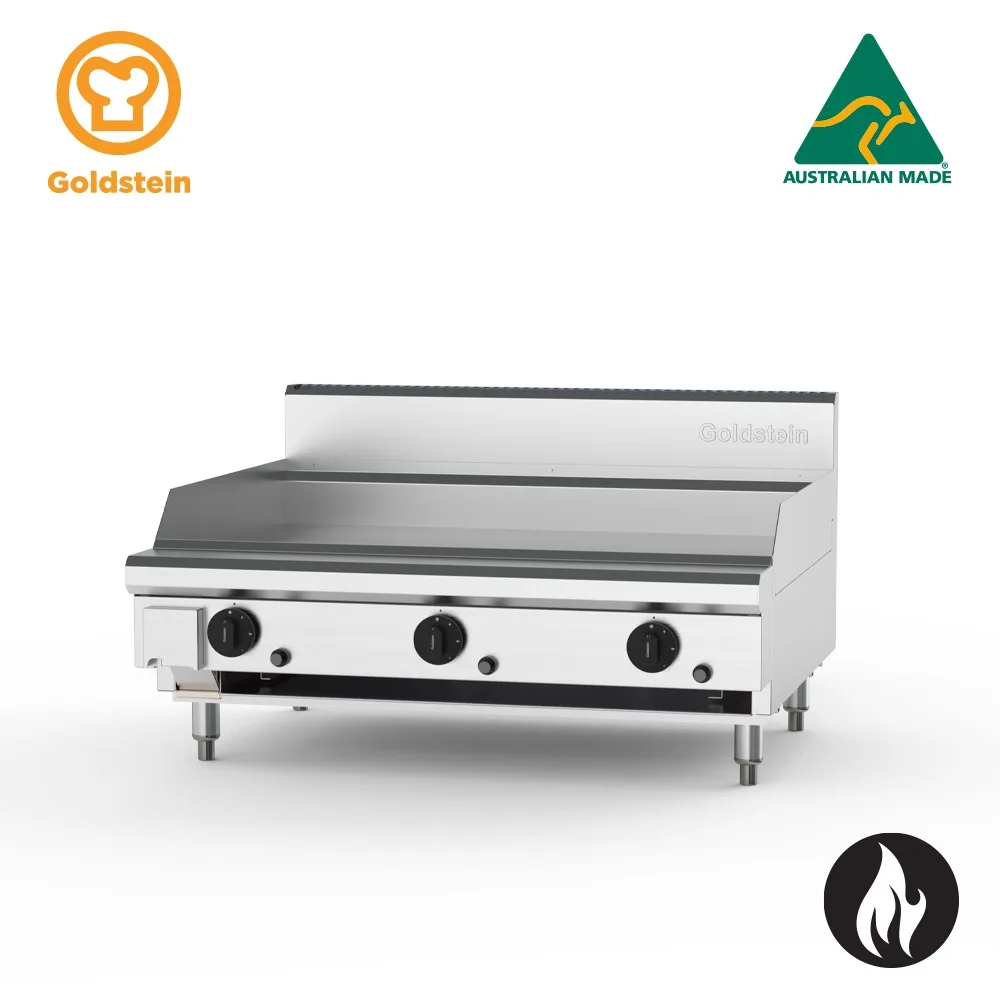

Goldstein GPGDB36-X 800 X-Series Gas Griddle Plate

Goldstein GPGDB36-X 800 X-Series Gas Griddle Plate

The Goldstein GPGDB36-X is a heavy-duty commercial gas griddle plate from the 800 X-Series, proudly manufactured in Australia. Built around a 20mm thick mild steel cooking surface measuring 914 x 520mm, it delivers outstanding heat retention and consistent, even cooking performance across the entire plate — making it ideal for high-volume breakfast service, burgers, and a wide range of grilled foods.

Constructed with a fully welded stainless steel body, fascia, and sides, the GPGDB36-X is engineered for long-term durability and ease of maintenance in demanding commercial kitchen environments. Three 20MJ burners deliver a combined 60MJ/h output, each with piezo ignition and a constant pilot flame for reliable, energy-efficient operation. The unit sits on adjustable legs and is designed for benchtop installation, with an optional stainless steel stand with under-shelf available for added flexibility.

Key Benefits

• Thick 20mm mild steel plate retains and distributes heat evenly, reducing hot spots and producing consistent cooking results across the full surface.
• Three independent burner zones allow different temperature sections to be run simultaneously, increasing menu versatility and throughput during busy service periods.
• Constant pilot flame with pilot failure safety protection maximises energy efficiency and provides peace of mind during continuous operation.
• Front grease trough with a generous chute and grease catcher simplifies fat management, reducing downtime between service periods and keeping the cooking area clean.
• Stainless steel fascia, sides, and drip trays are easy to wipe down, supporting fast turnaround and compliance with hygiene standards.
• Large, heat-resistant reinforced control knobs with clearly visible settings allow quick and accurate flame adjustments from high to low without interrupting service.
• Adjustable legs (140–170mm) allow the unit to be levelled on uneven surfaces, ensuring a stable working platform and proper grease drainage.
• Made in Australia with a fully welded heavy-duty stainless steel body, ensuring rigidity, longevity, and straightforward serviceability.
• Optional machined steel or ribbed plate surfaces, thermostatic control (120°C–280°C), and a stainless steel stand with under-shelf provide configuration flexibility to suit different operational needs.

Key Features

• 20mm thick smooth mild steel griddle plate (914 x 520mm cooking surface) for superior heat retention and even cooking
• Three 20MJ burners, one per every 305mm section, delivering a total output of 60MJ/h on both natural gas and LPG
• Piezo ignition on each burner for reliable, tool-free lighting
• Constant pilot flame per burner maximises operating efficiency; pilot flame failure safety cuts gas if the pilot extinguishes
• Fully welded heavy-duty stainless steel body, fascia, and sides for structural rigidity and long service life
• Front grease trough, generous chute, and grease catcher included for streamlined fat collection and cleaning
• Stainless steel drip trays and spill zone to contain grease and simplify maintenance
• Large, heat-resistant reinforced control knobs with easy-to-read settings and full high-to-low flame control
• Adjustable legs ranging from 140mm to 170mm for levelling on uneven bench surfaces
• 3/4 BSP gas connection compatible with natural gas and LPG
• Benchtop/countertop installation design
• Designed for easy servicing in the field
• Made in Australia
• Optional configurations available: machined steel plate, ribbed plate, thermostatic control (120°C–280°C), and stainless steel stand with under-shelf (unit height on stand: 1120mm)

Specifications

• Width (mm): 914
• Depth (mm): 800
• Height (mm): 545
• Weight (kg): 150
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4 BSP
• Ignition Type: Piezo
• Burner Output (MJ/h): 60
• Shipping Weight: 200
• Packed Width (mm): 980.0
• Packed Height (mm): 870.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 0.767340000m3
• Power / Gas Input: 60/60 MJ
• Power Rating: 60 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 60
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: N/A (Open flame)
• Installation Type: Countertop
• Control Type: Thermostat
• Mounting Type: Benchtop
• Fuel Type: Gas
• Number of Burners: 3
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 915 x 533
