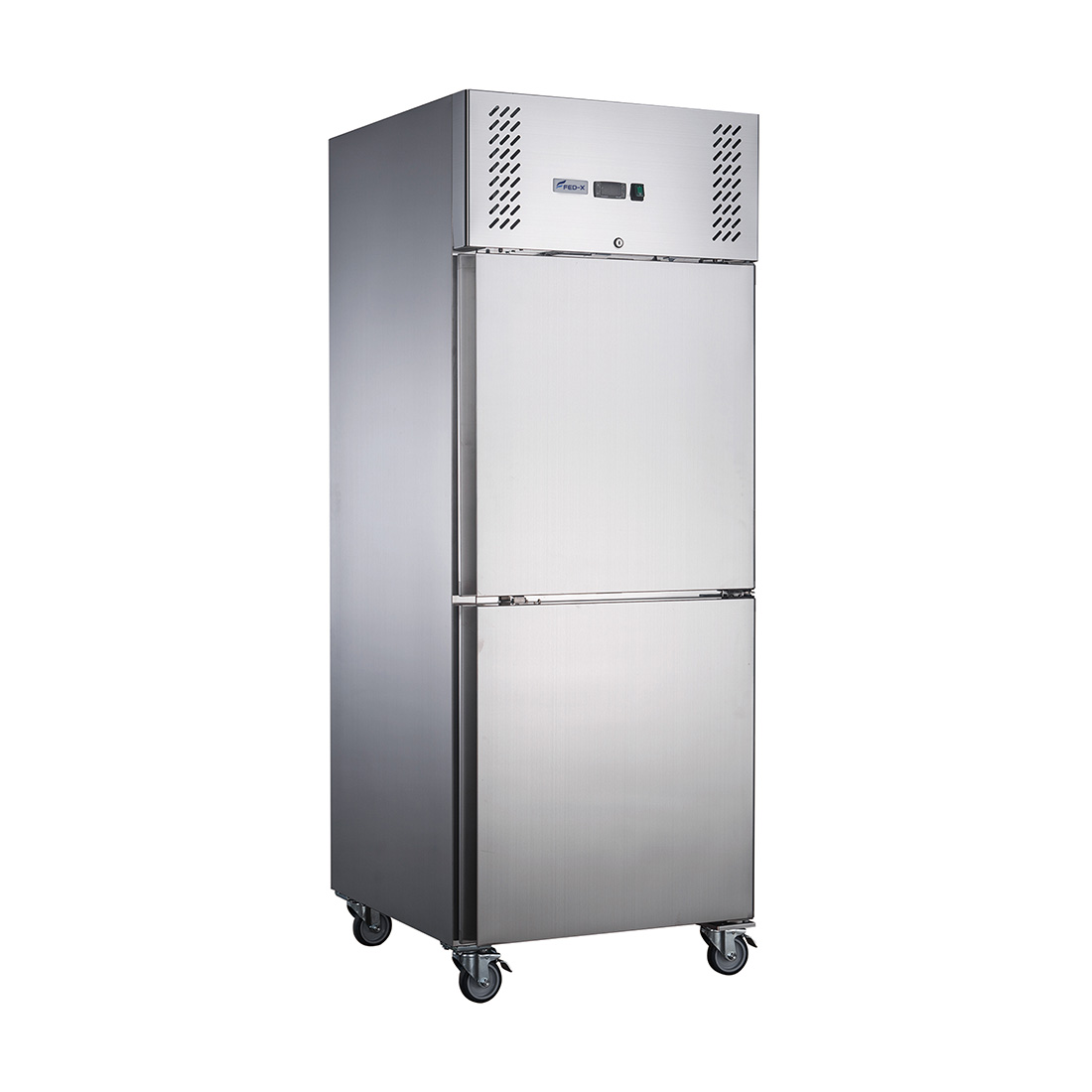

FED-X XURF650S1V S/S Split Two-Door Upright Freezer

FED-X XURF650S1V Stainless Steel Split Two-Door Upright Freezer 650L

The FED-X XURF650S1V is a 650L gross capacity (465L net) commercial upright freezer built for high-demand hospitality environments including restaurants, hotels, catering operations and production kitchens. Constructed entirely from stainless steel inside and out, it is tropicalised for Australian conditions and rated to operate in ambient temperatures up to 43°C at 60% relative humidity, making it equally at home in hot, humid commercial kitchens.

The defining feature of this unit is its 1/2 split door system, which divides the cabinet into two independently accessed sections to dramatically reduce cold air loss during busy service periods and can lower yearly running costs by up to 30%. Paired with a Dixell digital controller, EBM-PAPST fan-forced cooling, eco-friendly R290 refrigerant and 60mm HFC- and CFC-free foam insulation, the XURF650S1V delivers precise, efficient and environmentally responsible freezing performance.

Key Benefits

• Split door design limits cold air escape each time the cabinet is accessed, reducing temperature recovery time and cutting annual energy costs by up to 30% compared with a single full-width door.
• Fan-forced cooling with EBM-PAPST evaporator and condenser fans distributes cold air evenly throughout the cabinet, maintaining consistent product quality across all shelf levels.
• Gastronorm-compatible shelving accommodates 2 x 1/1 GN pans per level across three shelf tiers, streamlining prep, storage and service workflows without the need for separate containers.
• Dixell digital controller with internal lighting gives kitchen staff clear, accurate temperature monitoring at a glance, supporting food safety compliance during service.
• Automatic defrost eliminates manual defrost cycles, reducing maintenance downtime and keeping the unit operating at peak efficiency throughout the working day.
• Rounded interior stainless steel corners and integrated flush door handles remove hard-to-clean crevices, cutting cleaning time and supporting strict hygiene standards.
• Heavy-duty castors with front-wheel brakes allow safe repositioning within tight kitchen spaces while keeping the unit locked securely in place during operation.
• R290 natural refrigerant and HFC- and CFC-free foam insulation reduce environmental impact and align with increasingly stringent sustainability requirements in commercial food service.
• Comprehensive warranty of 2 years parts and labour plus 2 years parts only (when registered within 14 days of invoice) provides long-term peace of mind for commercial operators.

Key Features

• Gross volume 650L; net volume 465L
• Temperature range -18°C to -22°C
• Maximum ambient operating temperature 43°C at 60% relative humidity; tropicalised for Australian conditions
• Full stainless steel interior and exterior construction with rounded internal corners for easy cleaning
• 1/2 split door system across two independently sealed sections
• Self-closing, lockable doors with heavy-duty magnetic door seals

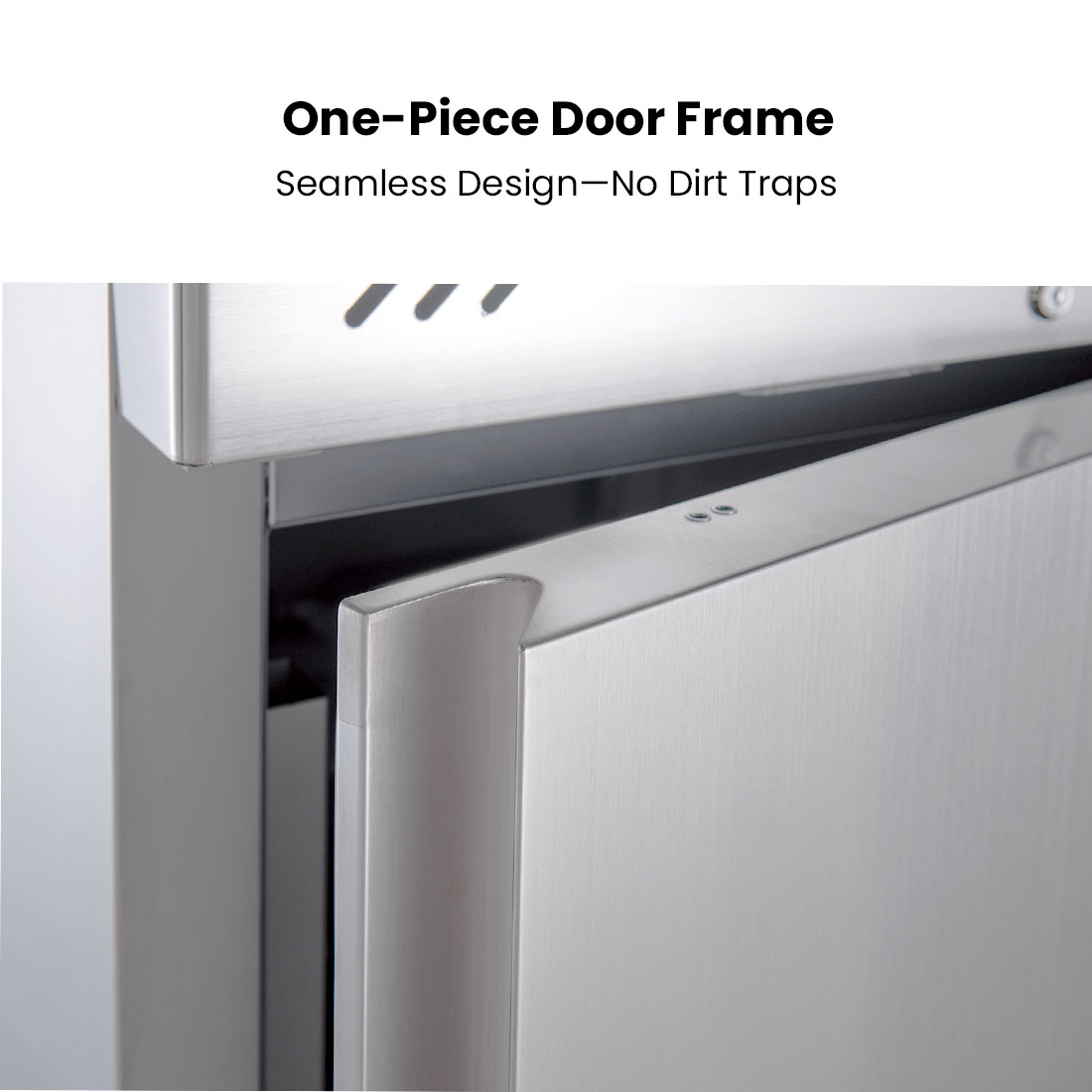

• Integrated door handles designed to minimise dirt traps and simplify cleaning

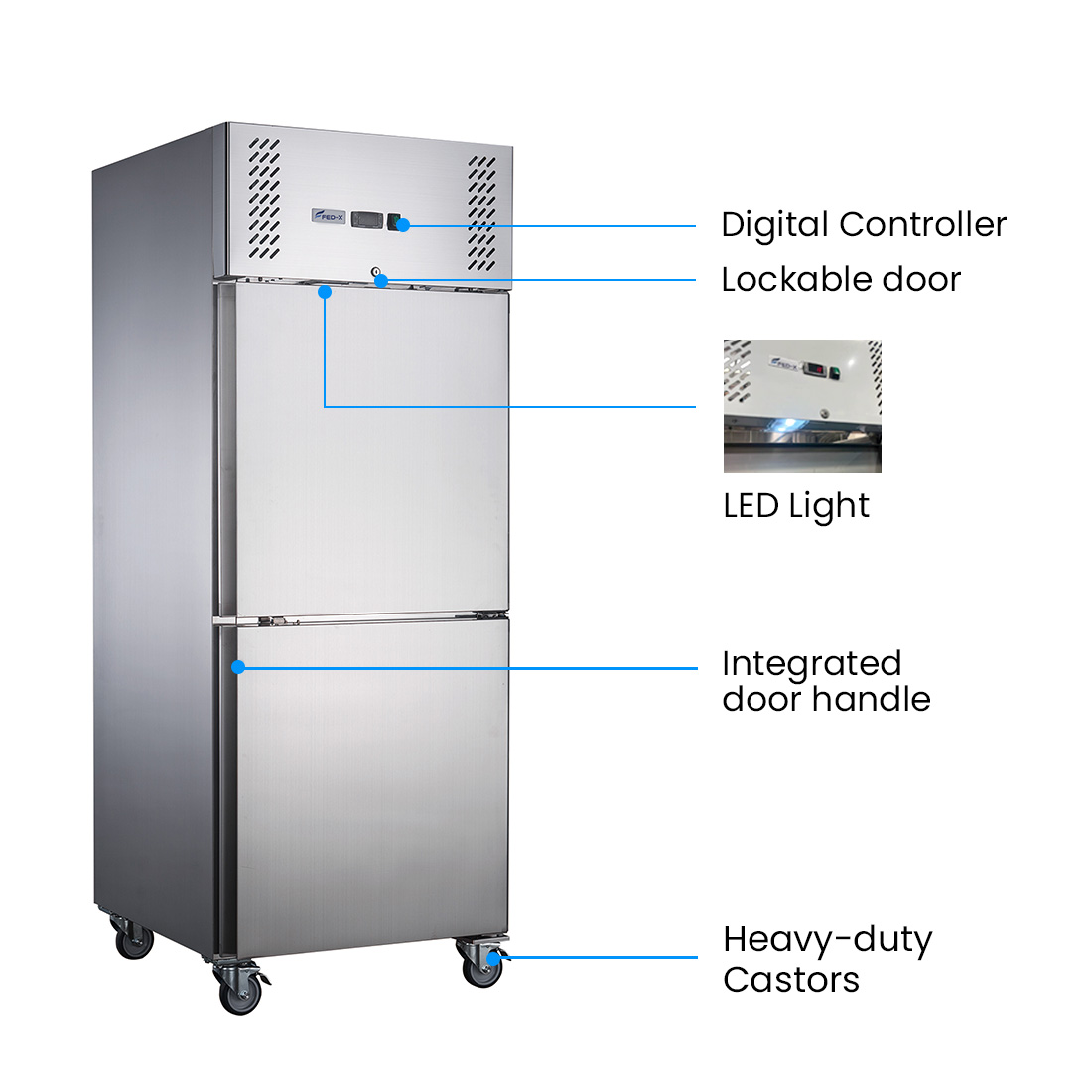

• Dixell digital temperature controller with LED display
• Internal cabinet lighting
• Fan-forced cooling system using EBM-PAPST evaporator and condenser fans

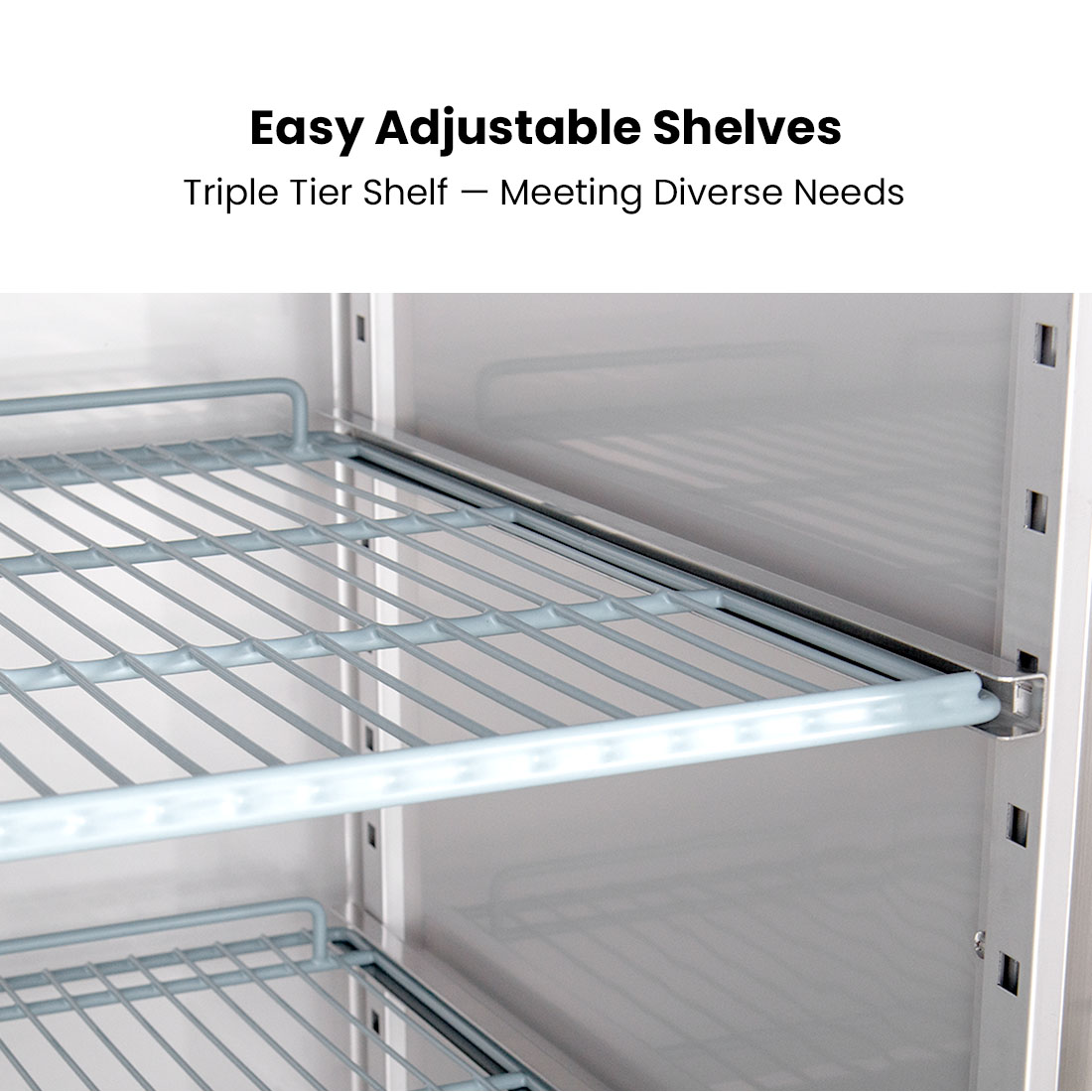

• Three shelf levels plus floor level; shelves and supports sized to hold 2 x 1/1 GN pans per level
• Maximum weight loading of 40kg per shelf
• Automatic defrost with self-evaporating drainage
• 60mm foam body insulation free of HFCs and CFCs
• Environmentally friendly R290 refrigerant
• Heavy-duty castors with front-wheel brakes for safe mobility and positioning
• Power supply: 240V, 495W / 10A
• Internal dimensions: 624mm W x 702mm D x 1401mm H

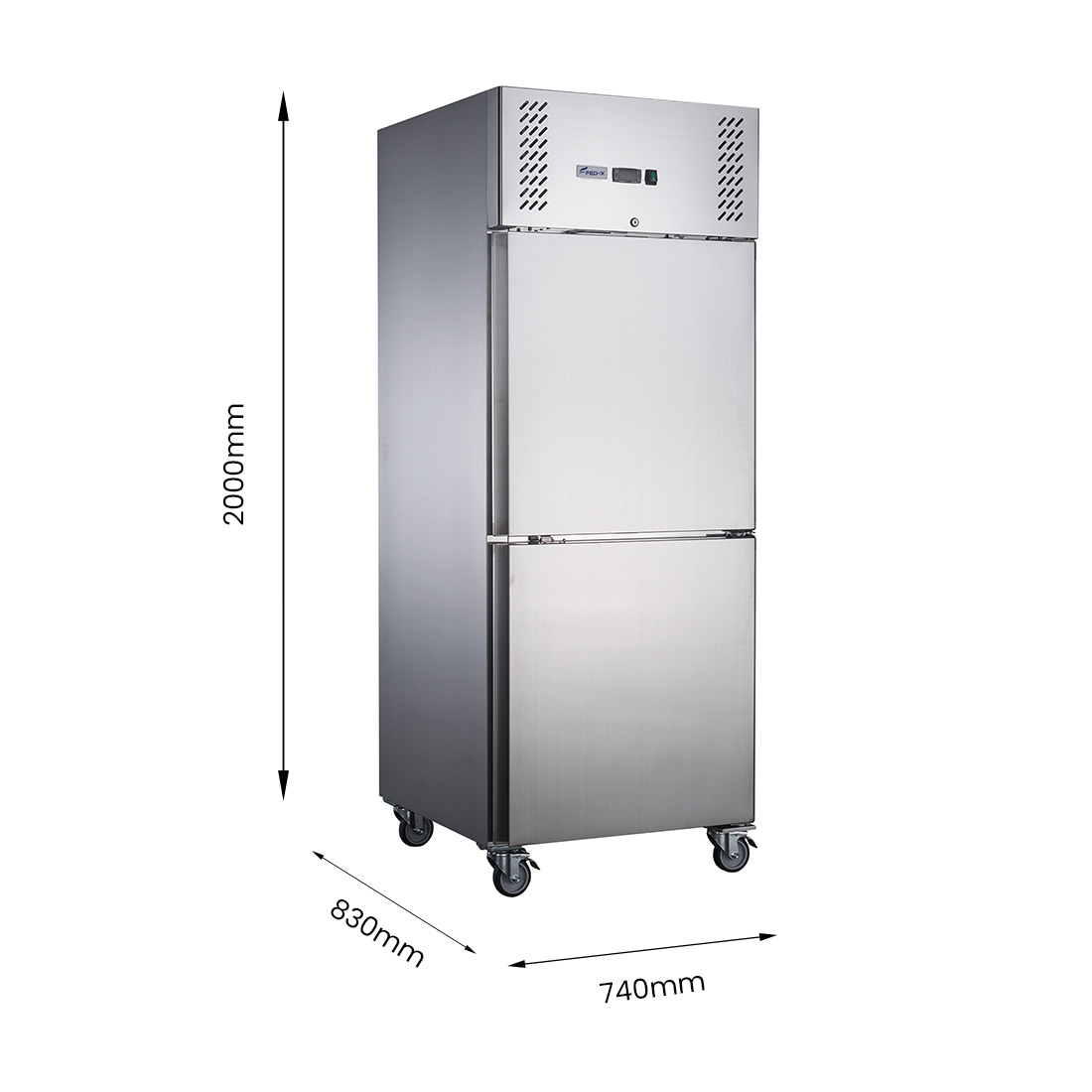

• External dimensions: 740mm W x 830mm D x 2000mm H
• 2 years parts and labour plus 2 years parts only warranty when product is registered within 14 days of invoice

Specifications

• Width (mm): 740
• Depth (mm): 830
• Height (mm): 2000
• Weight (kg): 338.5
• Packed Width (mm): 765
• Packed Depth (mm): 855
• Packed Height (mm): 2070
• Shipping Weight: 126
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• No. of Doors: 5712
• Defrost Type: Auto
• Cooling Type: Fan Forced
• Temperature Range: Refrigerated from -22°C to 18°C
• Power Delivery: 240V, 495W/10A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Capacity (Litres): 650
