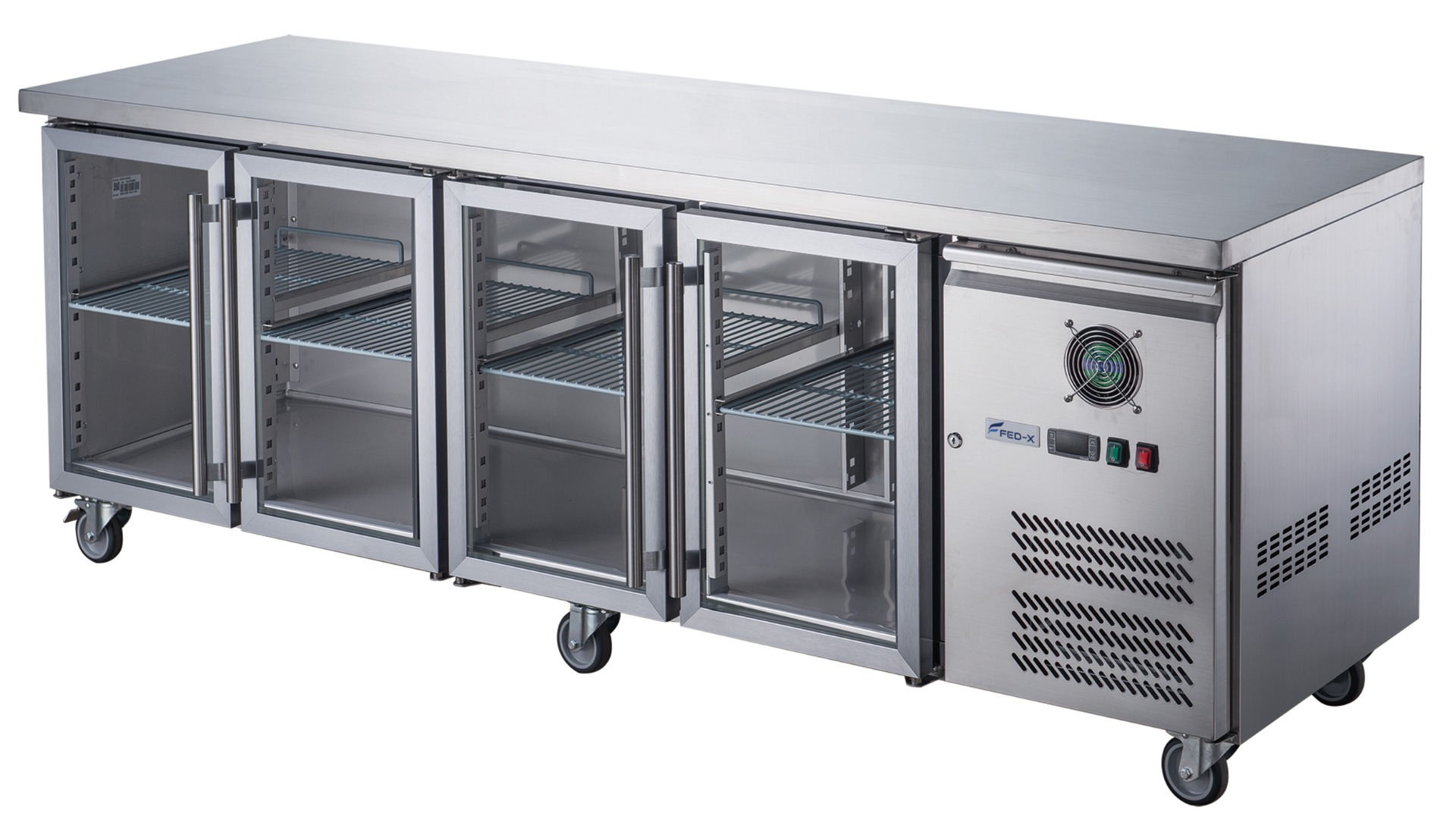

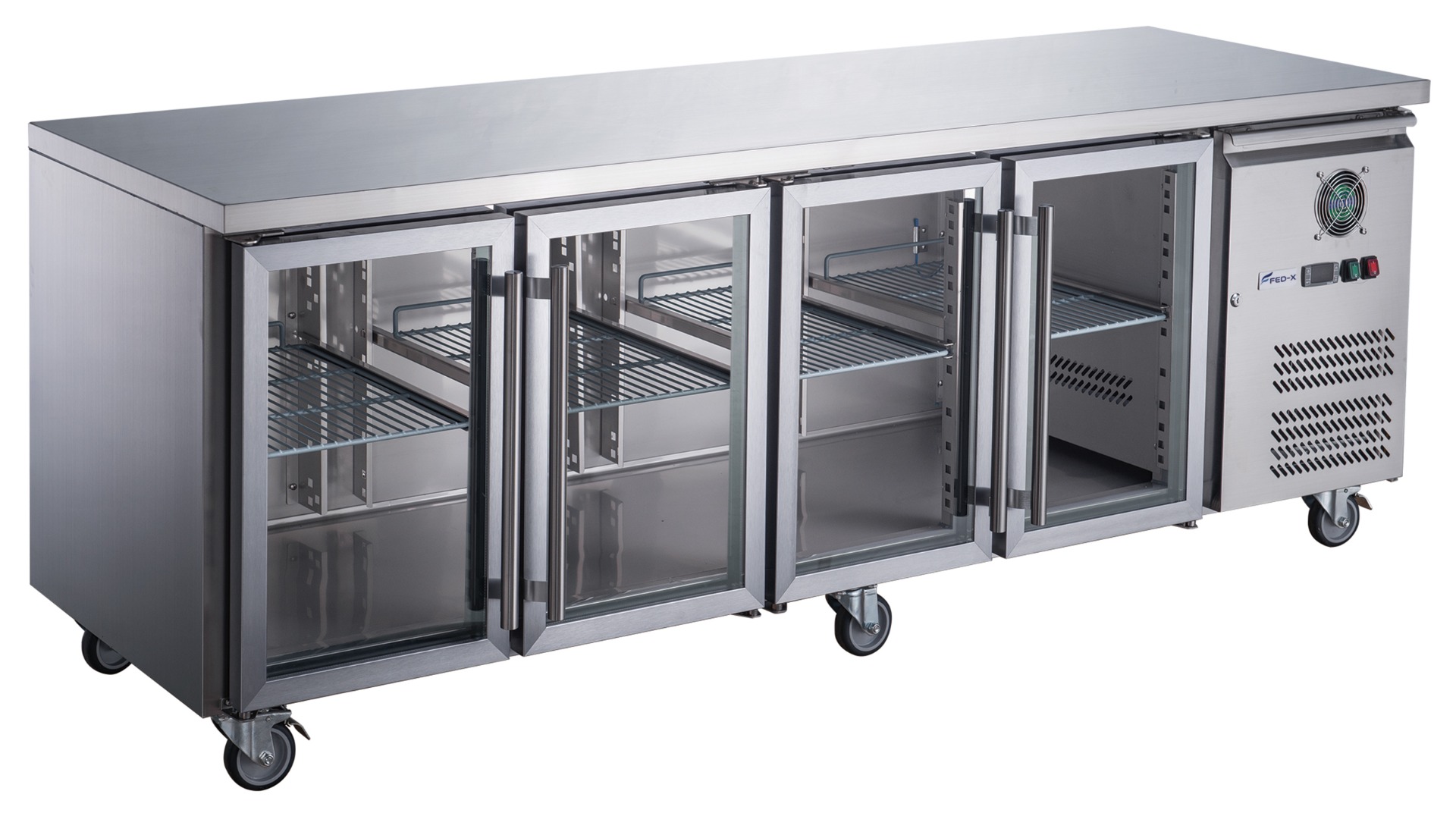

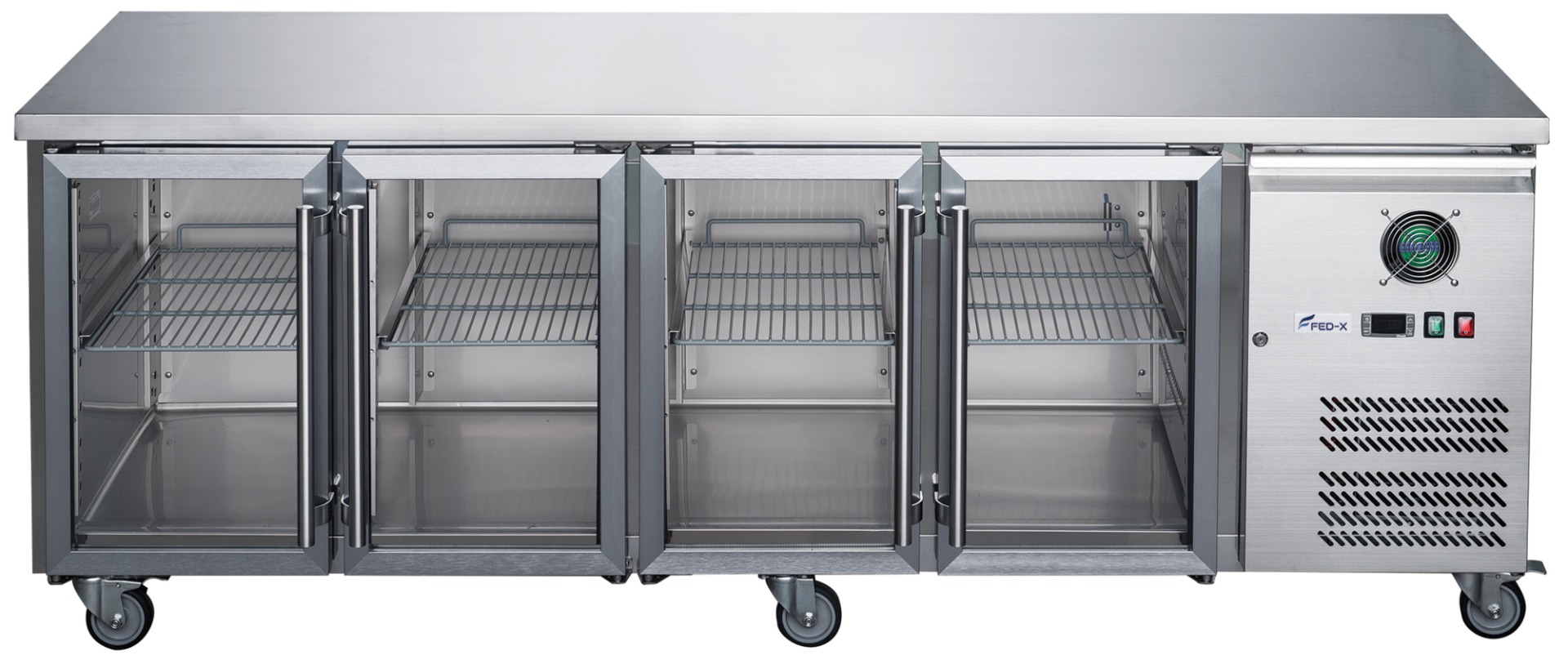

FED-X XUB7C22G4V Four Glass Door Bench Fridge

FED-X XUB7C22G4V Four Glass Door Bench Fridge

The FED-X XUB7C22G4V is a 553-litre commercial underbench fridge designed for high-demand food service environments including restaurants, cafes, fast food outlets, butcheries and convenience stores. Its four self-closing glass doors give staff instant visibility of stored product, while fan-forced cooling with an EBM-PAPST evaporator eliminates warm spots and maintains a consistent temperature range of -2°C to +8°C. Tropicalised for Australian conditions with a maximum ambient rating of 43°C and 60% RH, the unit is built to perform reliably in hot commercial kitchens.

Constructed with a stainless steel interior and exterior featuring rounded internal corners, the XUB7C22G4V is straightforward to clean and tough enough to handle the rigours of a busy operation. The Dixell digital controller makes temperature setting simple and precise, while automatic defrost and self-evaporating drainage keep ongoing maintenance to a minimum. Heavy-duty front-brake castors allow the unit to be rolled out easily for cleaning or servicing, and its underbench profile means it fits neatly beneath an existing counter or flush against a wall. Optional splashback tops and solid drawer configurations are available on request.

Key Benefits

• Four glass doors give staff and operators immediate visibility of stored contents, speeding up service and simplifying stock takes without opening the cabinet.
• Fan-forced cooling with EBM-PAPST evaporator and condenser fans distributes cold air evenly throughout the cabinet, eliminating warm spots and keeping food safe across all four sections.
• Tropicalised for Australian conditions and rated to 43°C ambient temperature, so performance stays consistent even in hot commercial kitchen environments.
• Automatic defrost and self-evaporating drainage reduce hands-on maintenance, keeping the unit running efficiently without frequent manual intervention.
• Dixell digital controller provides accurate, user-friendly temperature management, allowing staff to monitor and adjust settings quickly during a busy service.
• Stainless steel worktop surface doubles as additional food preparation or plating space above the fridge, making the most of limited kitchen bench area.
• Heavy-duty front-brake castors allow the entire unit to be repositioned or rolled out for thorough cleaning and maintenance without heavy lifting.
• GN1/1-compatible shelving rated at 40 kg per shelf, with one shelf per door section, provides flexible and organised storage for standard gastronorm pans.
• R290 refrigerant combined with 60 mm CFC and HCFC-free foam insulation supports energy-efficient, environmentally responsible operation.

Key Features

• 553-litre net capacity (554-litre gross) across four independently accessed sections

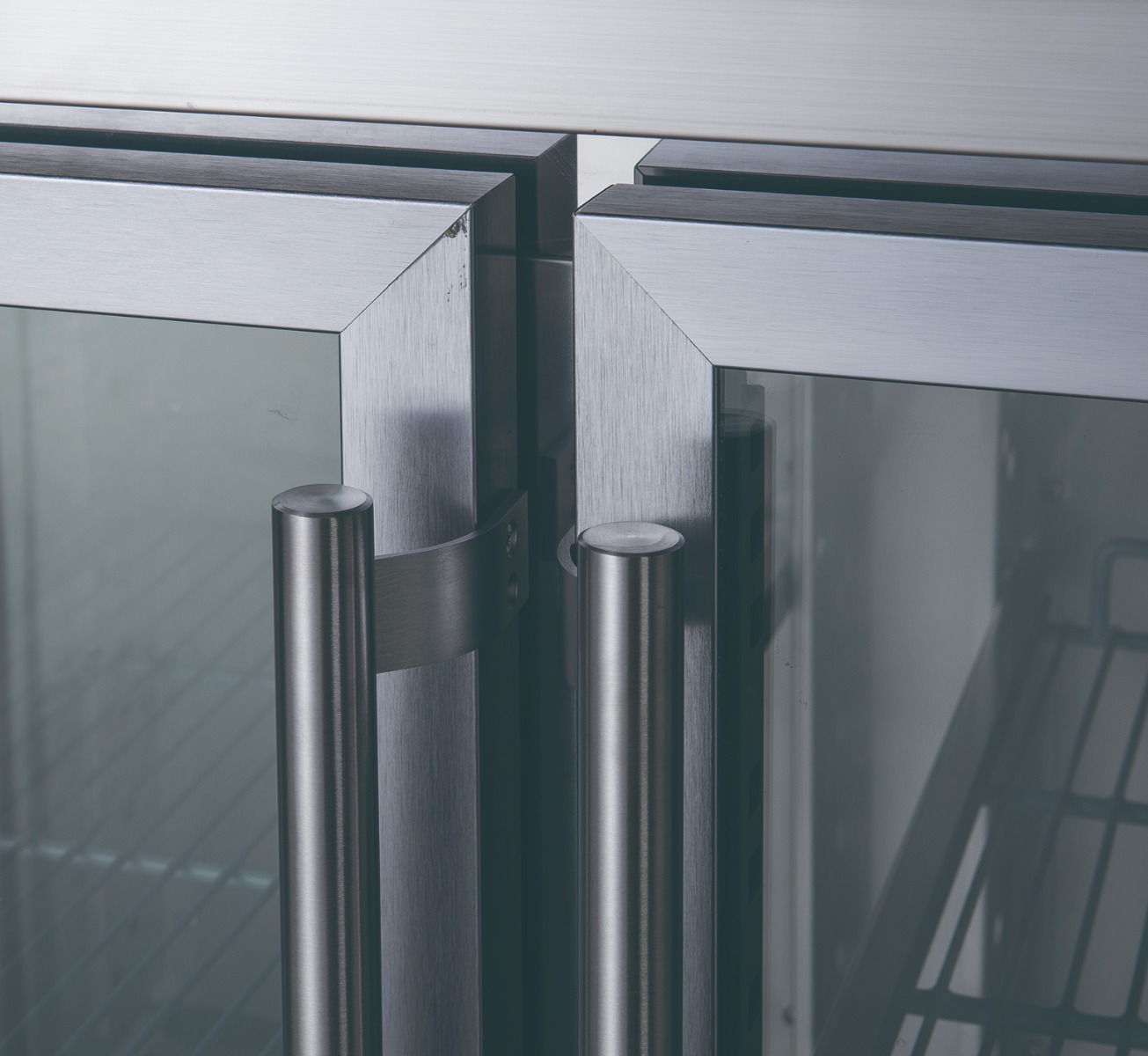

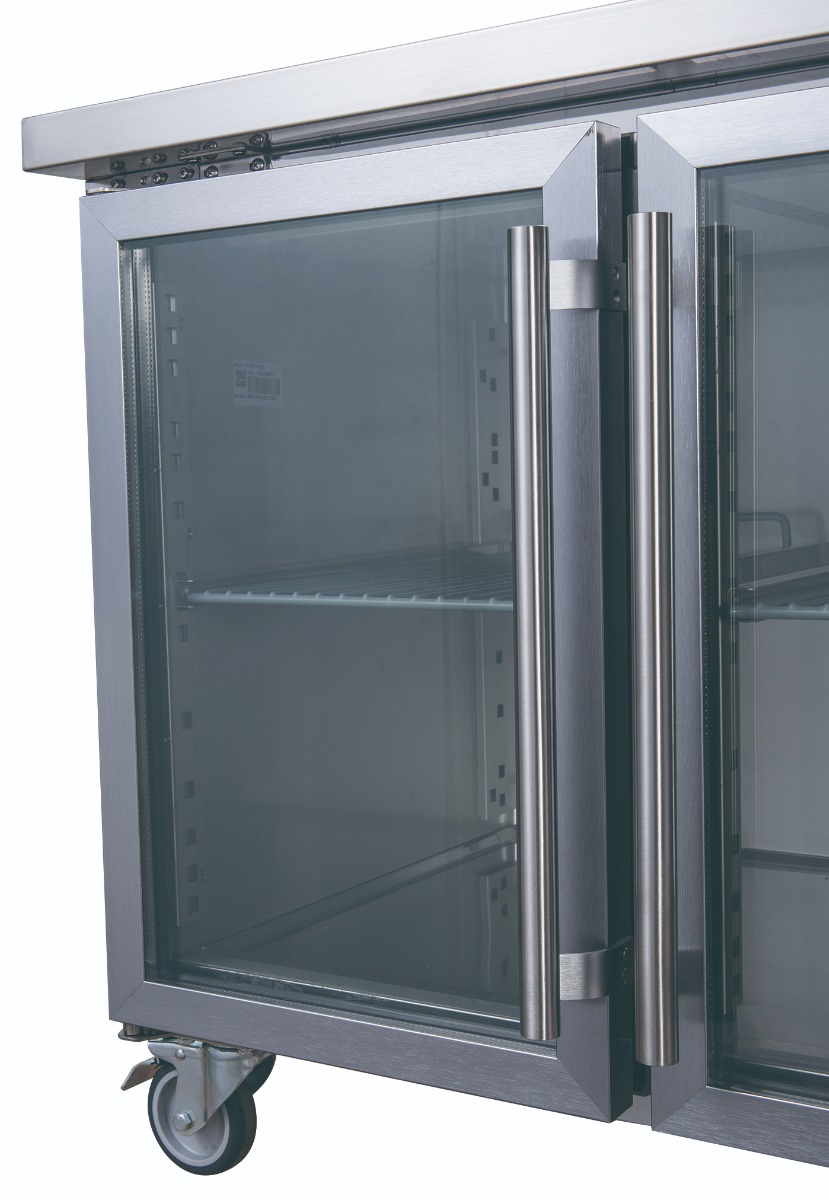

• Four see-through, self-closing glass doors with heavy-duty magnetic seals to maintain optimal cold retention
• Fan-forced cooling system with EBM-PAPST evaporator and condenser fans for uniform air distribution
• Temperature range of -2°C to +8°C; maximum ambient operating temperature 43°C at 60% RH
• Dixell digital controller for precise, user-friendly temperature monitoring and adjustment
• Embraco/Secop compressor with rapid temperature recovery rate
• Automatic defrost function with self-evaporating drainage for low-maintenance operation
• Stainless steel interior and exterior construction with rounded internal corners for easy cleaning
• 60 mm foam body insulation that is HFC and CFC free

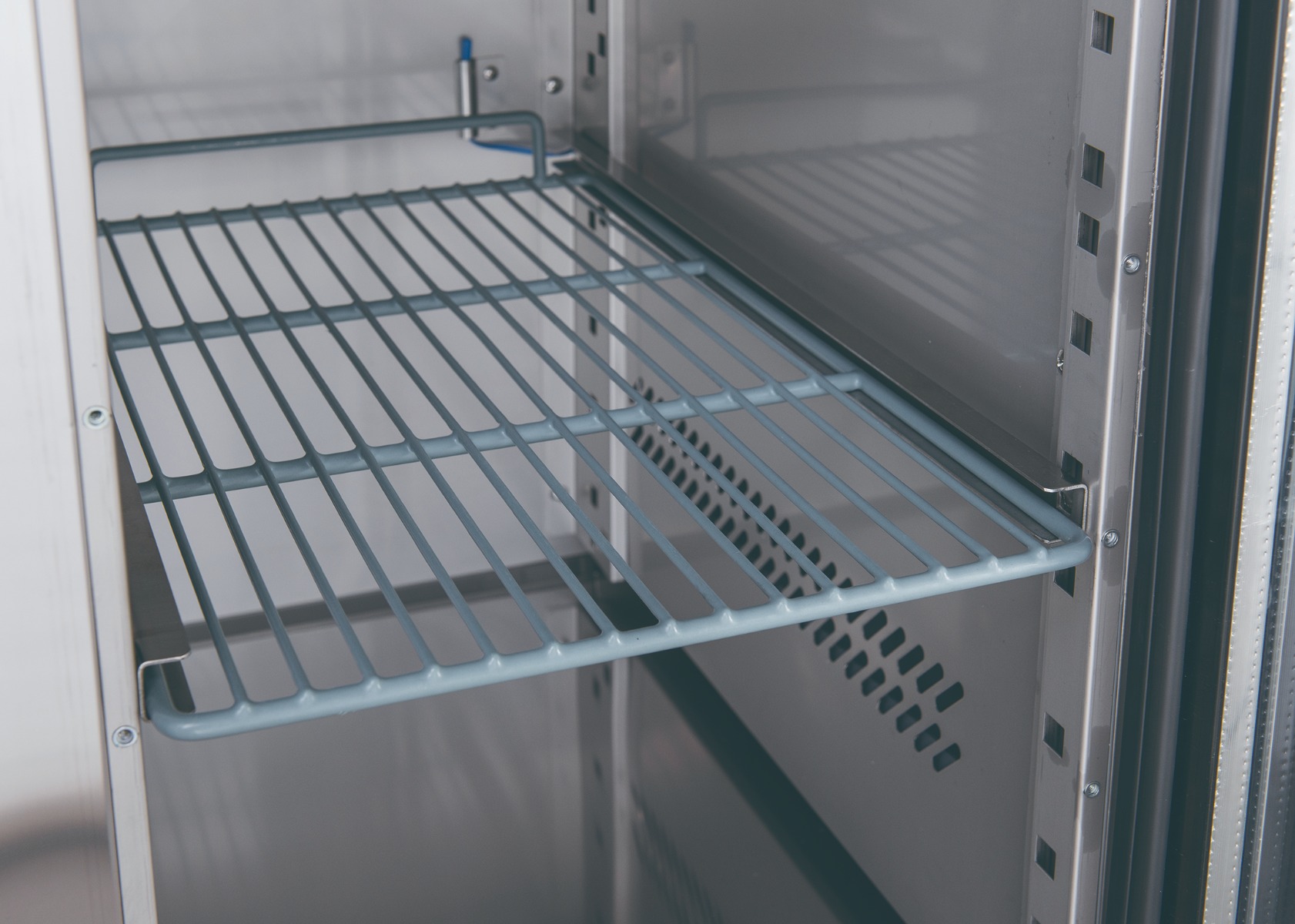

• One GN1/1-compatible shelf per door section; each shelf rated to 40 kg
• Internal LED lighting for clear illumination of stored product
• Stainless steel worktop suitable for food preparation or plating
• Heavy-duty castors with front-wheel brakes for safe repositioning and cleaning access
• Underbench profile fits beneath existing counters or flush against a wall; 100 mm rear wall clearance required for ventilation
• R290 refrigerant for efficient and environmentally responsible cooling
• Tropicalised for Australian climate conditions
• Meets food, health and safety standards
• Optional splashback tops available; 2- and 3-drawer solid configurations available in lieu of a door on request
• Power: 240V, 345W / 2.0A
• External dimensions: 2230 mm W x 700 mm D x 850 mm H
• Internal dimensions: 1669 mm W x 580 mm D x 564 mm H
• Weight: 158 kg
• Warranty: 2 years parts and labour plus 2 years parts only for units registered within 14 days of invoice

Specifications

• Width (mm): 2230
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 340
• Packed Width (mm): 2260
• Packed Depth (mm): 730
• Packed Height (mm): 910
• Shipping Weight: 158
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• No. of Doors: 5714
• Cooling Type: Fan Forced
• Power Delivery: 240V; 345W/2.0A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Capacity (Litres): 553
