FED-X XSS8C20S3V S/S Three Door Sandwich Counter

FED-X XSS8C20S3V Stainless Steel Three Door Sandwich Counter

The FED-X XSS8C20S3V is a heavy-duty stainless steel three door sandwich prep counter engineered for high-volume commercial kitchens, sandwich bars, salad stations, cafés, pizzerias and quick-service venues. With a 580L gross capacity, a temperature range of +2 to +8°C and a maximum ambient rating of 43°C at 60% RH, it is fully tropicalised for demanding Australian conditions and keeps ingredients food-safe even during the busiest service periods.

Built with stainless steel on both the interior and exterior, the unit features rounded internal corners for effortless cleaning, 60mm HFC and CFC-free foam insulation for energy efficiency, and a Dixell digital controller paired with a Cubigel compressor for precise, reliable temperature management. The refrigerated prep rail accepts 1/3 GN pans up to 150mm deep, while the display top retains temperature for up to four hours from a pre-chilled environment, making it a versatile and practical centrepiece for any prep line.

Key Benefits

• Fan-forced ventilated cooling delivers even temperature distribution throughout the cabinet, keeping all stored ingredients consistently food-safe during extended peak service.
• A maximum ambient rating of 43°C with 60% RH means the unit performs reliably in hot, humid Australian commercial kitchen environments without compromising refrigeration.
• The refrigerated prep rail accommodates 1/3 GN pans up to 150mm deep, placing ingredients within easy reach to speed up assembly and reduce service time.
• Self-closing doors with heavy-duty magnetic seals minimise warm air infiltration, supporting rapid temperature recovery and lower energy consumption.
• The display top holds temperature for up to four hours from a pre-chilled state, providing a practical cold-holding surface for prepared ingredients between rushes.
• Each door includes one GN 1/1-compatible shelf with a 40kg weight rating per shelf, maximising below-counter storage for backup stock without overloading the unit.
• Heavy-duty castors with front wheel brakes allow effortless repositioning for thorough cleaning, while keeping the unit firmly in place during service.
• Rounded internal corners across the stainless steel interior reduce product build-up and make routine cleaning faster and more thorough, supporting food safety compliance.
• Plug-in 240V, 10A connection requires no hardwiring, simplifying installation and allowing flexible placement throughout the kitchen.

Key Features

• Gross capacity: 580L
• Temperature range: +2 to +8°C
• Maximum ambient operating temperature: 43°C at 60% RH, tropicalised for Australian conditions

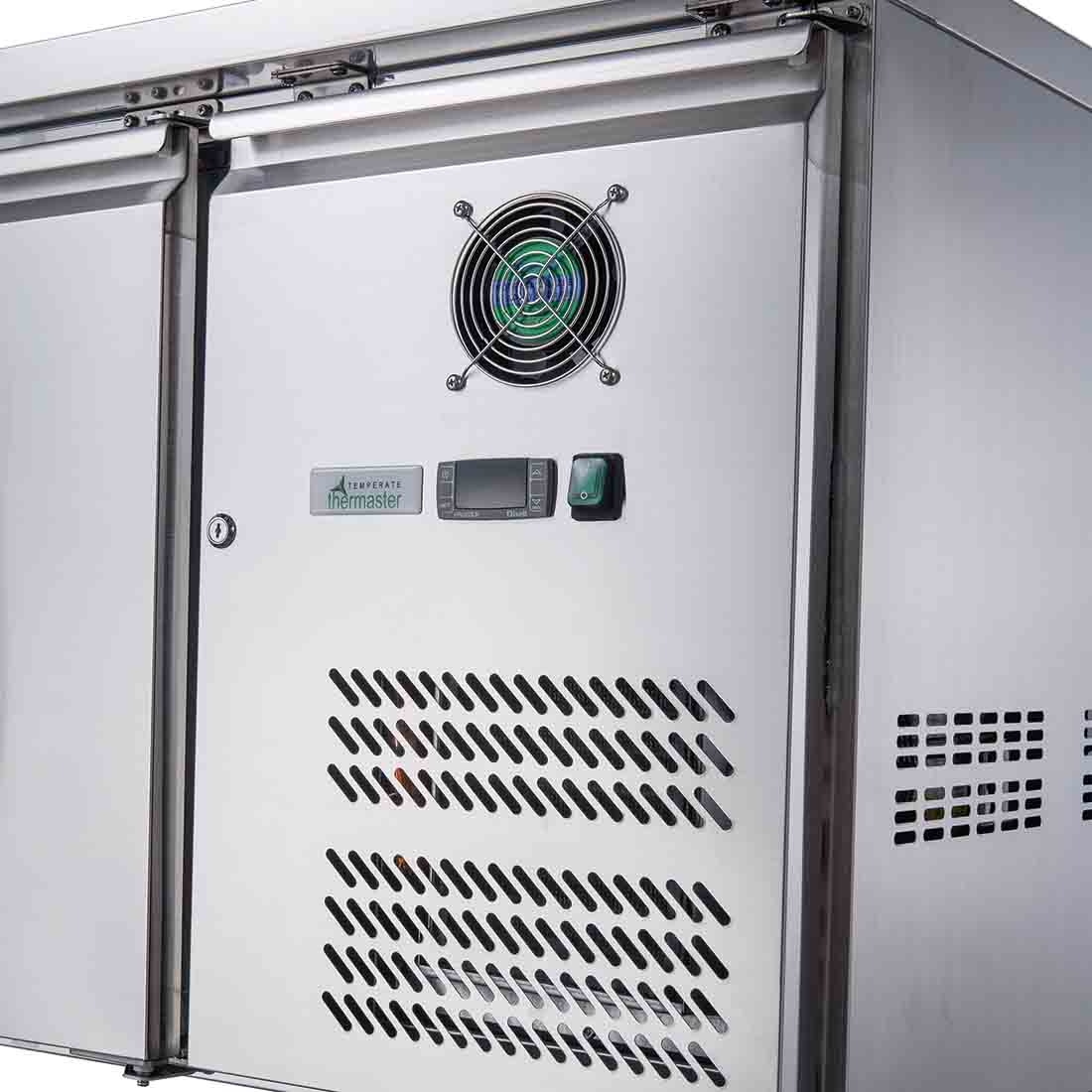

• Fan-forced cooling system with rapid temperature recovery rate
• Compressor: Cubigel

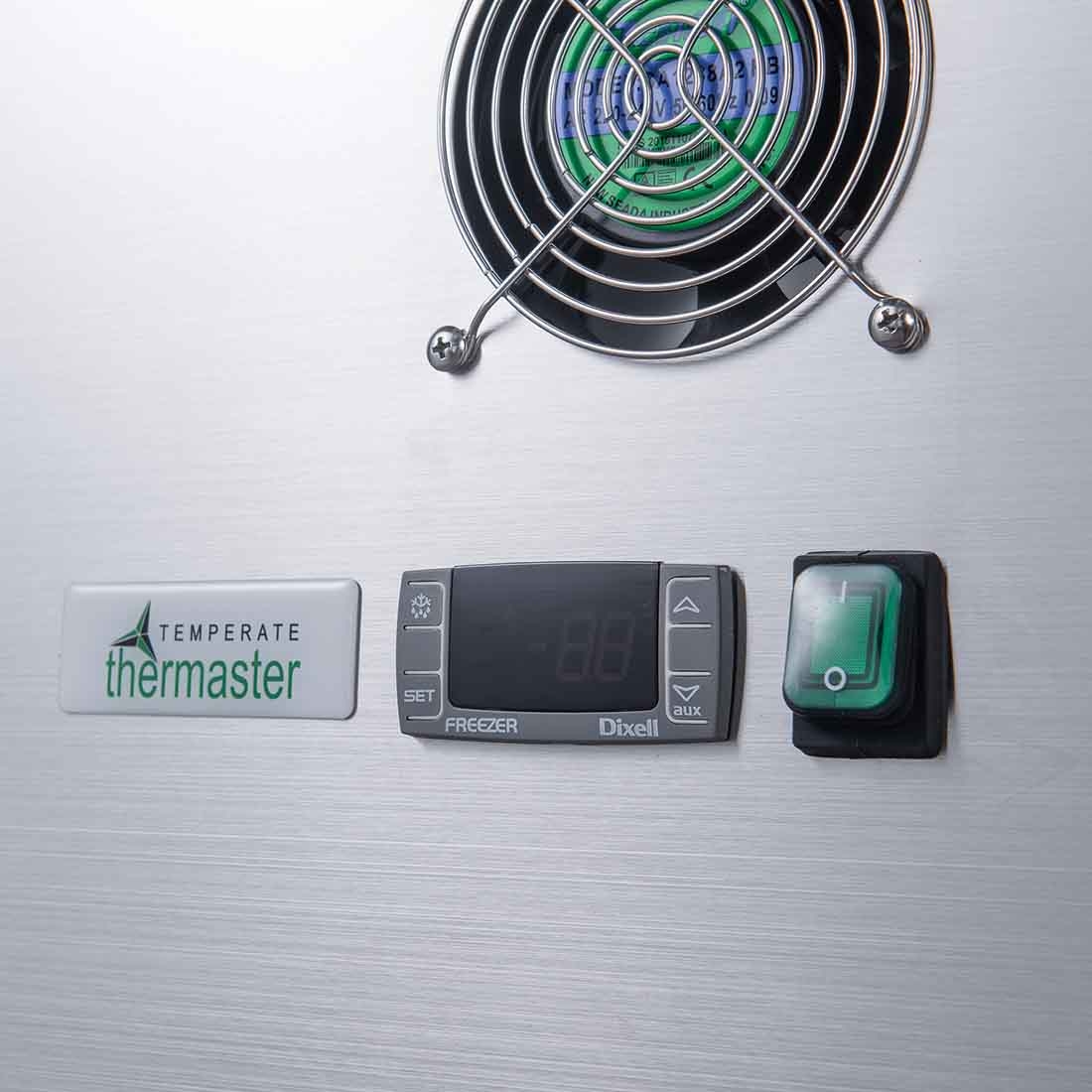

• Controller: Dixell digital temperature controller with user-friendly interface
• EBM-PAPST evaporator and condenser fans
• Refrigerant: R290 (natural, low global-warming-potential refrigerant)
• Stainless steel interior and exterior construction with rounded corners for easy cleaning
• 60mm HFC and CFC-free foam body insulation for improved thermal efficiency

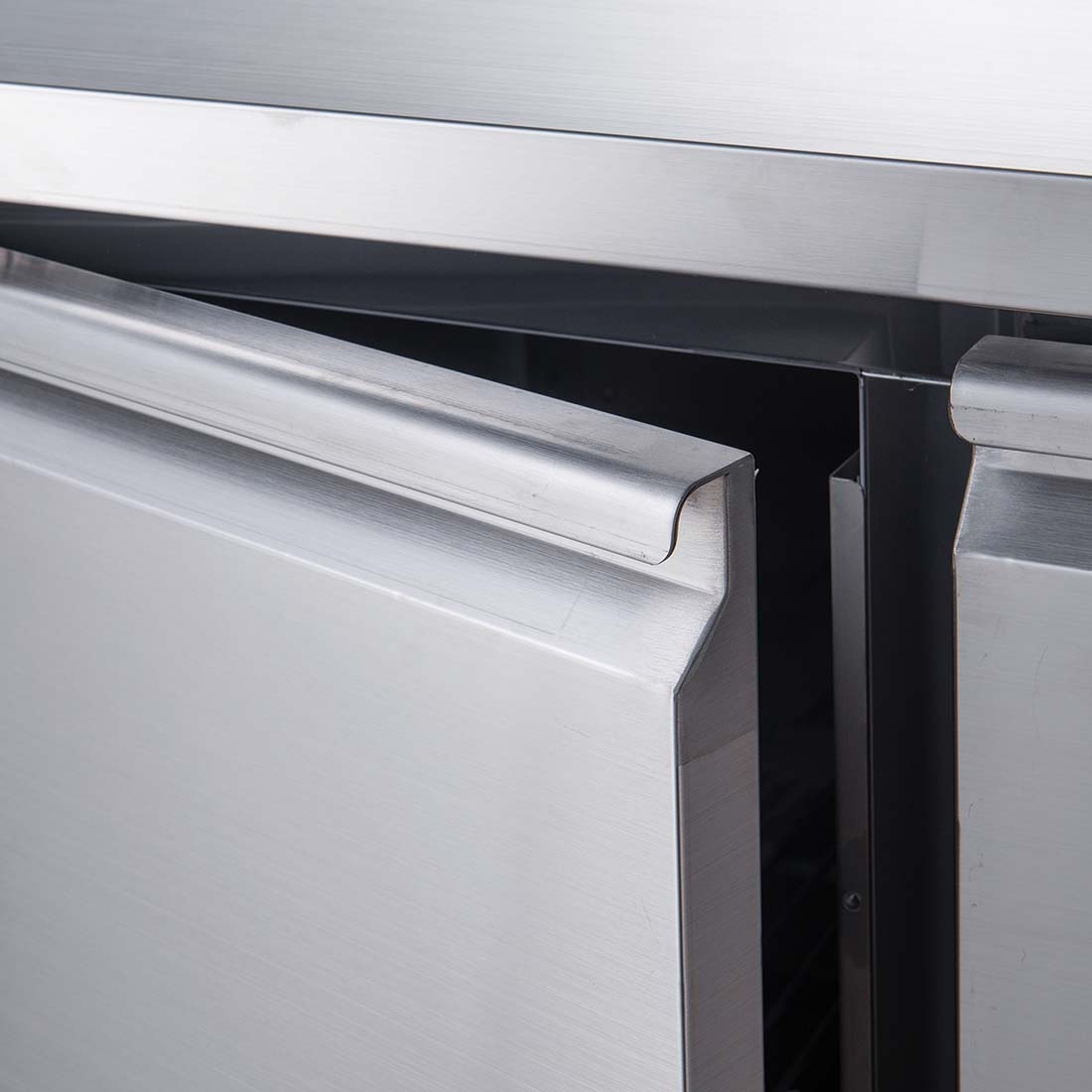

• Three hinged self-closing doors with heavy-duty magnetic door seals
• Refrigerated prep rail compatible with 1/3 GN pans up to 150mm deep

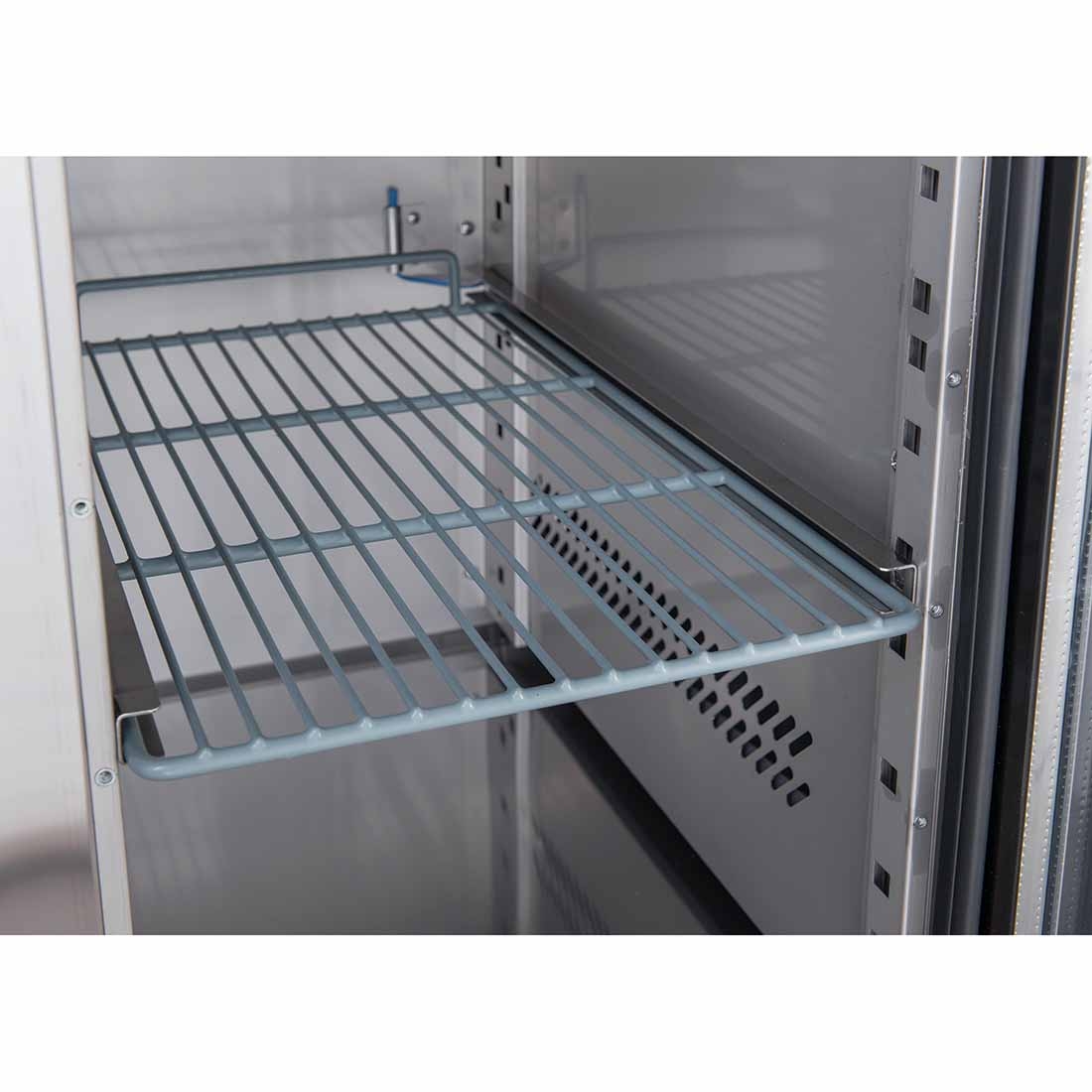

• One shelf per door compartment, each GN 1/1 pan compatible
• Maximum weight loading per shelf: 40kg
• Display top retains temperature for up to 4 hours from a pre-chilled environment
• Internal dimensions: 1459mm W x 680mm D x 564mm H
• External dimensions: 2020mm W x 800mm D x 1406mm H

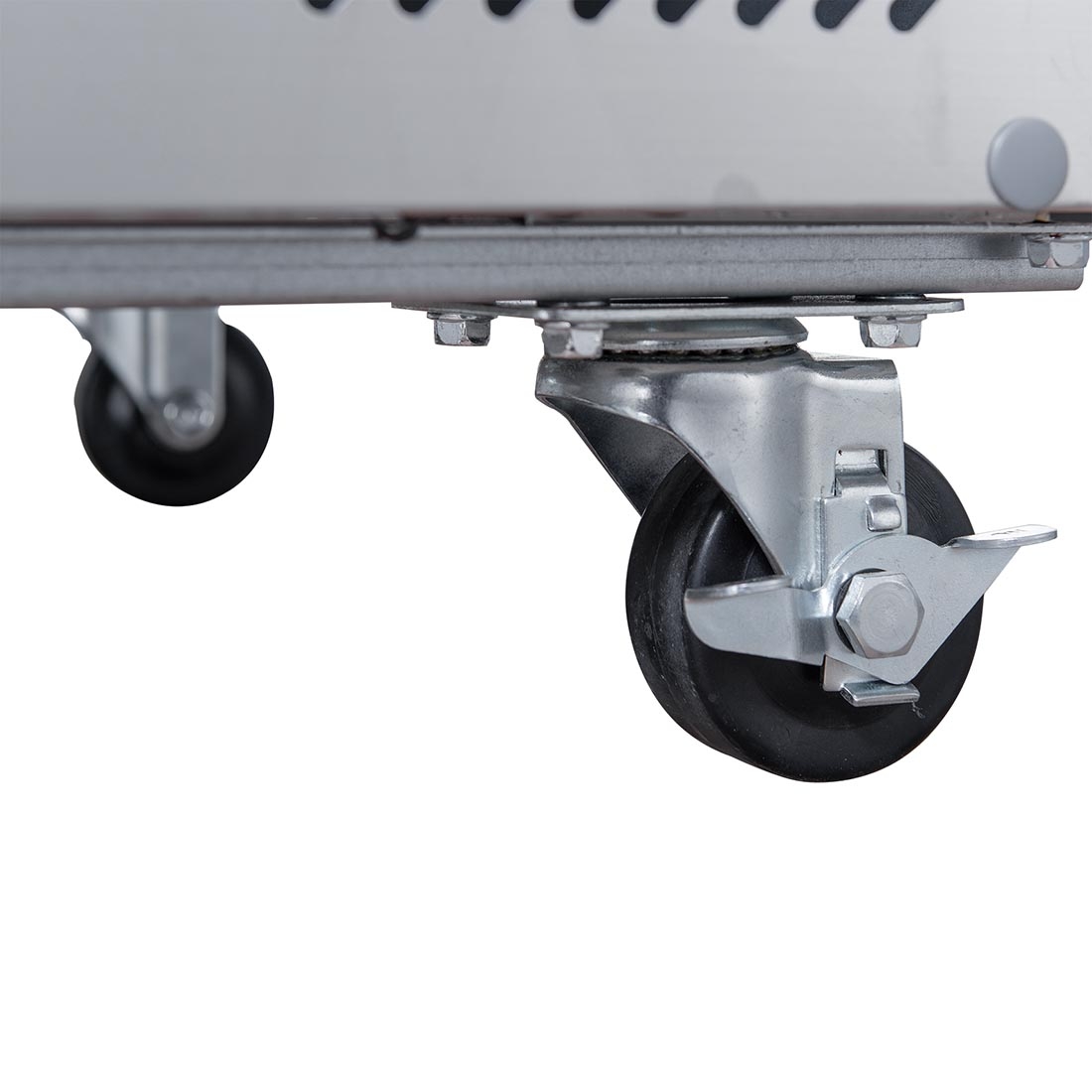

• Heavy-duty castors with front wheel brakes for mobility and stability
• Power supply: 240V, 50Hz, 10A, 320W
• Warranty: 2 Years Parts and Labour plus 2 Years Parts Only for products registered within 14 days of invoice

Specifications

• Width (mm): 2020
• Depth (mm): 800
• Height (mm): 1406
• Weight (kg): 494.75
• Packed Width (mm): 2055
• Packed Depth (mm): 730
• Packed Height (mm): 1160
• Shipping Weight: 150
• Shipping Cubic: 2.240000000m3
• No. of Doors: 3
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• Cooling Type: Fan Forced
• Power Delivery: 240V; 50V; 10A; 320W
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
