FED-X XSS7C13S2V S/S Two Door Sandwich Counter

FED-X XSS7C13S2V Stainless Steel Two Door Sandwich Counter

The FED-X XSS7C13S2V is a heavy-duty stainless steel two door sandwich counter engineered for high-volume sandwich bars, salad bars, pizza preparation and café kitchens. With a 282L gross capacity, fan-forced cooling and a Dixell digital controller, it maintains a precise +2°C to +8°C temperature range while handling the demands of a busy commercial kitchen. The unit is tropicalised for Australian conditions, rated to a maximum ambient temperature of 43°C at 60% relative humidity, making it equally at home in hot back-of-house environments.

Constructed with stainless steel interior and exterior, rounded corners for effortless cleaning, and 60mm HFC- and CFC-free foam insulation, the XSS7C13S2V is built for longevity and food safety compliance. The refrigerated display top accommodates seven 1/3 GN pans up to 150mm deep for ingredient access during service, and can hold temperature for up to four hours from a pre-chilled environment. Optional two and three drawer configurations are available in lieu of doors, and the unit ships with heavy-duty castors with front wheel brakes for flexible positioning on the kitchen floor.

Key Benefits

• Fan-forced cooling with EBM-PAPST evaporator and condenser fans delivers rapid temperature recovery and even refrigeration throughout the cabinet after frequent door opening.
• The refrigerated GN pan top holds seven 1/3 GN pans up to 150mm deep, keeping prepped ingredients cold and within arm's reach during peak service periods.
• Tropicalised design rated to 43°C and 60% relative humidity ensures consistent performance in warm Australian commercial kitchen environments without additional intervention.
• Self-closing doors with heavy-duty magnetic seals reduce energy consumption and help maintain stable internal temperatures even during busy shifts.
• A Dixell digital controller provides precise, user-friendly temperature monitoring and adjustment, helping staff maintain food safety compliance at a glance.
• The display top retains its pre-chilled temperature for up to four hours, protecting ingredients during power interruptions or brief shutdowns.
• Optional two and three drawer units can replace the hinged doors, offering flexible configuration to suit different prep workflows and ingredient volumes.
• Heavy-duty castors with front wheel brakes allow the unit to be repositioned easily for cleaning underneath or reconfiguring the kitchen layout.
• Each shelf supports up to 40kg, providing robust storage capacity for full GN 1/1 pans and heavy ingredient containers across both door compartments.

Key Features

• Gross volume 282L; net volume 259L
• Temperature range +2°C to +8°C maintained by fan-forced cooling
• Maximum ambient operating temperature 43°C at 60% relative humidity
• Cubigel compressor with R290 refrigerant

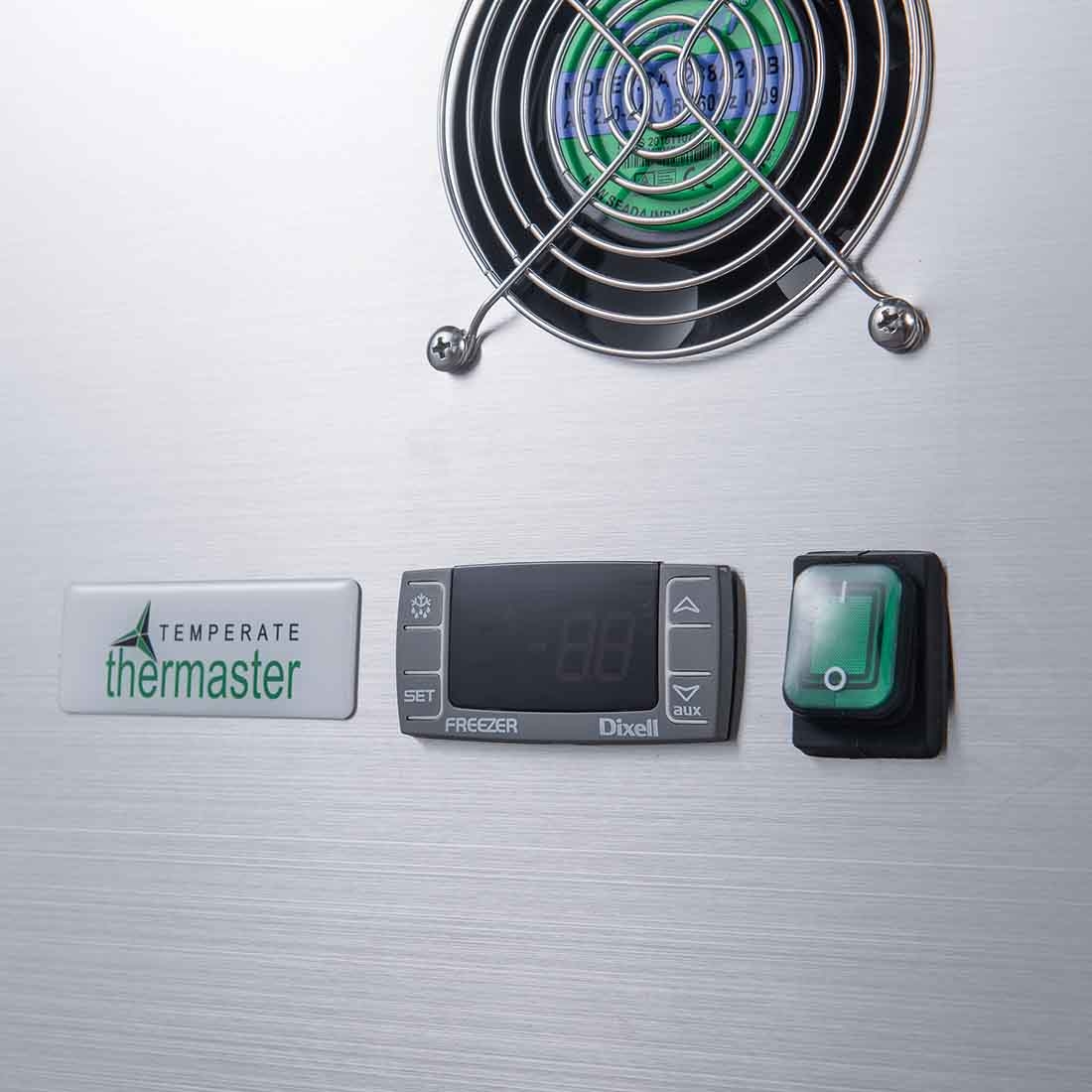

• Dixell digital controller with user-friendly interface

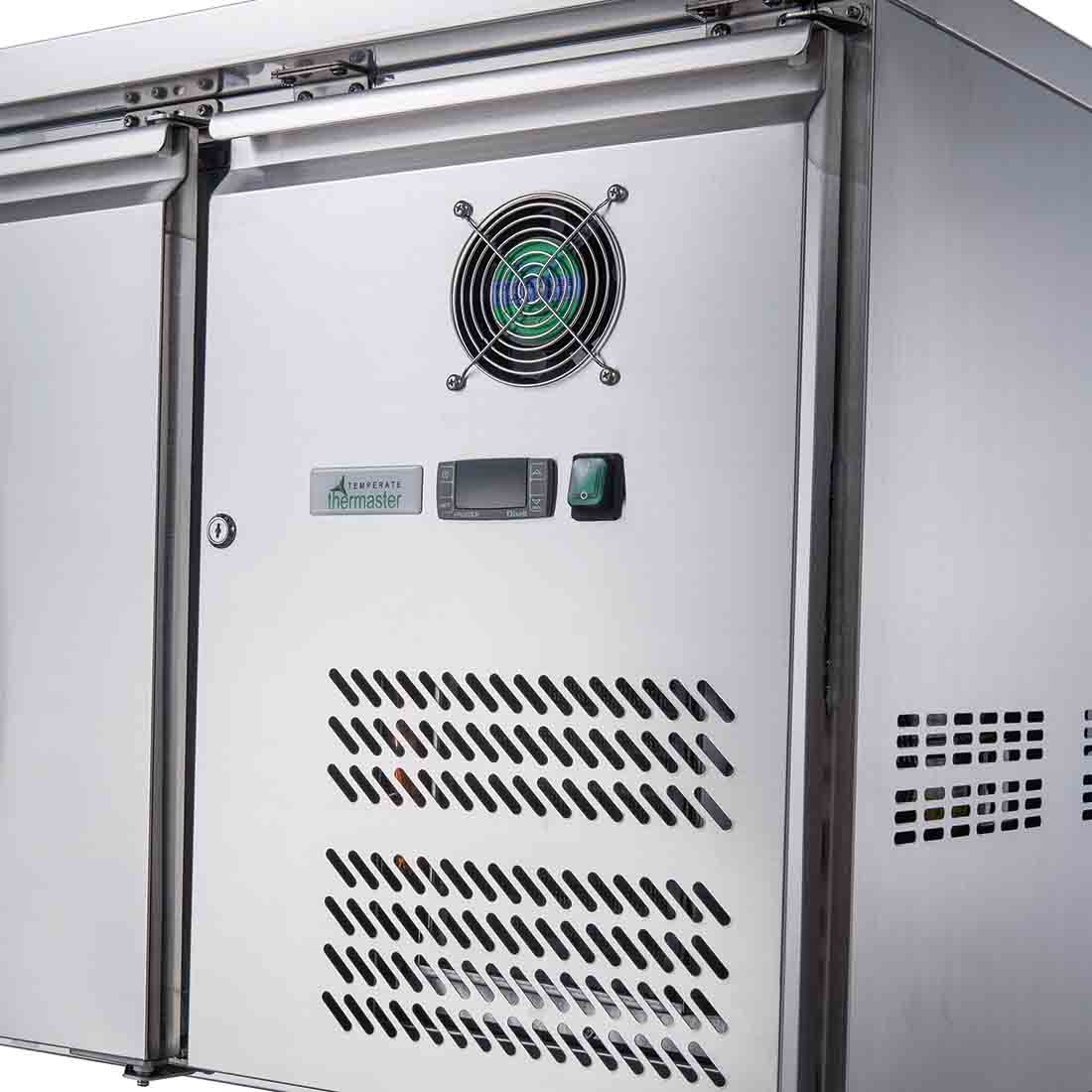

• EBM-PAPST evaporator and condenser fans for efficient airflow
• Stainless steel interior and exterior construction with rounded corners for easy cleaning
• 60mm HFC- and CFC-free foam body insulation for energy efficiency

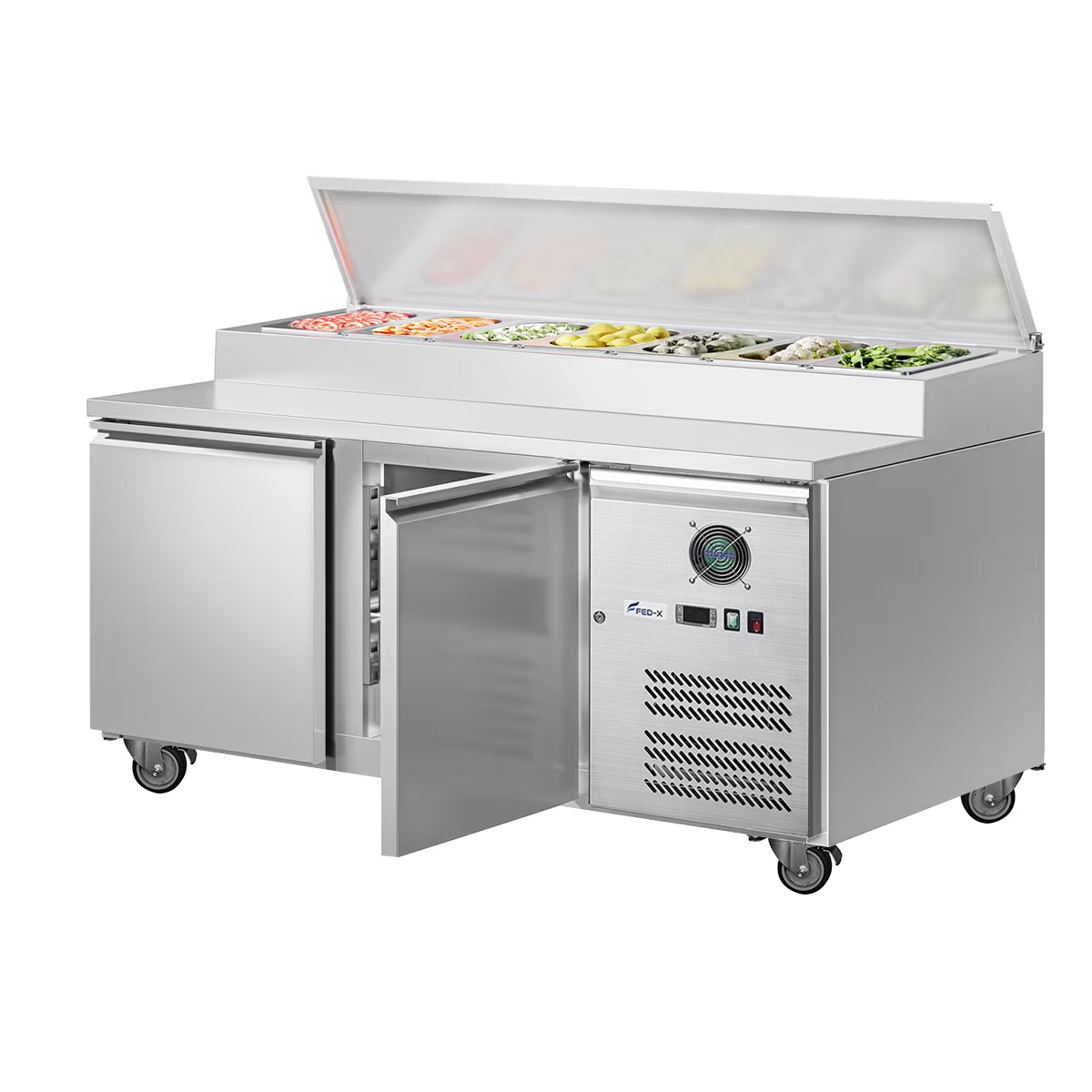

• Refrigerated top deck compatible with 7 x 1/3 GN pans up to 150mm deep
• Display top holds temperature for up to 4 hours from a pre-chilled environment

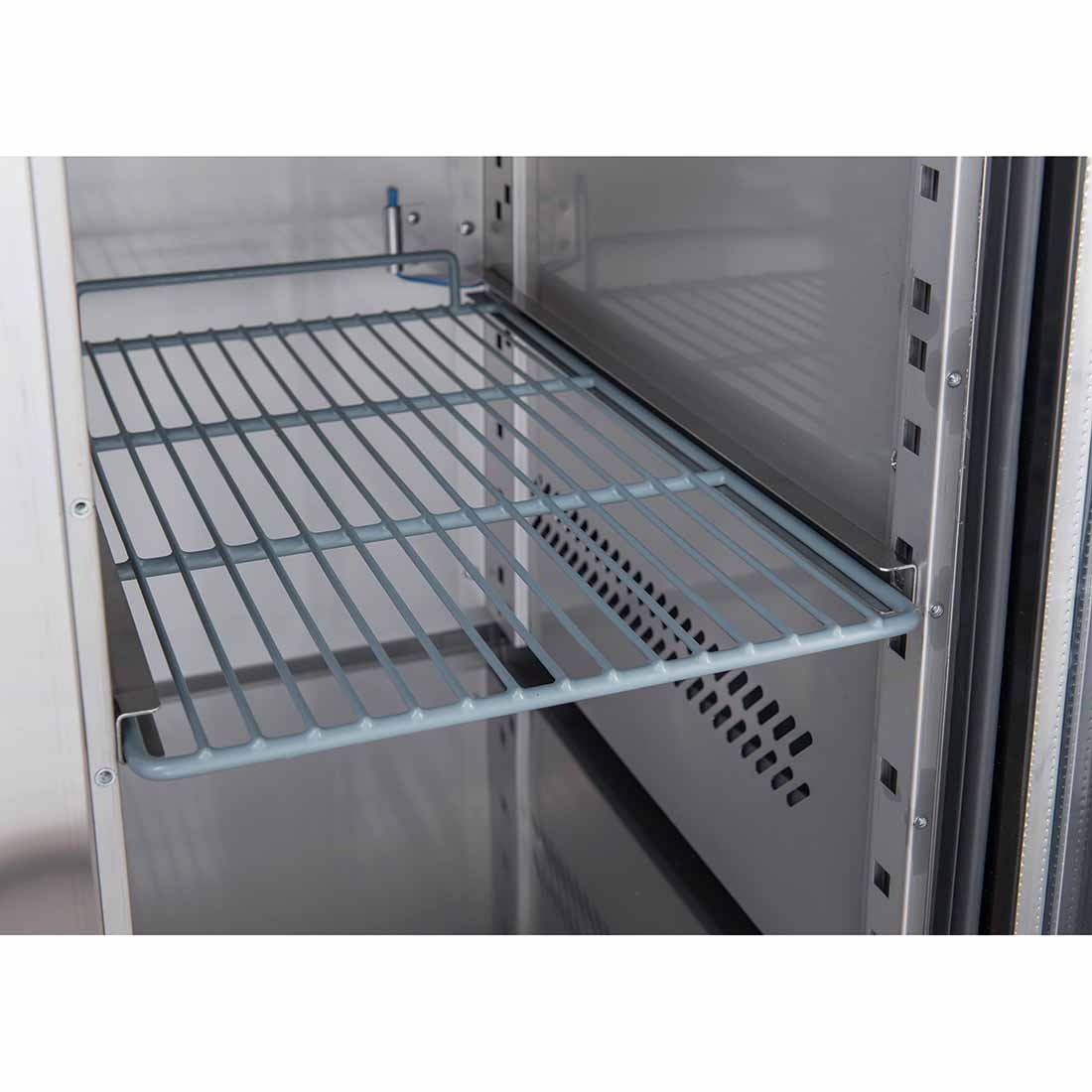

• One shelf per door compartment, GN 1/1 pan compatible
• Weight loading capacity of 40kg per shelf

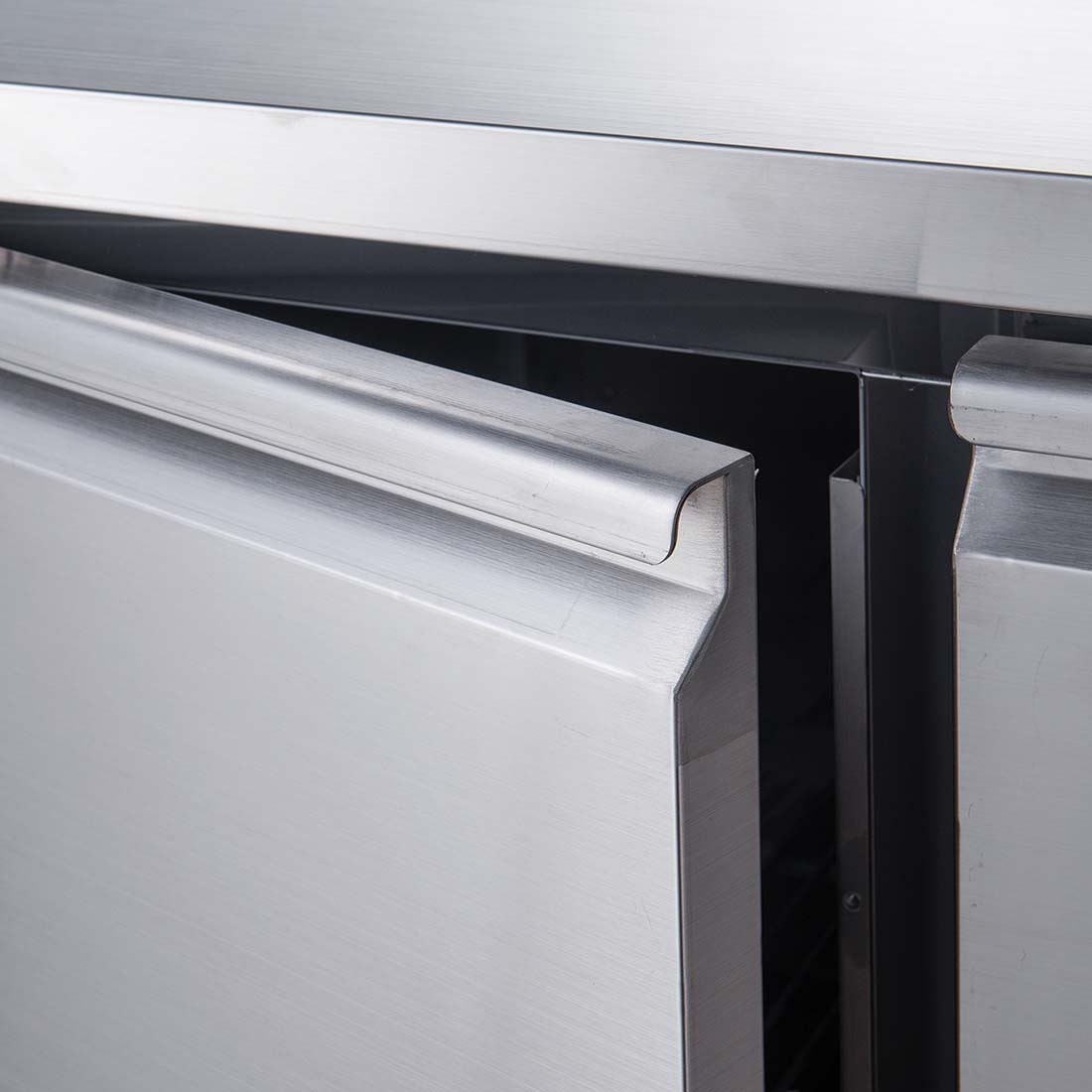

• Self-closing hinged doors with heavy-duty magnetic door seals
• Rapid temperature recovery rate following door opening
• Optional 2-drawer and 3-drawer units available as an alternative to hinged doors

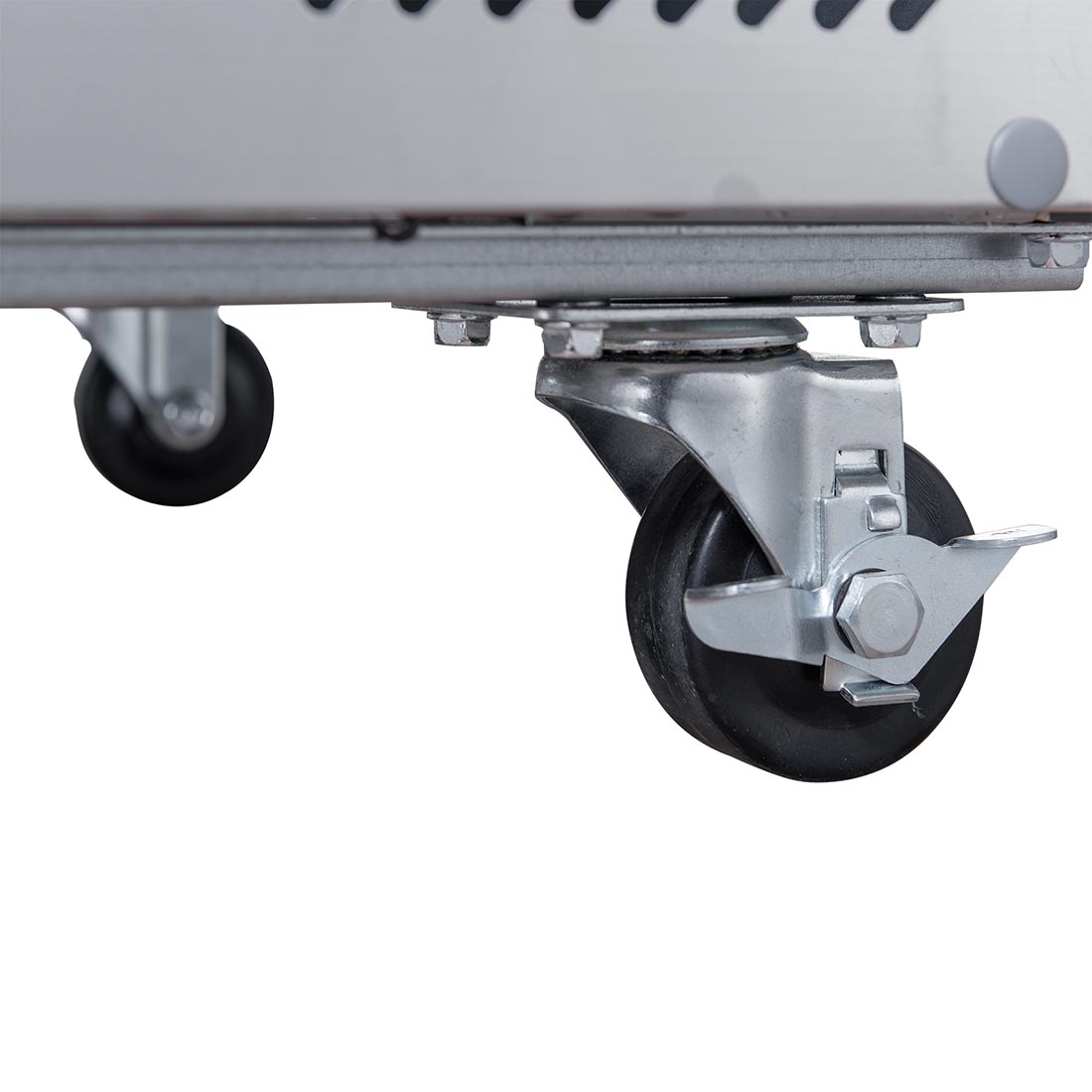

• Heavy-duty castors with front wheel brakes for stable positioning and easy repositioning
• Internal dimensions: 799mm W x 580mm D x 564mm H
• External dimensions: 1360mm W x 700mm D x 1406mm H
• Power supply: 240V, 50Hz, 10A, 320W
• Tropicalised for Australian conditions
• 2 Years Parts and Labour plus 2 Years Parts Only warranty when product is registered within 14 days of invoice

Specifications

• Width (mm): 1360
• Depth (mm): 700
• Height (mm): 1406
• Weight (kg): 294.25
• Packed Width (mm): 1390
• Packed Depth (mm): 730
• Packed Height (mm): 1160
• Shipping Weight: 104
• No. of Doors: 2
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• Cooling Type: Fan Forced
• Power Delivery: 240V; 50V; 10A; 320W
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
