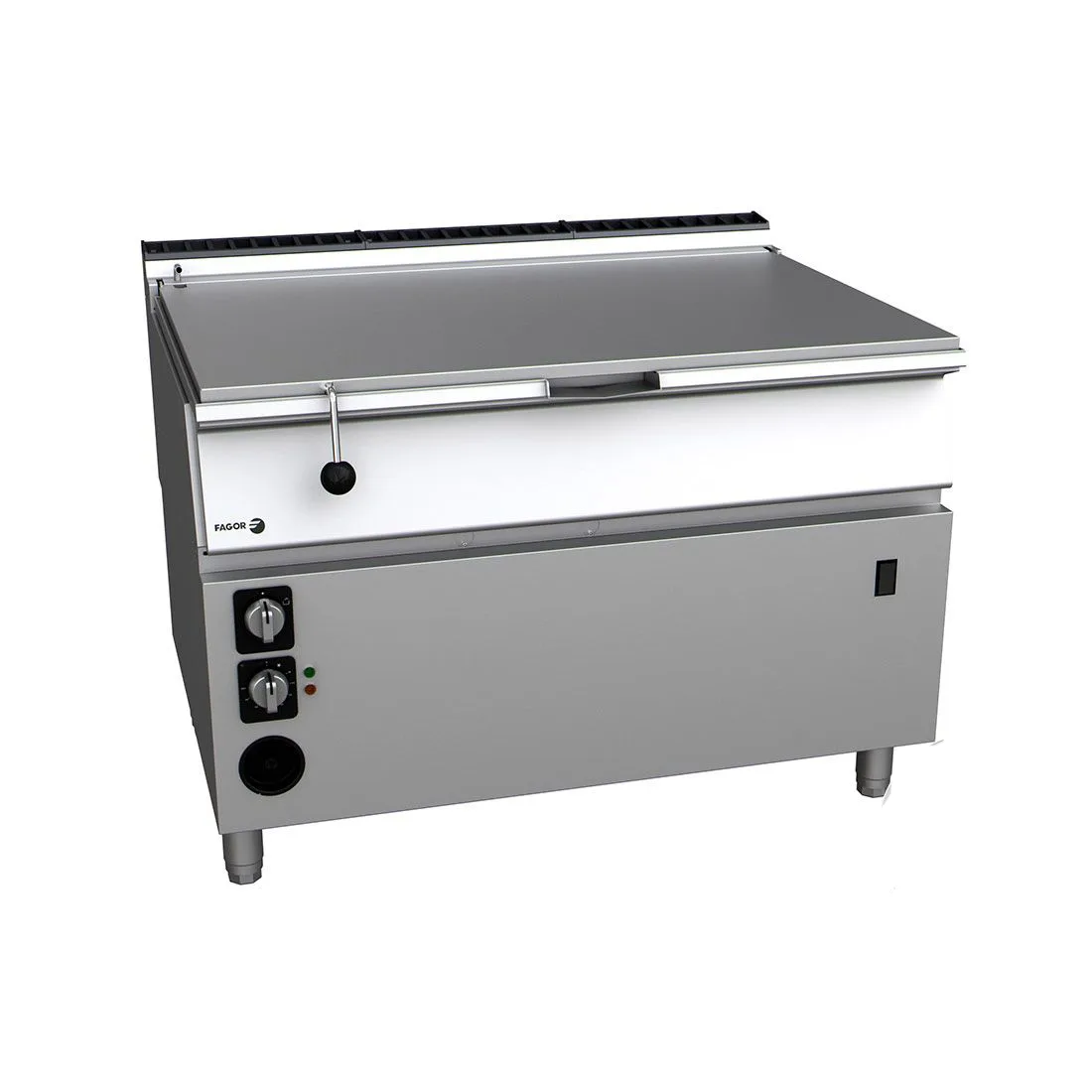

Fagor SB-G915IM Kore 900 Series Gas Tilting Bratt Pans

Fagor SB-G915IM Kore 900 Series Gas Tilting Bratt Pan 120L

The Fagor SB-G915IM is a heavy-duty gas tilting bratt pan from the Kore 900 Series, offering a generous 120-litre capacity and compatibility with both natural gas and LPG. Precision laser-cut joints, automatic welding, and a polished finish with concealed screws reflect the quality of construction expected in high-volume commercial kitchens, while a choice of cast iron or stainless steel pan versions allows operators to match the unit to their specific cooking requirements.

Designed for efficiency and ease of use, the SB-G915IM features motorised or crank-operated tilting that raises the pan to a fully vertical position for complete emptying, a front-mounted electric water-fill valve, and a spring-balanced double-walled lid that redirects condensation back into the well. With IPX5-rated water protection, thermostat-controlled temperatures from 50 to 310°C, and a micro-breaking safety switch, this bratt pan delivers consistent, even cooking alongside straightforward daily maintenance.

Key Benefits

• 120-litre capacity handles large batch cooking, reducing service bottlenecks during peak periods.
• Motorised or crank-operated tilting raises the pan to vertical, allowing complete emptying with minimal manual effort and reducing product waste.
• Branched burners combined with an extra-thick pan base (8 mm cast iron or 10 mm stainless steel) distribute heat evenly across the entire cooking surface, eliminating hot spots and producing consistent results.
• Thermostat control across a wide 50–310°C range gives chefs precise temperature management for everything from gentle simmering to high-heat searing.
• Front-mounted electric water-fill valve with a rear inlet pipe simplifies pan filling without operators needing to reach awkward positions, saving time during prep.
• IPX5-rated water protection allows confident daily cleaning with water jets, extending the working life of the unit and supporting hygiene compliance.
• Rounded pan corners, no internal edges, and a wide unloading opening make both cooking operations and thorough cleaning significantly faster.
• A micro-breaking switch automatically halts heating the moment the pan is raised, preventing accidental overheating and protecting both product and equipment.
• Perimeter flange and a double-walled lid with rear condensation drainer keep spillage off the floor, reducing slip hazards and keeping the surrounding workspace clean.

Key Features

• Available for natural gas (NG) or LPG operation.
• 120-litre pan capacity.
• Choice of cast iron or stainless steel pan versions.
• Motorised or crank-operated tilting mechanism; pan raises to fully vertical for complete emptying.
• Thermostat controls pan-base temperature from 50°C to 310°C.
• Branched burners located in the base of the pan for maximum uniformity of heat distribution.
• Extra-thick pan base: 8 mm for cast iron models, 10 mm for stainless steel models.
• Laser-cut joints and automatic welding throughout; screws are hidden from view for a clean, polished finish.
• Double-walled lid with integrated rear drainer channels condensation water back into the pan well.
• Spring-assisted lid balance system with compensation mechanism to prevent heavy falls; adjustable and consistent across all modules.
• Front-mounted switch operates an electric valve to fill the pan with water; filling pipe is located at the rear of the machine.
• Water inlet diameter: 3/4 inch.
• Micro-breaking safety switch cuts heating automatically when the pan is tilted.
• High-temperature enamelled cast iron flue protector.
• Perimeter flange around the pan prevents condensation water from spilling over the sides.
• Rounded pan corners and no internal edges, plus a wide opening for easy unloading and cleaning.
• All components accessible from the front of the machine.
• IPX5 grade water protection rating.
• Front-access lid handle.
• Power output: 25 kW / 90 MJ/h.
• Warranty: 2 Years Parts and Labour plus 2 Years Parts Only for products registered within 14 days of invoice.

Specifications

• Width (mm): 1200
• Depth (mm): 930
• Height (mm): 850
• Weight (kg): 269
• Packed Width (mm): 1240
• Packed Depth (mm): 1030
• Packed Height (mm): 1140
• Shipping Weight: 269
• Power Delivery: 25KW; 90MJ/h
• Power (kW): 25
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
