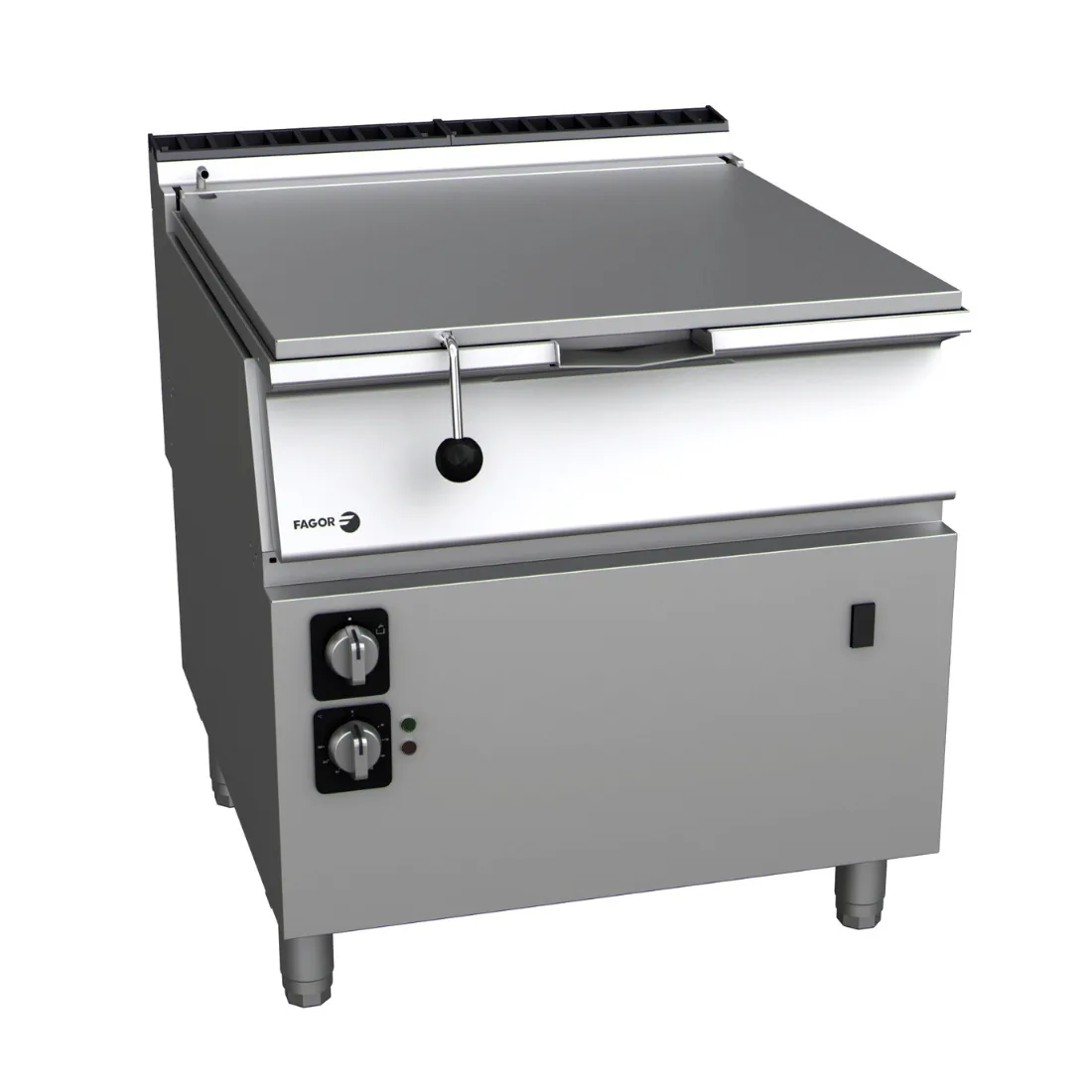

Fagor SB-E910IM Kore 900 Series Electric 90L Bratt Pan

Fagor SB-E910IM Kore 900 Series Electric 90L Bratt Pan

The Fagor SB-E910IM is a heavy-duty electric bratt pan from the Kore 900 Series, offering a generous 90-litre stainless steel well designed to handle the demands of high-volume commercial kitchens. Powered by a 15kW, 415V three-phase supply, it features shielded heating elements embedded directly in the base of the pan, combined with a 10mm thick stainless steel well bottom to deliver exceptional uniformity of temperature across the entire cooking surface.

Built with a focus on hygiene, safety, and ease of use, the SB-E910IM incorporates laser-cut joints, hidden screws, and fully rounded internal corners to simplify cleaning and minimise food traps. An electric water-fill valve, a spring-assisted lid balance system, a micro-switch that cuts heating when the pan is tilted, and IPX5 water protection all contribute to a safer and more efficient cooking environment. It is backed by a 2-year parts and labour warranty plus an additional 2-year parts-only warranty when registered within 14 days of invoice.

Key Benefits

• The 10mm thick stainless steel base combined with base-mounted heating elements ensures even, consistent heat distribution across all 90 litres, reducing hot spots and the risk of uneven cooking.
• A thermostat with a 50 to 310°C range provides precise temperature control to suit a wide variety of cooking tasks, from gentle poaching to high-heat searing.
• The micro breaking switch automatically halts heating whenever the pan is raised, protecting both the operator and the equipment during unloading.
• An electric water-fill valve operated by a simple switch makes it fast and convenient to add water for braising, steaming, or cleaning, reducing manual handling.
• The spring-assisted lid balance system with a fall-compensation mechanism prevents the heavy lid from dropping suddenly, improving operator safety during everyday use.
• IPX5-rated water protection means the unit can be cleaned with a directed water spray without risk of damage, supporting fast and thorough kitchen hygiene routines.
• Wide pan opening with rounded corners and smooth internal edges makes unloading large volumes of food quicker and allows thorough cleaning with minimal effort.
• A perimeter flange around the top edge captures condensation from the double-walled lid and prevents it from dripping onto the floor or adjacent surfaces.

Key Features

• 90-litre stainless steel cooking well
• 15kW power output via 415V three-phase (3~N) connection
• Shielded stainless steel heating elements located in the base of the pan for direct, efficient heat transfer
• 10mm thick stainless steel well bottom for superior heat retention and uniform temperature distribution
• Thermostat temperature control ranging from 50°C to 310°C
• Micro breaking switch cuts heating automatically when the pan is tilted or raised
• Electric water-fill valve operated by a switch for convenient water addition
• Double-walled lid with integrated drainer
• Spring-assisted lid balance system with compensation mechanism to prevent heavy falls
• Perimeter flange around the well opening to contain condensed water and prevent spills
• Rounded internal corners and wide opening for easy unloading and cleaning
• Laser-cut joints and hidden screws for a smooth, hygienic finish
• High-temperature enamelled cast iron flue protector
• IPX5 grade water protection rating
• Part of the Fagor Kore 900 Series commercial cooking range
• 2-year parts and labour warranty plus 2-year parts-only warranty when registered within 14 days of invoice

Specifications

• Width (mm): 800
• Depth (mm): 930
• Height (mm): 850
• Weight (kg): 218
• Packed Width (mm): 1022
• Packed Depth (mm): 840
• Packed Height (mm): 1255
• Power Delivery: 415V, 15kW/3~N
• Power (kW): 415
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
