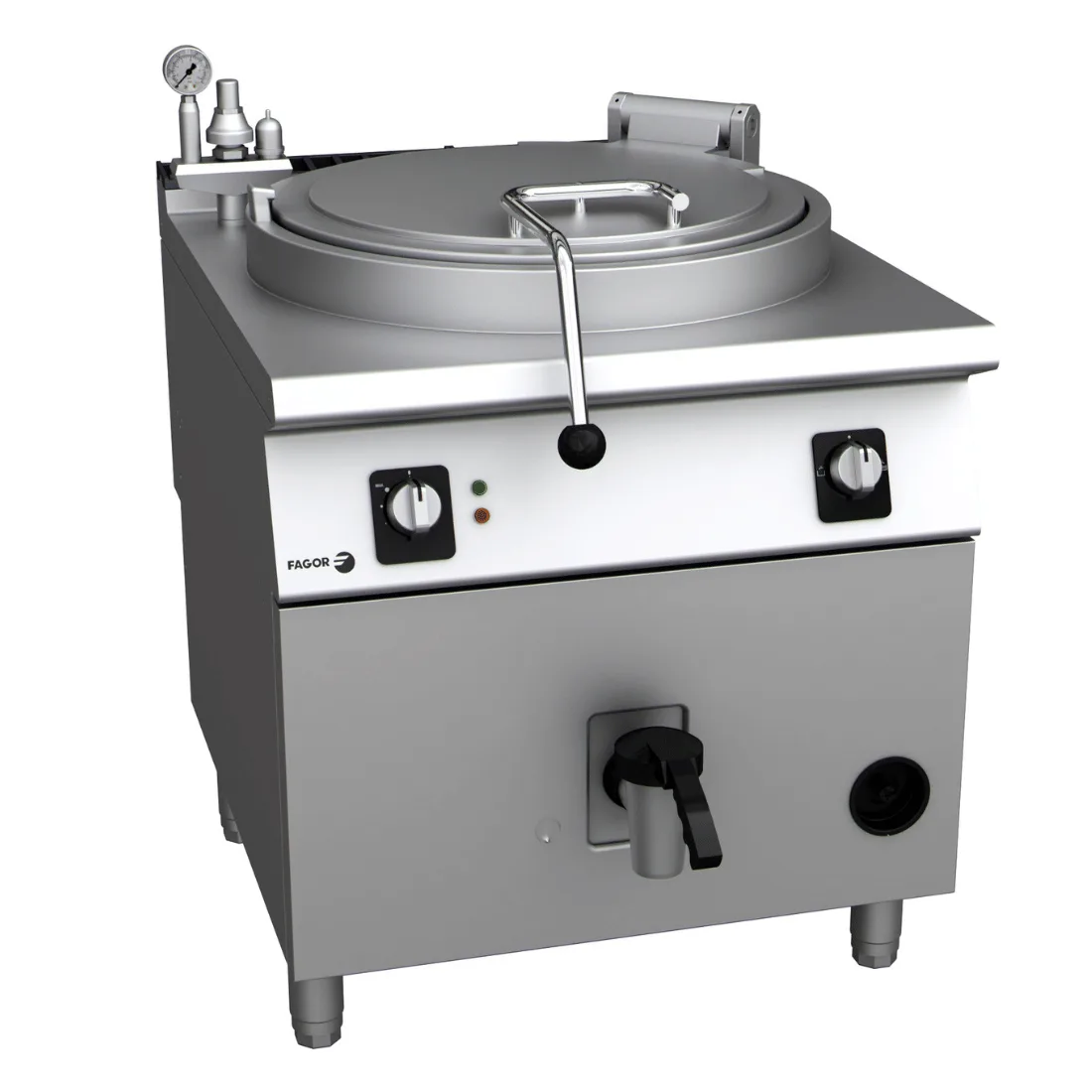

Fagor M-G915BM Kore 900 Series Indirect Heating Boiling Pan

Fagor M-G915BM Kore 900 Series Indirect Heating Boiling Pan – Natural Gas

The Fagor M-G915BM belongs to the Kore 900 Series and is a natural gas boiling pan that uses indirect heating, purpose-built for high-volume commercial kitchens. Its double-walled construction and robotically welded well bring together heavy-duty AISI-304 stainless steel fabrication with precision engineering, delivering consistent and controlled heat across large-batch cooking tasks such as soups, stocks, sauces and confectionery.

Designed with the operator in mind, every functional element – from front-access components and water-infiltration-resistant controls to the IPX5-rated enclosure and ergonomic lid – prioritises ease of use, hygiene and serviceability in demanding foodservice environments. The unit is backed by Fagor's 2-year parts and labour warranty, which is extendable upon registration, providing long-term reliability and operational confidence.

Key Benefits

• Indirect heating through a water-filled well ensures gentle, uniform heat distribution across the entire cooking vessel, significantly reducing the risk of scorching or hot spots during large-batch production.
• Burner group output is governed by a combined energy regulator and pressure switch, allowing operators to dial in precise heat levels and lower both water and energy consumption during service.
• The double-walled lid features a 75-degree diagonal opening and remains open in any position without support, keeping hands free and reducing steam-related burns when checking or stirring contents.
• Well filling and emptying are managed entirely from the front panel – an electrovalve activated via a dedicated switch handles filling, while a 2-inch safety valve fitted with an athermic handle manages emptying – minimising manual effort and improving workflow speed.
• IPX5-rated water protection across the entire machine, combined with water-infiltration-resistant controls, allows the unit to withstand high-pressure cleaning routines without compromising electronics or internal components.
• All internal components are accessible from the front of the unit, simplifying routine maintenance and servicing, reducing downtime and the cost of call-outs in a busy kitchen environment.
• Spark train ignition of the stainless steel tubular burner group delivers reliable, consistent startup without manual lighting, supporting fast turnaround between cooking cycles.
• Concealed screws, laser-cut joints and automatic welding produce a smooth, hygienic exterior that is easy to wipe down and compliant with commercial kitchen cleanliness standards.
• The easily extractable AISI-304 stainless steel drain filter simplifies well cleaning between batches, supporting food safety and reducing cross-contamination risk.

Key Features

• Natural gas fuel type with an output rating of 86.4 MJ/hr (24 kW).
• Surface tops fabricated from 2 mm thick AISI-304 stainless steel for long-term durability and corrosion resistance.
• Laser-cut joints with automatic welding and polished finish; all screws are concealed for a clean, hygienic appearance.
• Double-walled lid balanced on a hinge with a front handle; diagonal opening to 75 degrees allows the lid to remain open in any position without support.
• Cooking well robotically welded into the surface top and manufactured in AISI-304 stainless steel, with the well base constructed from AISI-316L stainless steel for superior corrosion resistance.
• Well filling accommodates hot or cold water via an electrovalve that is activated through a dedicated switch located on the front panel.
• Well emptying via a 2-inch safety valve fitted with an athermic material handle for safe, effortless operation.
• Easily extractable AISI-304 stainless steel filter for draining the well, supporting quick and thorough cleaning.
• Controls feature a protective base with a water infiltration prevention system to guard electronics during cleaning.
• High-temperature enamelled cast iron flue protector for safe and efficient exhaust management.
• All components accessible from the front of the unit for straightforward maintenance and servicing.
• IPX5 grade water protection rating across the entire machine.
• Optimised combustion stainless steel tubular burner group, with output managed through a dedicated energy regulator paired with a pressure switch for precise burner control.
• 2-year parts and labour warranty included as standard, with extended cover available when the product is registered within 14 days of invoice date.

Specifications

• Width (mm): 800
• Depth (mm): 930
• Height (mm): 850
• Weight (kg): 278
• Packed Width (mm): 900
• Packed Depth (mm): 1000
• Packed Height (mm): 950
• Shipping Weight: 160
• Power Delivery: 86.4 MJ/hr ; 24 kW
• Power (kW): 86.4
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
