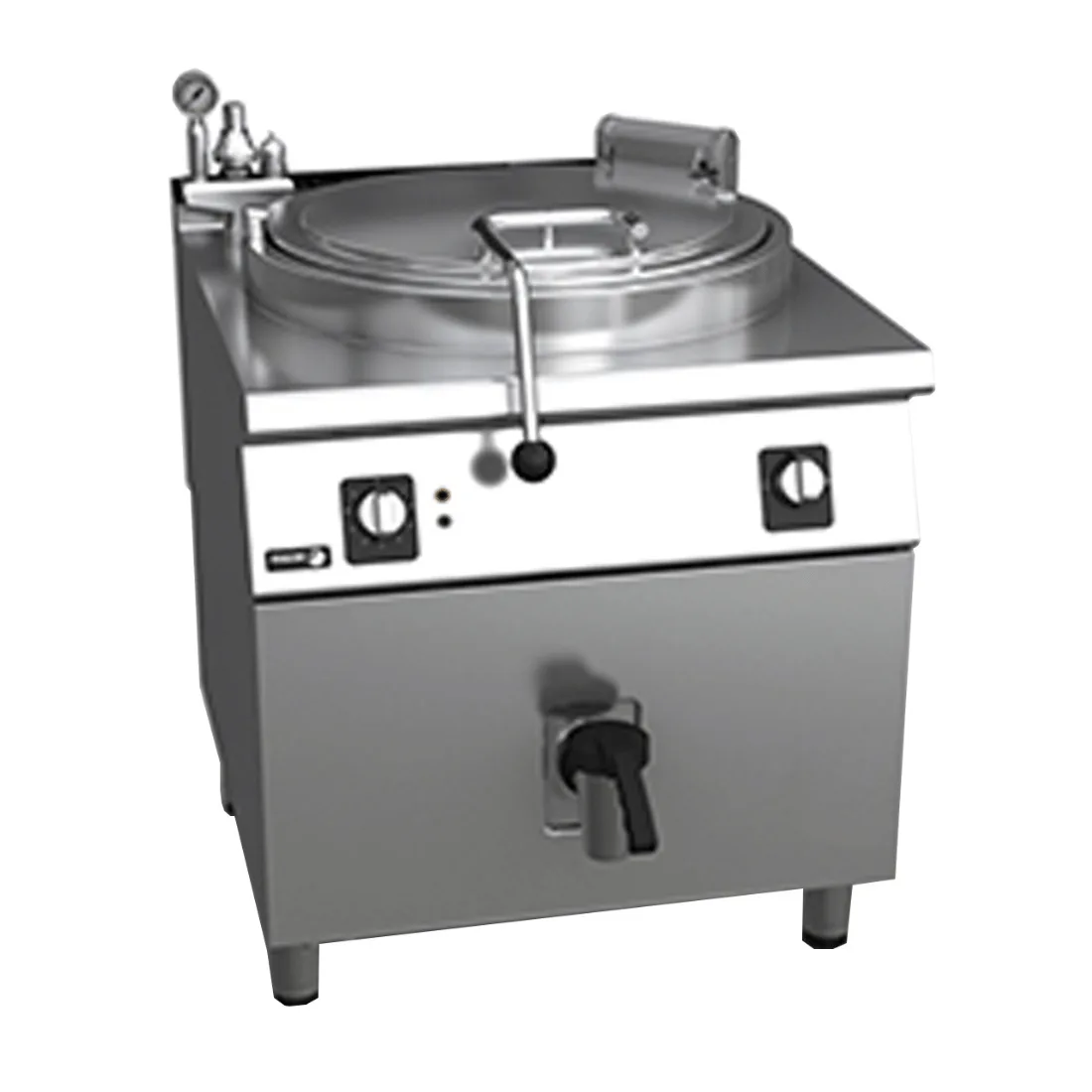

Fagor M-E915BM Kore 900 Electric Indirect Heating Boiling Pan

Fagor M-E915BM Kore 900 Electric Indirect Heating Boiling Pan

The Fagor M-E915BM is a 150-litre electric indirect heating boiling pan from the Kore 900 series, designed for demanding commercial kitchen environments. Its indirect heating system works by heating water in a bain-marie chamber that surrounds the well, generating saturated steam at 107°C to evenly heat the bottom and sides of the cooking vessel without the risk of scorching or hot spots associated with direct heating methods.

Constructed with AISI-304 stainless steel throughout and AISI-316L on the base of the well, the M-E915BM features robotic welding, laser-cut joints, and a quadruple-security automatic chamber control system for safe and consistent operation. Rated at 22kW on 415V three-phase power and carrying IPX5 water protection, this unit is built to handle continuous high-volume cooking with minimal operator intervention.

Key Benefits

• Indirect heating via a surrounding steam chamber delivers even, consistent temperatures across the bottom and sides of the well, reducing the risk of burning or uneven cooking.
• Lower maximum cooking temperatures compared to direct heating methods help preserve the texture, flavour and nutritional quality of delicate or slow-cooked preparations.
• The automatic bain-marie chamber filling and level control system activates on startup and operates continuously, reducing manual monitoring and freeing kitchen staff for other tasks.
• Quadruple chamber security, comprising a pressure switch, overpressure safety valve, overheating thermostat and surface-top pressure gauge, provides multiple layers of protection for both the operator and the equipment.
• The electro valve allows the well to be filled with hot or cold water via a single front-panel switch, streamlining preparation and cleaning workflows.
• IPX5-rated water protection and controls fitted with a water-infiltration-resistant base make the unit well suited to the wet, high-pressure cleaning environments common in commercial kitchens.
• The double-walled lid with front handle opens diagonally to 75°, allowing safe venting of steam away from the operator while providing easy access to the full cooking volume.
• Automatic flushing capability simplifies end-of-service cleaning and helps maintain hygiene standards with minimal effort.
• Robust 2-year parts and labour warranty, extending to a further 2 years parts-only cover when the product is registered within 14 days of invoice, supports long-term operational reliability.

Key Features

• 150-litre cooking capacity
• 2 mm thick AISI-304 stainless steel surface top
• Well stamped into the surface top using robotic welding; well body in AISI-304 stainless steel with an AISI-316L stainless steel base for enhanced corrosion resistance
• Stamped pan floor construction to resist deformation under sustained high-temperature use
• Indirect heating: heating elements located at the base of the unit act on water in the surrounding bain-marie chamber, generating saturated steam at 107°C to uniformly heat the well bottom and sides
• Heating controlled by an energy regulator and pressure switch
• Automatic bain-marie chamber filling activates when the machine is connected
• Quadruple automatic chamber level security: pressure switch, overpressure safety valve, overheating thermostat, and pressure gauge integrated into the surface top
• Well filled with hot or cold water via an electro valve activated by a single front-panel switch
• 2-inch safety valve
• Automatic flushing function
• Robust 304 stainless steel drainage filter
• Double-walled lid with front handle; diagonal opening to 75°
• Laser-cut joints and hidden screws for a clean, hygienic exterior finish
• Controls fitted with a protective base and system to prevent water infiltration
• High-temperature enamelled cast iron flue protector
• IPX5 grade water protection rating
• Indicator light
• 415V, 22kW three-phase power supply
• Overall dimensions: 800 mm wide x 930 mm deep x 850 mm high
• Weight: 150 kg
• Packed dimensions: 1022 mm wide x 840 mm deep x 1255 mm high
• 2-year parts and labour warranty plus an additional 2-year parts-only warranty when registered within 14 days of invoice

Specifications

• Width (mm): 800
• Depth (mm): 930
• Height (mm): 850
• Weight (kg): 150
• Packed Width (mm): 1022
• Packed Depth (mm): 840
• Packed Height (mm): 1255
• Power Delivery: 415V, 22kW/3~N
• Power (kW): 415
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
