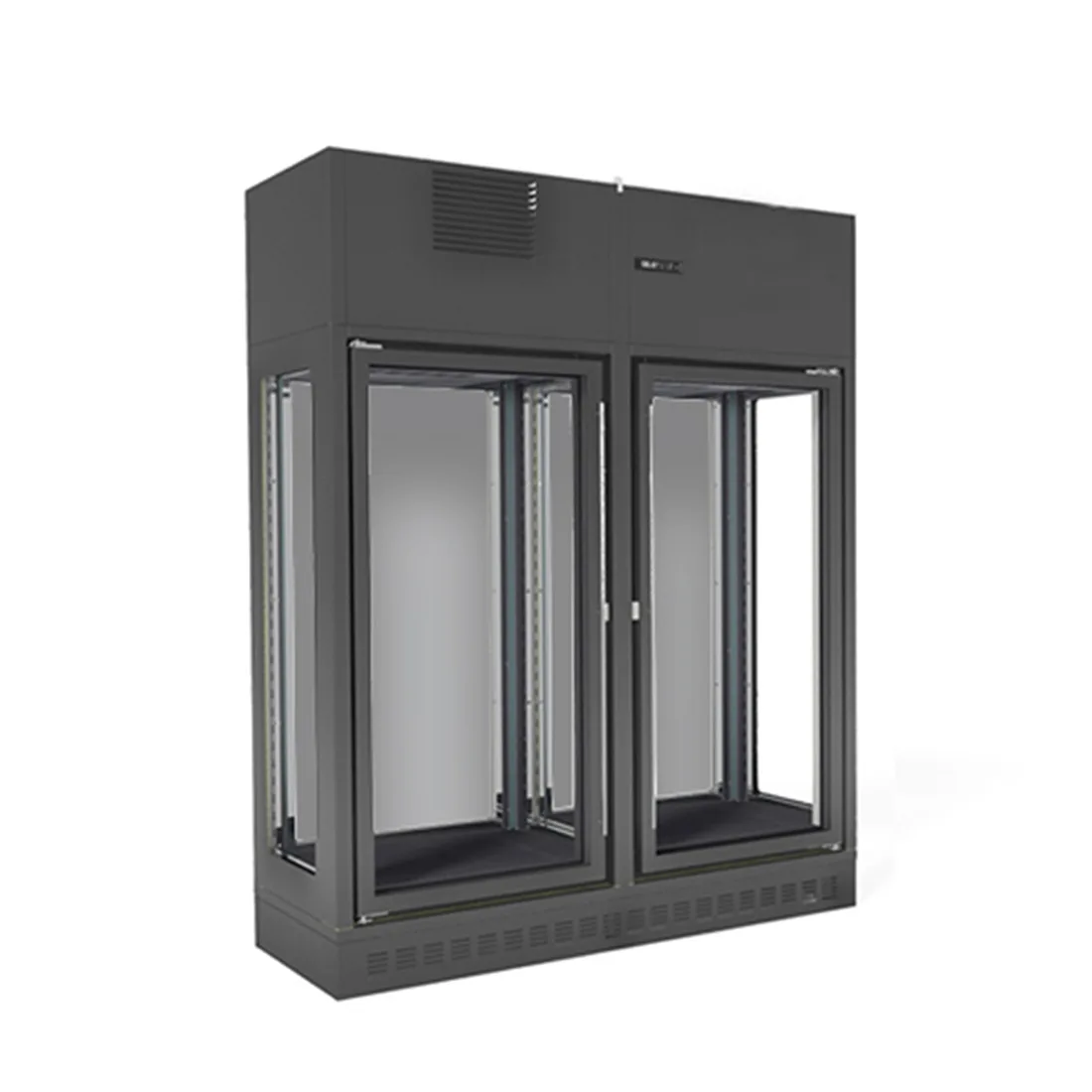

Fagor FWC-2302-1CB Single Zone 2 Doors Black Central Wine Cellar

Fagor FWC-2302-1CB Single Zone 2 Door Black Central Wine Cellar

The Fagor FWC-2302-1CB is a freestanding, single-zone wine cellar designed for professional hospitality environments where wine display and preservation are central to the dining experience. With two full-height swing doors and double-layered glass walls featuring an insulating air chamber on both the sides and central partition, this unit creates a visually striking cellar presentation while maintaining the stable conditions premium wine demands. A temperature range of 4°C to 18°C and an ambient operating tolerance of up to 40°C make it equally suited to warm front-of-house positions and cooler cellar rooms.

Holding up to 126 bottles across a 7-bottle by 18-shelf configuration, the FWC-2302-1CB is built to serve busy restaurants, bars and wine retailers that need both capacity and theatre in a single footprint. Automatic defrost with a self-evaporating drip tray means no floor drain is required, and the perimeter LED lighting — adjustable by remote control — lets operators fine-tune the visual impact of the display without opening the doors. A decorative plinth is included as standard, and the unit runs on a standard 240 V / 15 A supply, simplifying installation.

Key Benefits

• Double-layered glass walls with an air chamber on side and central panels provide superior insulation, keeping the interior temperature stable even during busy service periods.
• Heated glass panels and door frames actively prevent condensation from obscuring the wine display, maintaining a polished presentation at all times.
• Independent digital thermostat control for each zone allows precise temperature management suited to different wine styles stored within the same cabinet.
• Self-evaporating defrost tray eliminates the need for a floor drain connection, reducing installation complexity and ongoing maintenance requirements.
• Remote-controlled perimeter LED lighting lets staff adjust display ambience without disturbing stored bottles or opening doors.
• A 7-bottle by 18-shelf layout accommodates up to 126 bottles, delivering the volume a high-turnover venue needs in a single two-door footprint.
• Optional humidity control creates the ideal conservation environment for long-term ageing as well as short-term display stock.
• Swing doors optimise the available floor space around the unit, making it practical in tight front-of-house corridors and cellar layouts.
• Backed by a 2-year parts and labour warranty plus a further 2-year parts-only warranty when the product is registered within 14 days of invoice, providing long-term cost certainty.

Key Features

• Single temperature zone spanning 4°C to 18°C, suitable for both red and white wine storage
• Two full-height hinged swing doors designed to maximise usable floor clearance
• Side and central partition walls constructed with double-layered glass and an insulating air chamber between panes
• Heated glass panels and door frames to prevent condensation build-up on display surfaces
• Ventilated refrigeration system for even, consistent airflow throughout the cabinet
• Independent digital thermostat per environment for precise zone management
• Optional humidity control module for optimal long-term wine conservation conditions
• Automatic defrost with a self-evaporating drip tray — no drain connection required
• Perimeter LED lighting in all zones, adjustable via remote control
• Bottle capacity: 126 bottles (7 bottles per shelf across 18 shelf positions)
• Rated for ambient operating temperatures up to 40°C at 40% relative humidity
• Decorative plinth included as standard; shelves and hooks available as separate accessories
• Body constructed in Colorbond material with a black finish
• Fixed installation on legs; no castors
• Power supply: 240 V, 15 A (2.23 W rated)
• Overall dimensions: 1697 mm wide × 632 mm deep × 2300 mm high
• Unit weight: 988 kg
• 2-year parts and labour warranty plus 2-year parts-only warranty with product registration within 14 days of invoice

Specifications

• Width (mm): 1697
• Depth (mm): 632
• Height (mm): 2300
• Weight (kg): 988
• Packed Width (mm): 800
• Packed Depth (mm): 2685
• Packed Height (mm): 1840
• No. of Doors: 2
• Door Type: Hinged Doors
• Body Material: Colorbond
• Mobility: Fixed/Legs
• Defrost Type: Auto
• Power Delivery: 240V; 2.23W; 15A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
