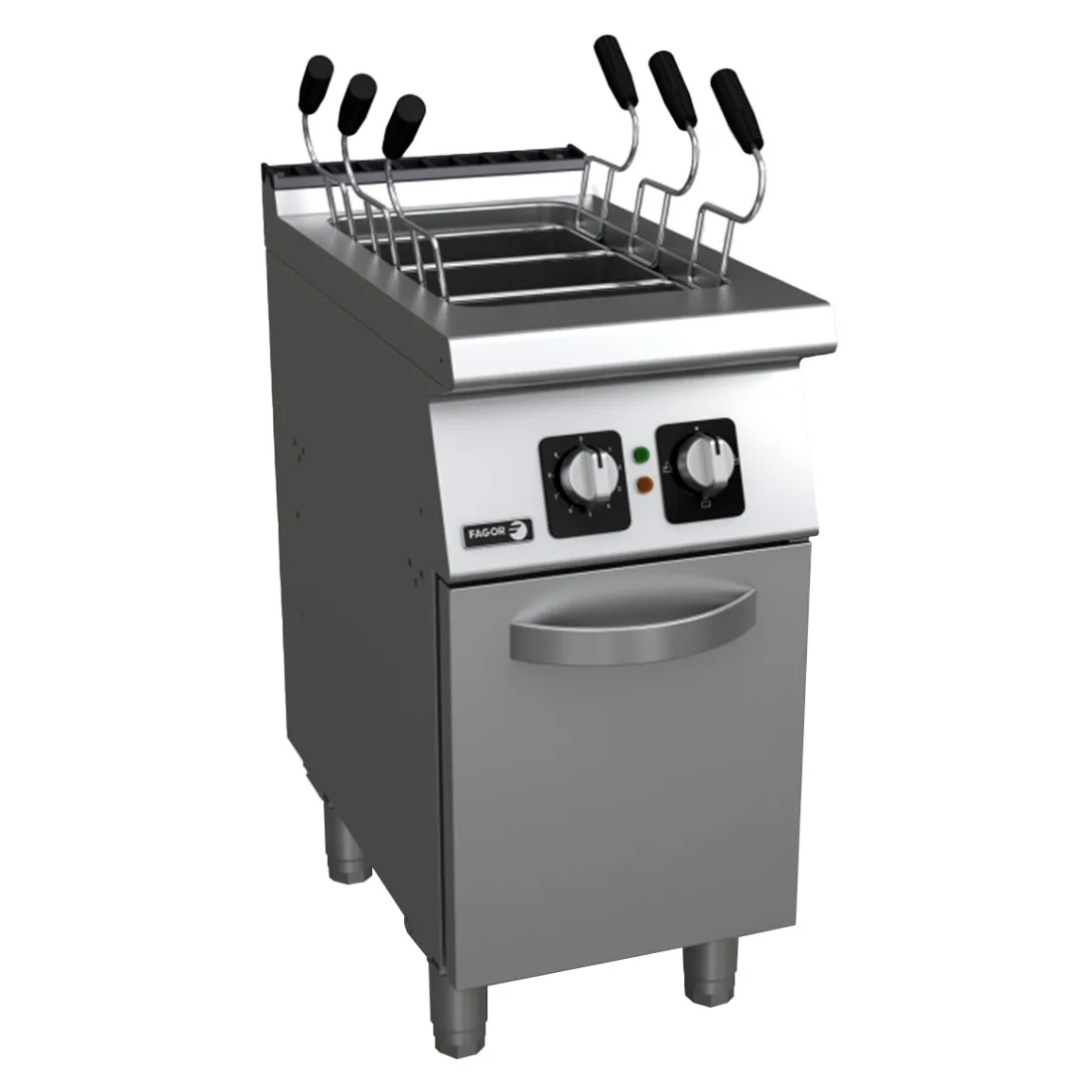

Fagor CP-E7140 Kore 700 Series Electric Pasta Cooker with 3 Baskets

Fagor CP-E7140 Kore 700 Series Electric Pasta Cooker with 3 Baskets

The Fagor CP-E7140 is a commercial-grade electric pasta cooker from the Kore 700 Series, designed to handle the continuous demands of high-volume kitchens. Built on a 400 mm wide footprint and rated at 12 kW on a 415 V three-phase supply, it comes complete with three baskets and is constructed throughout in AISI-304 and AISI-316L stainless steel for exceptional corrosion resistance and longevity.

Every aspect of the CP-E7140 is engineered for safe, efficient pasta cookery. The unit features an automatic water-fill solenoid valve, a high-temperature-resistant ball valve for drainage, and a built-in safety system that cuts power if the well runs dry. IPX5-rated water protection and front-access servicing make it a practical, low-maintenance choice for professional kitchen environments.

Key Benefits

• Solenoid-controlled filling with average and high-speed modes reduces waiting time between service periods, keeping output consistent during busy service.
• The automatic dry-run safety system cuts current if water levels drop too low, protecting the heating elements and reducing the risk of damage or downtime.
• AISI-316L stainless steel wells offer superior corrosion resistance against the hot, mineral-rich water typical in pasta cookery applications.
• IPX5-rated water protection across the machine guards internal components against steam and splashing, extending service life in wet kitchen environments.
• Controls are fitted with a protective base and water-infiltration prevention system, reducing the likelihood of electrical faults caused by condensation or splashing.
• Front access to all components simplifies routine servicing and maintenance without requiring the unit to be moved or disassembled from the rear.
• Adjustable-height stainless steel feet allow the unit to be levelled precisely on uneven floors, ensuring safe and stable operation.
• Wells accommodate different basket arrangements and sizes, giving operators flexibility to cook multiple pasta types or portion sizes simultaneously.
• A comprehensive warranty of 2 years parts and labour plus a further 2 years parts only (when registered within 14 days of invoice) provides long-term cost certainty.

Key Features

• Surface top constructed from 1.5 mm thick AISI-304 stainless steel for durability and hygiene.
• Cooking wells fabricated from 1.5 mm thick AISI-316L stainless steel, built directly into the surface top for a seamless, easy-to-clean finish.
• Laser-cut joints combined with automatic welding and polishing deliver precise, smooth seams that are resistant to cracking and simple to sanitise.
• Hidden screws throughout the construction eliminate food trap points and contribute to a clean, professional appearance.
• Wells designed to suit different basket arrangements and dimensions, supporting varied menu requirements.
• Inlet solenoid valve fills the well automatically, with a two-position switch allowing selection between average and high-speed filling rates.
• Drainage via a mechanical ball valve rated to withstand high temperatures, incorporating a safety overflow to prevent flooding.
• Automatic safety system stops electrical current if water level falls below the minimum threshold, protecting heating elements.
• High-performance stainless steel heating element positioned outside the well within a combustion chamber, transferring heat to both the base and sides of the well up to the minimum fill level for efficient, even water heating.
• IPX5 grade water protection across the entire machine.
• Controls mounted on a protective support base with a system engineered to prevent water infiltration into electrical components.
• All internal components accessible from the front of the unit for straightforward servicing.
• Stainless steel legs with adjustable feet to accommodate uneven floor surfaces.
• Includes 3 pasta baskets.
• Rated at 12 kW, 415 V, three-phase supply.
• 2 years parts and labour warranty plus an additional 2 years parts-only warranty when the product is registered within 14 days of invoice.

Specifications

• Width (mm): 400
• Depth (mm): 730
• Height (mm): 850
• Weight (kg): 65
• Packed Width (mm): 822
• Packed Depth (mm): 440
• Packed Height (mm): 1255
• Power Delivery: 415V, 12kW/3~N
• Power (kW): 415
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
