Asber GEX-H500BDD Easy Line Pass-Through Dishwashers

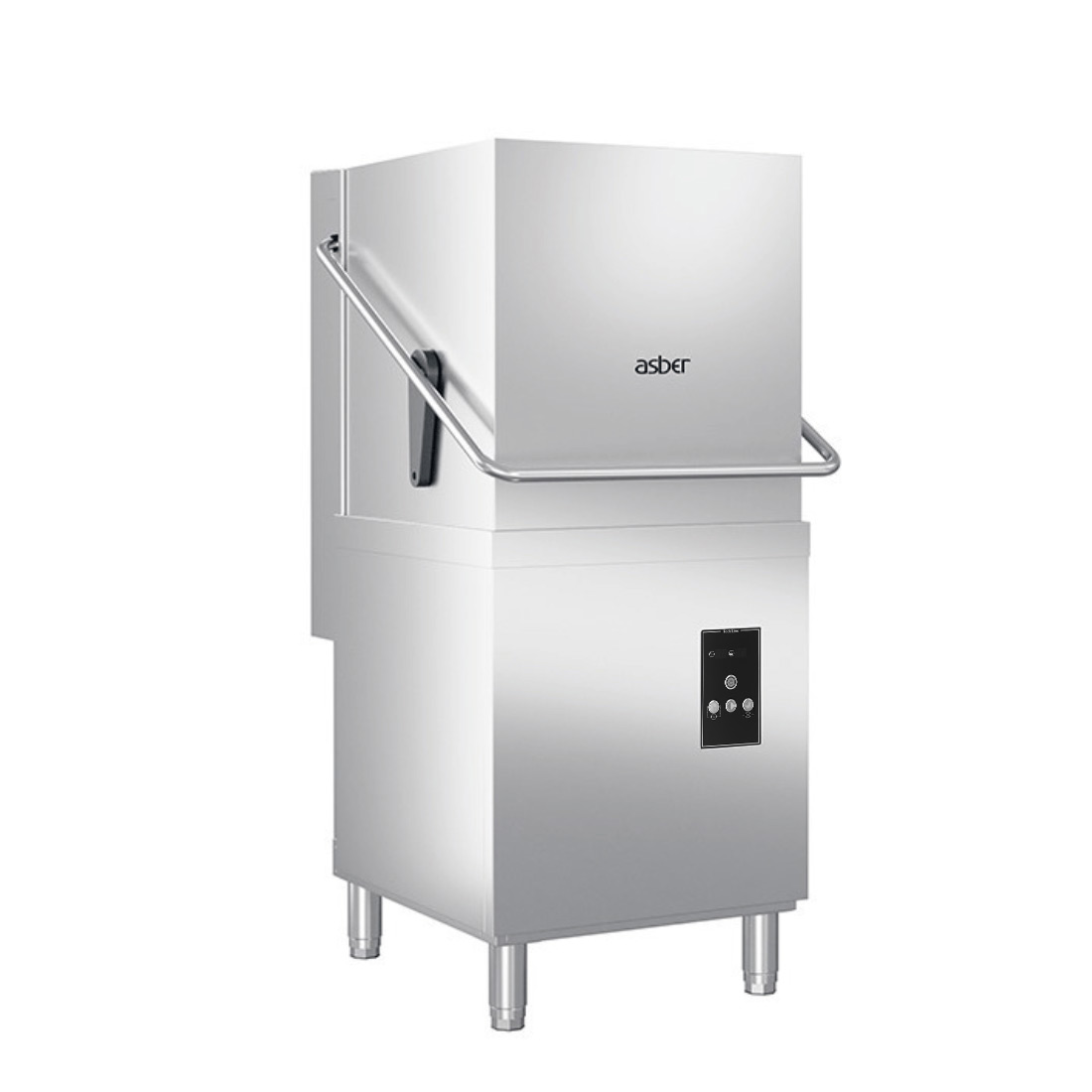

Asber GEX-H500BDD Easy Line Pass-Through Dishwasher

The Asber GEX-H500BDD is a commercial hood-type pass-through dishwasher from the Easy Line range, purpose-built for busy kitchens requiring fast and dependable warewashing of plates, cutlery, trays and utensils. The machine can process as many as 40 baskets every hour, and operators may choose between two wash cycle durations of 90 seconds or 180 seconds to suit varying load demands throughout service. A continuous cycle mode keeps washing running until manually stopped, with a maximum duration of 600 seconds, making the GEX-H500BDD well suited to high-volume restaurants, cafes, hotels, aged care facilities and catering operations.

Constructed from heavy-duty stainless steel with a corrosion-resistant body, the GEX-H500BDD is engineered for long-term durability in demanding foodservice environments. Dedicated stainless steel wash and rinse arms are positioned above and below each basket to deliver even water distribution throughout every cycle. The machine incorporates its own drain pump, an on-board detergent dosing unit and a rinse aid dosing unit, all of which reduce plumbing complexity and speed up installation. Adjustable boiler heating power via the Multi-Power function adds further flexibility for sites with differing electrical supply configurations, and three baskets are included in the box so the machine is ready to operate from day one.

Key Benefits

• Capable of washing as many as 40 baskets per hour, keeping pace with busy service periods and reducing warewashing bottlenecks.
• A choice of two cycle lengths — 90 seconds and 180 seconds — alongside a continuous cycle mode allows operators to match wash time to load size and soil level.
• Wash temperature held at approximately 60°C and rinse temperature at approximately 85°C deliver hygienic sanitisation that meets commercial food safety requirements.
• Adjustable boiler heating power (Multi-Power) provides flexibility for sites with different electrical supply configurations.
• An integrated drain pump, an on-board detergent dispenser and a dedicated rinse aid dispenser reduce plumbing complexity and speed up installation.
• Low rinse water consumption of 2.6 L per rinse cycle helps control water and chemical costs during high-volume use.
• Stainless steel body and components resist corrosion and are straightforward to clean, supporting food-safe kitchen hygiene routines.
• Three baskets included in the box — plate basket CP-16/18, general basket CT-10 and cutlery basket CU-7 — mean the machine is ready to run from day one.

Key Features

• Electromechanical control panel for straightforward, reliable operation
• Two selectable wash cycle durations: 90 seconds and 180 seconds
• Continuous cycle mode with manual stop; maximum duration 600 seconds

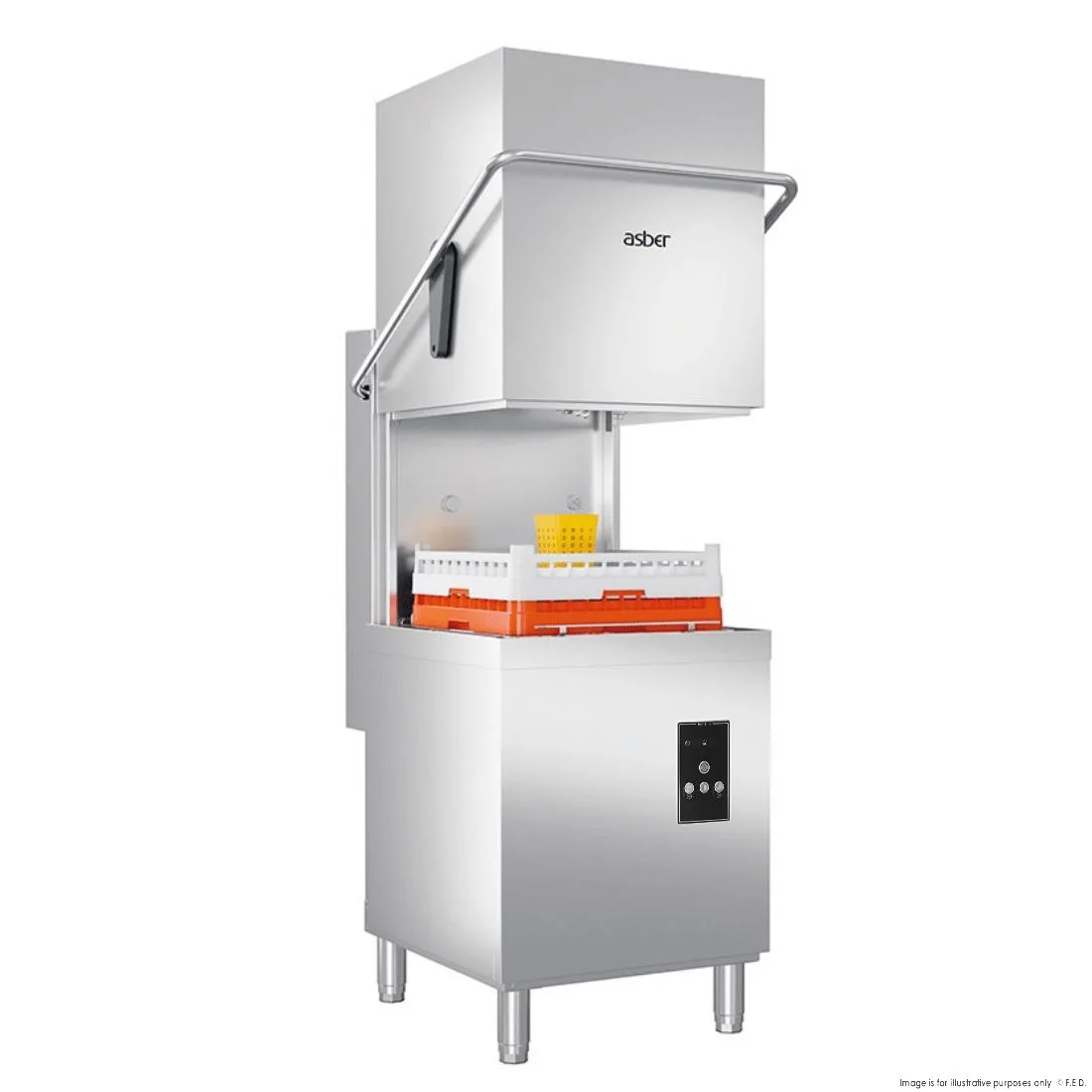

• Pass-through hood-type design to support ergonomic loading and unloading and improve kitchen workflow
• Stainless steel wash and rinse arms mounted at both the top and bottom of the wash chamber for even water distribution and thorough cleaning
• Wash temperature approximately 60°C; rinse temperature approximately 85°C for hygienic sanitisation
• On-board detergent dosing dispenser
• On-board rinse aid dosing dispenser
• Integrated drain pump system
• Anti-backflow valve fitted as standard
• Composite material tank filter
• Single skin hood construction
• Safety thermostat located in both the wash tank and boiler
• Adjustable boiler heating power (Multi-Power) for flexible electrical installation
• Hot water connection required
• Heavy-duty stainless steel body for corrosion resistance and durability
• Supplied with three baskets: 1 x plate basket CP-16/18, 1 x basket CT-10, 1 x cutlery basket CU-7
• 2 years parts and labour warranty

Specifications

• Width (mm): 630
• Depth (mm): 750
• Height (mm): 1482
• Weight (kg): 61
• Packed Width (mm): 775
• Packed Depth (mm): 880
• Packed Height (mm): 1650
• Power Delivery: 240V, 3.6kW/15A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour
